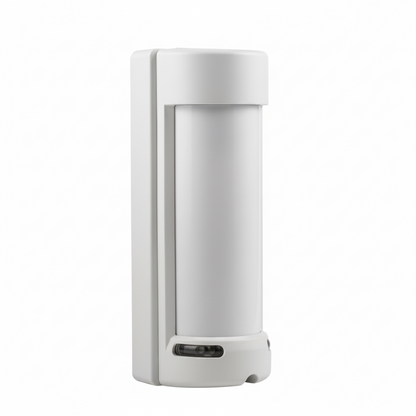

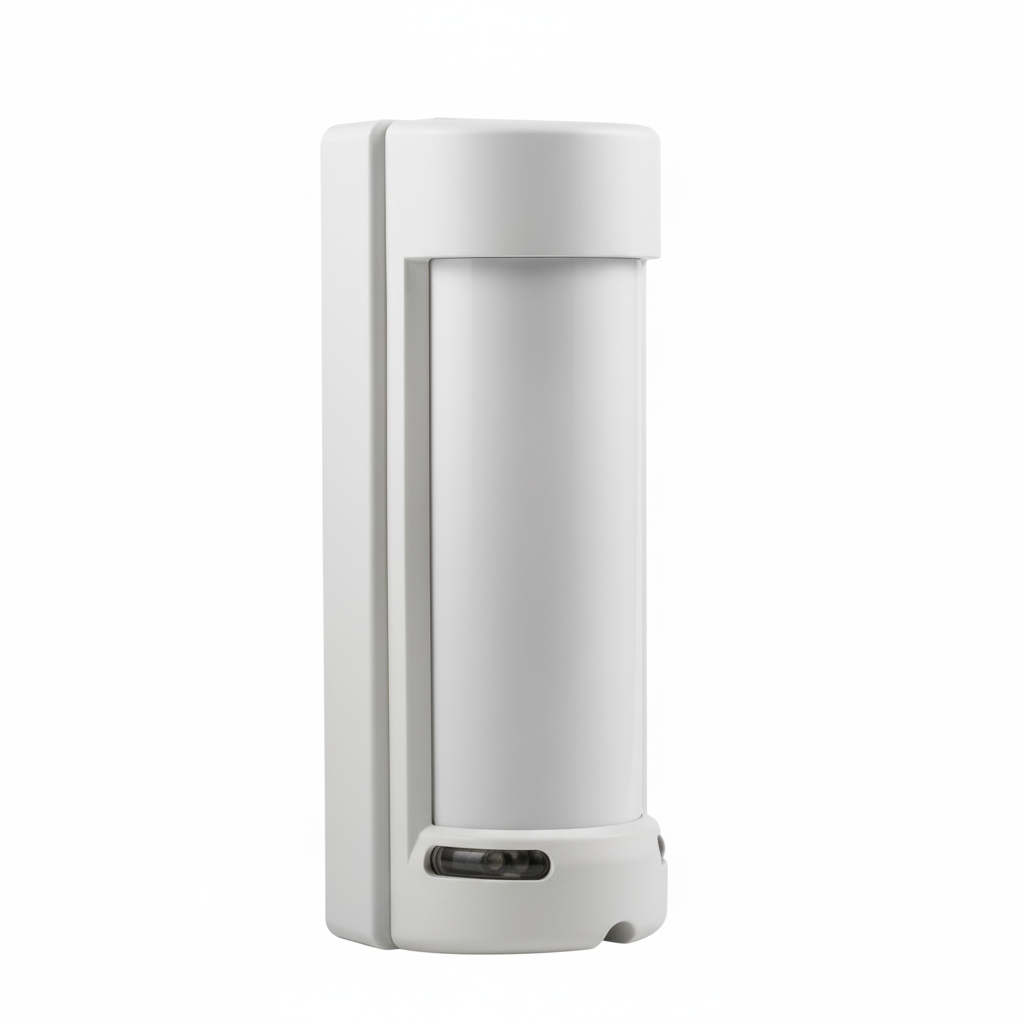

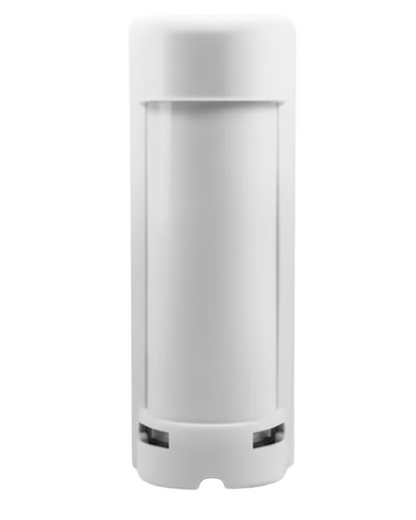

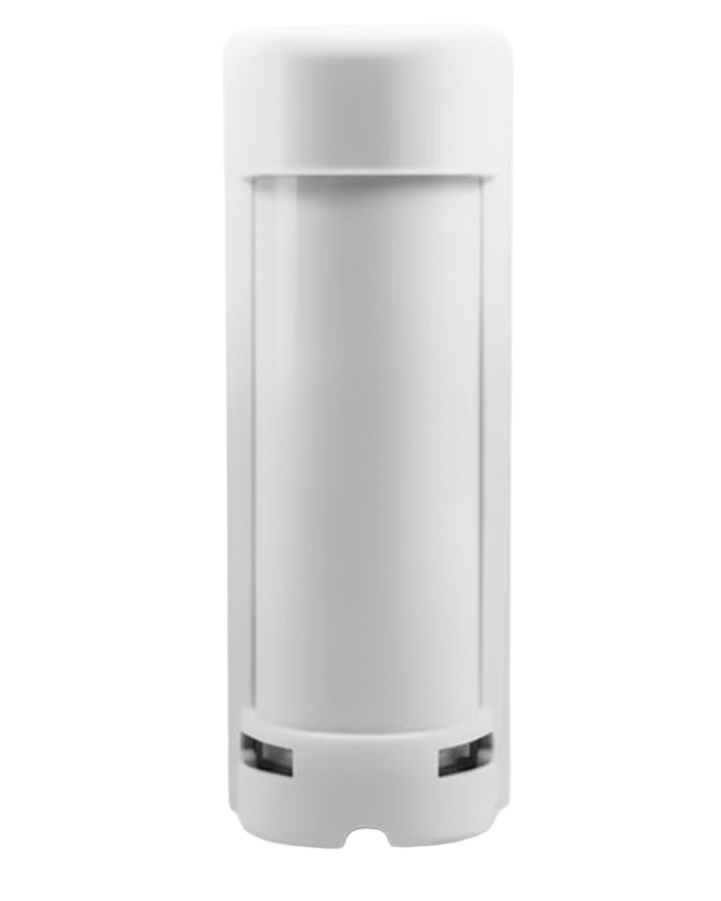

Takex MX-12FAM Dual-Zone Outdoor PIR with Anti-Masking (12m × 180°)

The Takex MX-12FAM is a high-reliability outdoor passive infrared (PIR) motion detector featuring dual-zone detection across a wide 180° × 12m coverage area. With built-in anti-masking technology (active IR near-lens awareness), it detects attempts to obscure or spray the lens, making it ideal for high-security perimeters, commercial sites, or residential boundaries exposed to tampering risks. Rated IP55 for weather resistance, it's built tough for outdoor use.

Key Features:

• Dual-Zone Detection — Requires simultaneous activation in both horizontal and downward zones to trigger an alarm; significantly reduces false alarms from small animals, pets, or environmental factors
• 180° Wide-Angle Coverage — 12m (40ft) detection range with 180° adjustable field (head rotates for flexible placement; masking plates reduce to narrower angles like 13° if needed)
• Anti-Masking Technology — Active near-lens IR detects blocking, spraying, or covering attempts; separate trouble output for masking alerts
• Two Separate Alarm Outputs — Independent signals for each zone or configurable for different alarm types
• Pulse Count & Sensitivity Adjustment — 1–3 pulse count settings + adjustable sensitivity for fine-tuning to environment
• Tamper Protection — Back cover and front tamper outputs for comprehensive sabotage detection
• Weatherproof Build — IP55 rating; operates in harsh conditions (-25°C to +60°C typical); UV-resistant and impact-tolerant housing
• Dual Alarm Signal Outputs + Trouble Output — Versatile wiring for integration with alarm panels or monitoring systems

Quick Specs:

• Model: MX-12FAM (or similar MX-12FAMD variant with microwave for enhanced dual-tech)
• Detection Type: Dual-zone PIR (passive infrared)
• Coverage: 12m × 180° (adjustable)
• Anti-Masking: Yes (active IR)
• Power: 9–28V DC (low current draw)
• Outputs: 2× Alarm relays + Trouble + Tamper
• IP Rating: IP55
• Operating Temp: -25°C to +60°C (varies slightly by variant)
• Dimensions: Compact outdoor housing (approx. 150–200mm height)
• Extras: Pulse count 1–3, sensitivity adjustment, optional masking plates

This Takex sensor excels at reliable outdoor perimeter protection with advanced anti-masking and wide coverage—perfect for reducing false alarms while catching real threats.
