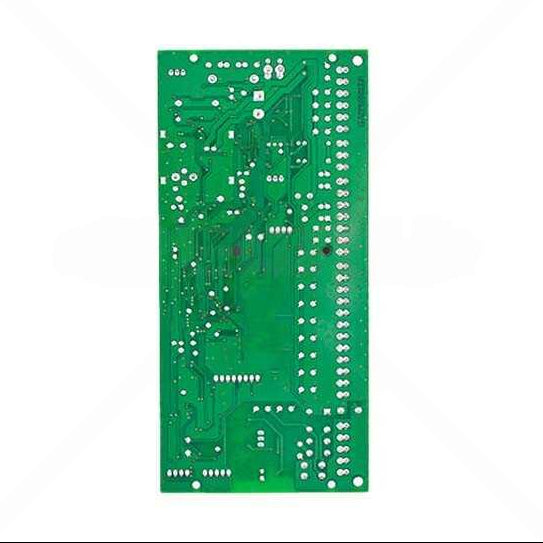

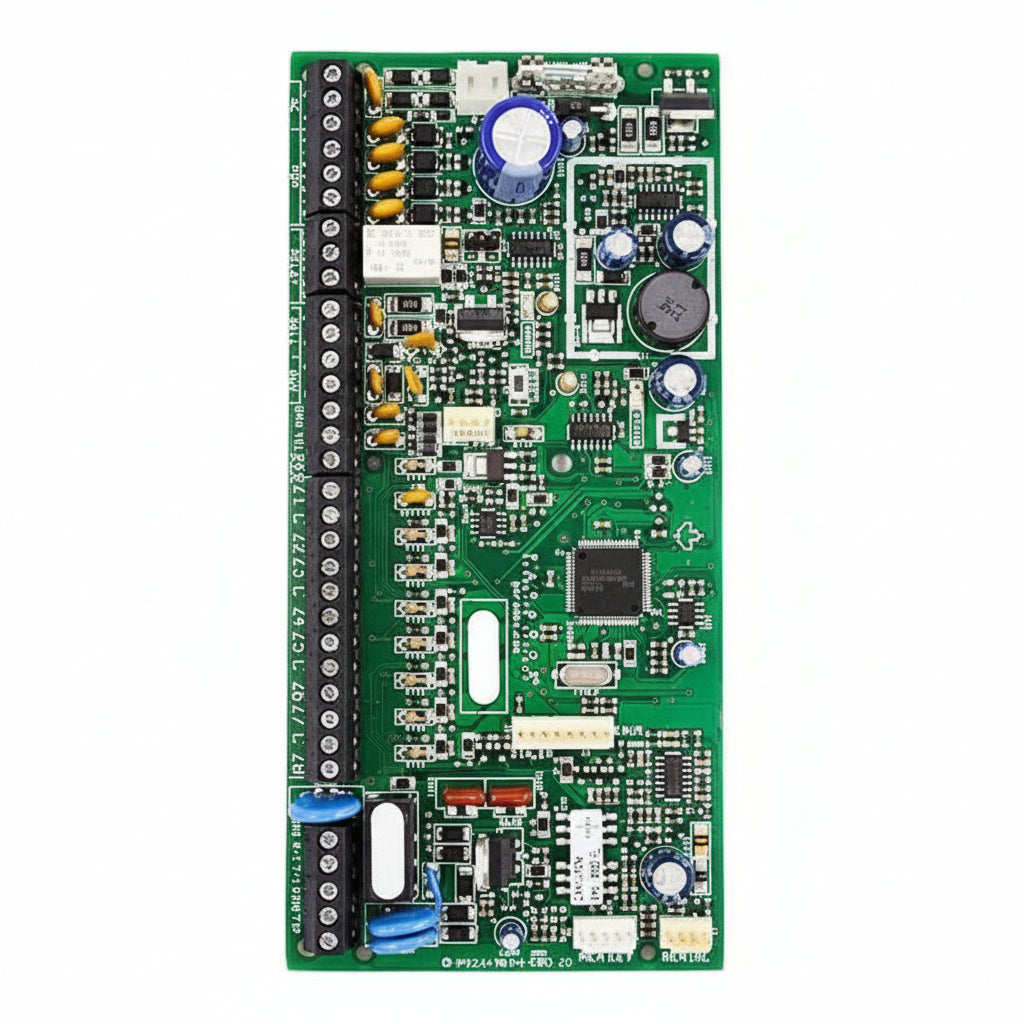

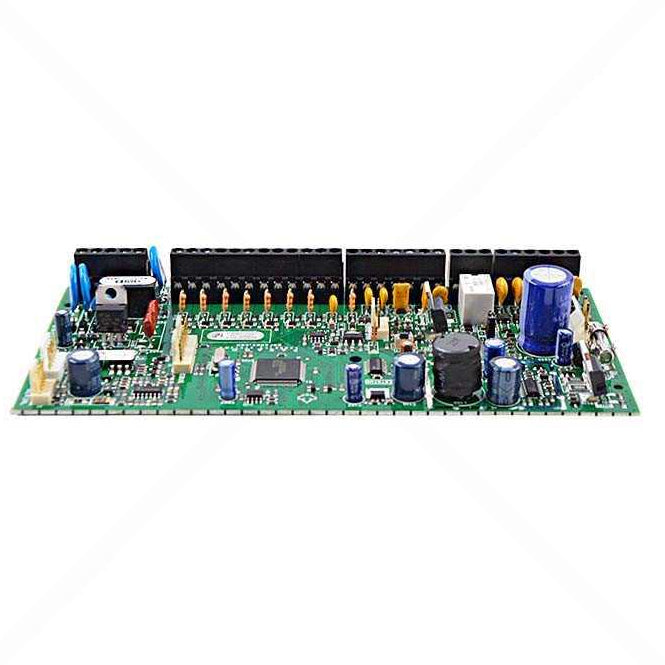

SPECTRA SP6000 8/32 Zone PCB

The Paradox Spectra SP6000 is a reliable, expandable wired control panel PCB (Printed Circuit Board) ideal for residential and small-to-medium commercial installations. It provides a solid foundation for professional-grade intrusion detection systems.

Key Highlights:

• 8 onboard hardwired zones (expandable to 16 with ATZ zone doubling)
• Total expandable up to 32 zones via expansion modules (e.g., ZX8/ZX82 hardwired or RTX3 wireless)
• 2 onboard programmable outputs (PGMs), expandable to 16
• Supports 2 partitions for independent area control
• 32 user codes and StayD mode for flexible, everyday arming without disarming the whole system
• Built-in landline dialer; compatible with IP150, PCS series, or GSM modules for remote monitoring and app control
• 4-wire expansion bus (supports up to 15 keypads and various modules)

Technical Specs:

• Onboard Zones: 8 (16 with ATZ)
• Maximum Zones: 32
• Partitions: 2
• User Codes: 32
• PGMs: 2 onboard (+ expandable)
• Auxiliary Output: Up to 1A (fuseless protection)
• Bell Output: 1A supervised (fuseless shutdown at 3A)
• Power: 16VAC transformer (40VA recommended), 12V backup battery support
• Compatible with K32/K35 keypads, motion detectors, and more

This SP6000 PCB offers excellent scalability, easy programming, and proven reliability from Paradox. Perfect as a standalone board for custom builds or upgrades—pair it with your choice of enclosure, keypad, and sensors. Secure your setup affordably and effectively!
