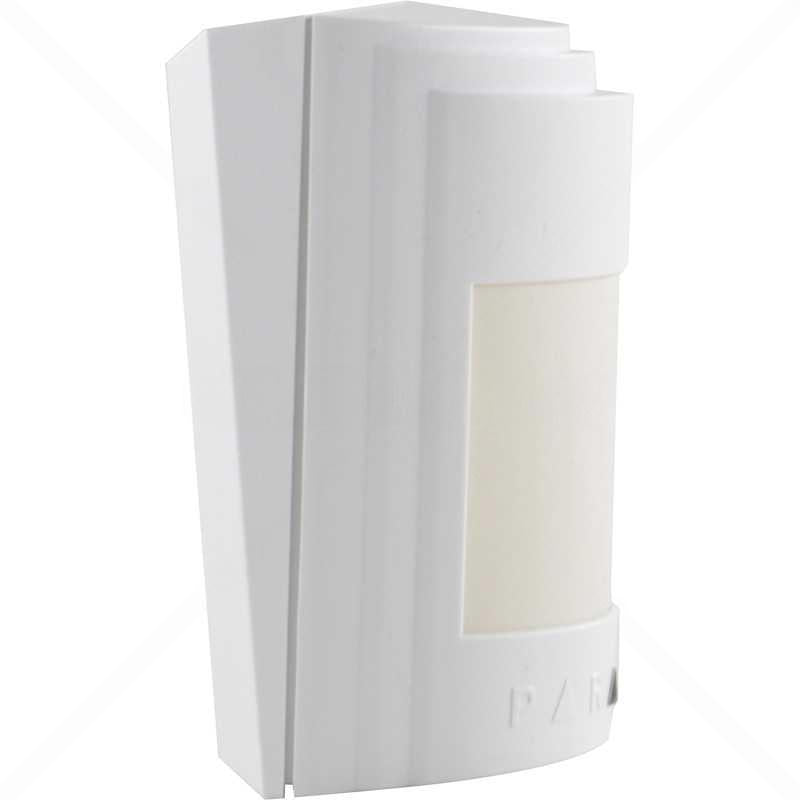

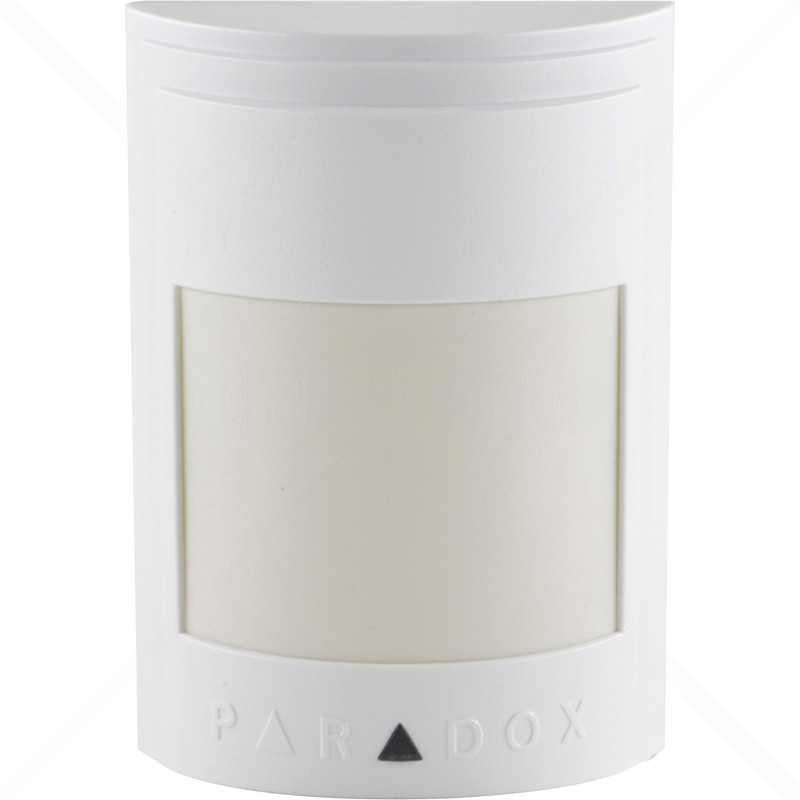

PIR - Paradox 476PET Analog Single Optic 18Kg PA-1082

This reliable wired indoor motion detector from Paradox offers solid pet-immune performance for homes or offices with small to medium pets. The 476PET uses an analog single-optic design with a dual-element sensor and patented Auto-Pulse Signal Processing to detect human movement accurately while ignoring animals up to 18kg (40lb)—great for reducing false alarms in pet-friendly environments.

Key Features:

• Pet Immunity — Immune to animals/pets weighing up to 18kg (40lb); higher immunity possible when pets are not constantly in the detection area
• Wide Coverage — 11m × 11m (35ft × 35ft) area with 88.5° viewing angle; center beams extend up to 15m (50ft)
• High Interference Rejection — Extremely high EMI and RFI immunity with metal shield for stable operation
• Automatic Temperature Compensation — Maintains consistent detection across varying indoor temperatures
• Solid-State Relay Output — Reliable, long-life alarm relay (Form A, NC)
• Anti-Tamper Switch — Built-in protection against cover removal or tampering
• Adjustable Lens Position — 0° or 10° tilt for optimized aiming
• Mounting Flexibility — Wall or corner mount; compatible with SB469 swivel bracket for precise positioning
• Easy Integration — Works with Paradox Spectra SP (e.g., SP6000), Digiplex EVO, and most standard wired alarm panels

Quick Specs:

• Model: 476PET (PA-1082)
• Type: Hardwired analog single-optic PIR
• Detection Range: 11m × 11m (35ft × 35ft) @ 88.5°; up to 15m center
• Pet Immunity: Up to 18kg (40lb)
• Power: 9–16VDC (typically 12V from panel, low current draw)
• Alarm Output: Solid-state relay (NC, 100mA/28VDC typical)
• Tamper: NC switch
• Operating Temp: -20°C to +50°C (-4°F to +122°F)
• Extras: Surface-mount components, LED alarm indicator (programmable)

Ideal for straightforward indoor protection where pets roam freely—combines affordability, reliability, and effective false-alarm reduction. Pairs perfectly with your Paradox wired setups. Order the Paradox 476PET Analog Single-Optic PIR PA-1082 today!
