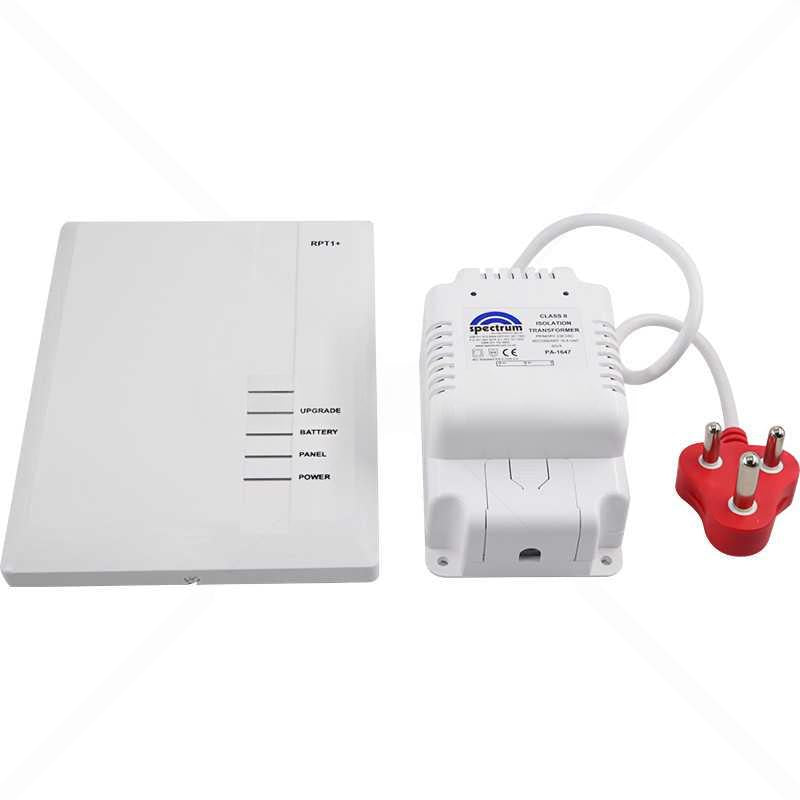

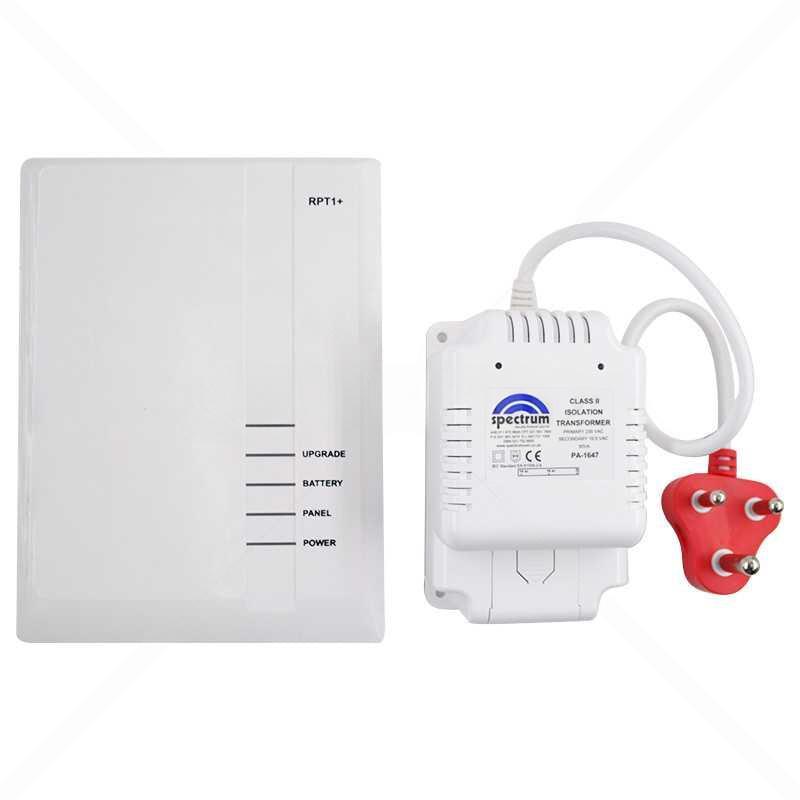

Paradox Wireless Repeater 433MHz PCB and Transformer Only (RPT1+ Variant)

Extend the wireless range of your Paradox Magellan or Spectra SP security system with this essential repeater solution. This kit includes the RPT1+ (or equivalent) repeater PCB and a 16VAC transformer—perfect for custom installs where you already have an enclosure, battery, or need to add range-boosting capability without extras. The built-in 433MHz transceiver retransmits signals from zones, PGMs, keypads, and remotes for reliable coverage in larger homes or challenging environments.

Key Features:

• Built-in 433MHz Transceiver — Extends wireless communication range for all Magellan transmitters (including two-way devices) and RTX3-equipped Spectra SP panels
• Selectable Signal Repeating — Choose which zone, PGM, keypad, and remote control signals are repeated for optimized performance
• Signal Strength Display — LEDs or programming feedback show RF signal quality for easy placement
• RF Jamming Supervision — Detects and reports jamming attempts for enhanced security
• Universal Input — N.O./N.C. input for additional wired device integration
• Programmable 5A Relay Output — One onboard relay for custom triggers (e.g., sirens, lights)
• In-Field Firmware Upgradable — Via 307USB for future-proofing
• Multiple Units Supported — Up to 2 repeaters per system for even greater coverage

Quick Specs:

• Model/Reference: RPT1+ (433MHz version; often bundled as PA9825 or similar for PCB/transformer kits)
• Frequency: 433MHz
• Wireless Range Extension: Typical residential boost to ~75m (240ft) from panel/transceiver (environment-dependent)
• Power Input: 16VAC transformer (included); supports 12–24VAC/DC options in full setups
• Consumption: Low standby; higher during transmission
• Connection: Bus-powered or standalone with transformer
• Operating Temp: -20°C to +50°C (-4°F to +122°F) typical
• Compatibility: Magellan MG series (MG5000, MG5050, MG6130, MG6160, MG6250), Spectra SP series (SP5500+, SP6000+, SP7000+ with RTX3), and related wireless accessories
• Extras: Note—wireless sirens may not be compatible; all remote control signals are always repeated

This PCB + transformer package is ideal for installers building custom repeater setups—add your own metal enclosure and 12V battery for a complete solution. Boost signal reliability in weak-coverage areas effortlessly.
