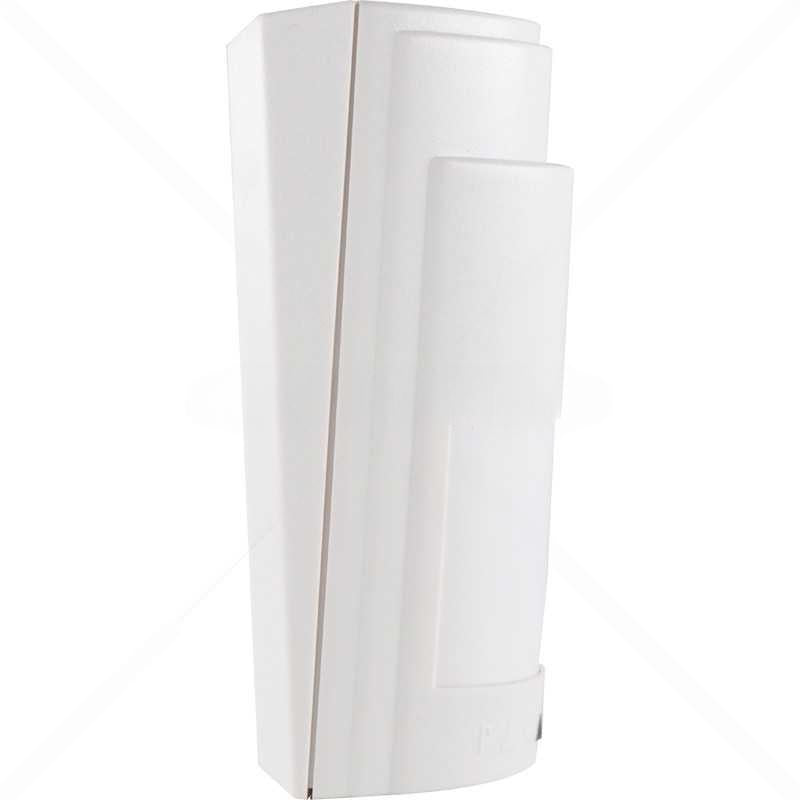

Paradox PIR Wireless MG-PMD2 Analoge PA-3702

The Paradox MG-PMD2 (PA-3702) is a compact, reliable wireless analog PIR motion detector designed for indoor use in Paradox Magellan MG wireless security systems. It provides dependable human motion detection with good false-alarm resistance—ideal for living rooms, hallways, bedrooms, or entry areas in homes or small businesses.

Key Features:

• Analog Single-Optic Detection — Single dual-element PIR sensor with patented Auto-Pulse Signal Processing for accurate catch and reduced false triggers from temperature changes or drafts
• Wide Coverage — 12m × 12m (40ft × 40ft) detection area with 110° viewing angle; center beams extend up to 15m (49ft)
• Automatic Temperature Compensation — Maintains consistent sensitivity across varying indoor temperatures
• LED Indicator — Programmable alarm LED (on/off); flashes during detection or power-up self-test
• Anti-Tamper Switch — Built-in protection against cover removal or tampering
• Wireless & Supervised — 2-way communication (433MHz or 868MHz variants); supervised transmission with low-battery and tamper alerts
• Pet Immunity — Not pet-immune in standard model (consider PMD75 or similar for pet versions up to 40kg)
• Easy Enrollment — Quick wireless learning into Magellan MG panels (MG5000, MG5050, etc.) or Spectra SP with RTX3 transceiver
• Battery Life — Long-lasting on 3 × AAA alkaline batteries (typically 2–3 years depending on activity)

Quick Specs:

• Model: MG-PMD2 (PA-3702)
• Frequency: 433MHz (common; 868MHz variants available—confirm panel match)
• Detection Range: 12m × 12m (40ft × 40ft) @ 110°
• Power: 3 × AAA alkaline batteries
• Wireless Range: 35–70m (115–230ft) indoor typical with MG panels/RTX3
• Operating Temp: 0°C to +50°C (32°F to +122°F)
• Installation Height: Recommended 2.1–2.7m (7–9ft)
• Dimensions: Compact (approx. 110 × 60 × 45 mm)
• Compatibility: Magellan MG series (MG5000, MG5050, etc.), Spectra SP series (with RTX3 transceiver)
• Extras: Adjustable lens position (0° or 10° tilt), Fresnel lens (LODIFF® segments)

This straightforward wireless PIR is a cost-effective, proven choice for basic indoor motion detection in Magellan setups—simple to install and dependable for everyday protection.
