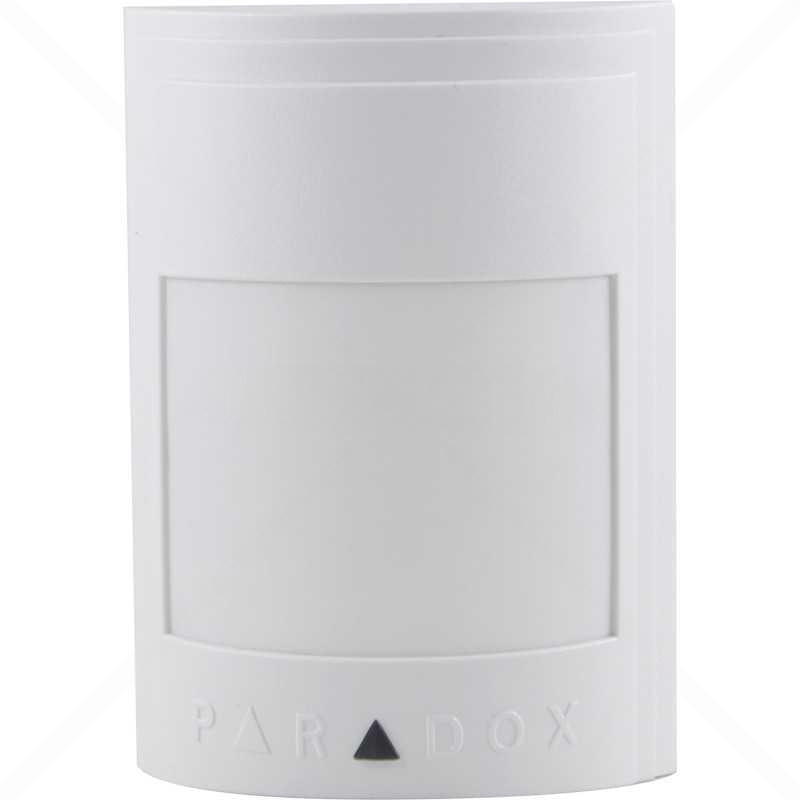

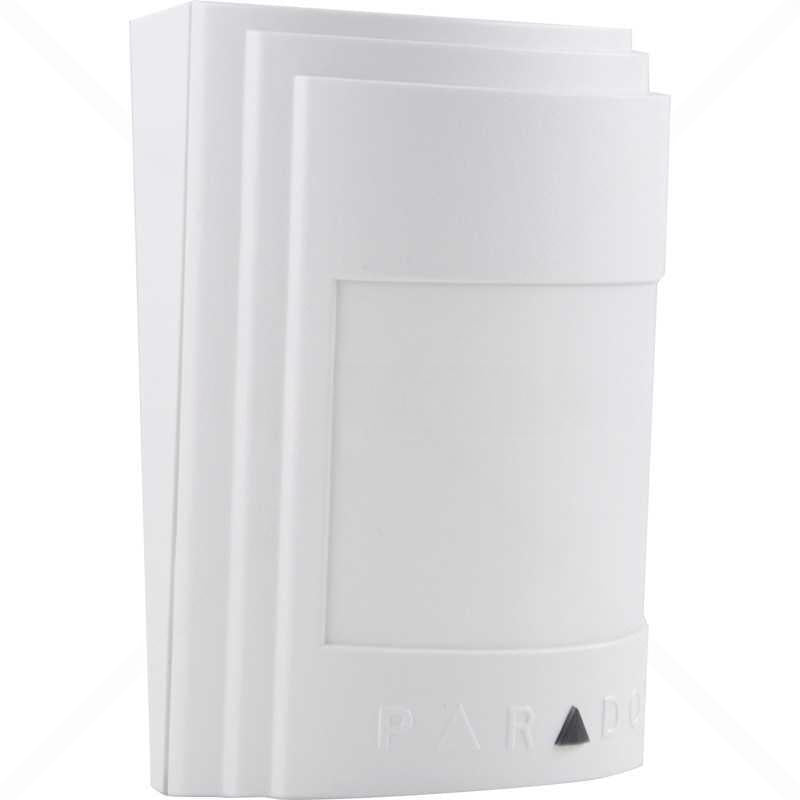

Paradox PIR Pro 12m (476+) PA1081 Wired Indoor Motion Detector

This robust, hardwired indoor PIR motion detector from Paradox's PRO series (often labeled as 476+ or PRO476) delivers dependable human motion detection with excellent interference rejection—ideal for residential hallways, living areas, or commercial spaces in Spectra SP, Digiplex EVO, or any standard wired alarm system.

Key Features:

• Solid-State Relay Output — Reliable, long-lasting alarm triggering (no mechanical contacts to wear out)
• Wide Coverage — 11m × 11m (35ft × 35ft) detection area with 110° viewing angle
• High Interference Immunity — Extremely resistant to EMI and RFI; metal shield maximizes protection from electrical noise
• Surface-Mount PCB Design — Uses only high-density surface-mount components for durability and stability
• Patented Auto Pulse Signal Processing — Advanced analog processing reduces false alarms from environmental changes
• Automatic Temperature Compensation — Consistent performance across varying indoor temperatures
• Anti-Tamper Switch — Built-in protection against cover removal or tampering
• Mounting Flexibility — Wall or corner mount; compatible with SB469 swivel bracket for precise aiming

Quick Specs:

• Model: 476+ / PRO476 (PA1081 reference)
• Type: Hardwired analog single-optic PIR
• Detection Range: 11m × 11m (35ft × 35ft) @ 110°
• Power: 9–16VDC (typically 12V from panel, low current draw)
• Alarm Output: Solid-state relay (NC typical)
• Tamper: NC switch
• Operating Temp: -20°C to +50°C (-4°F to +122°F) typical
• Installation Height: Recommended ~2.1–2.7m (7–9ft)
• Compatibility: Paradox Spectra SP (e.g., SP6000), Digiplex EVO, Magellan MG, and most wired panels
• Extras: No pet immunity in standard 476+ model (consider 476PET variant for up to 18kg pet tolerance)

This dependable, no-frills PIR offers professional-grade reliability and false-alarm resistance at an accessible price—perfect for expanding your wired setup with accurate indoor coverage. Easy integration and proven performance.
