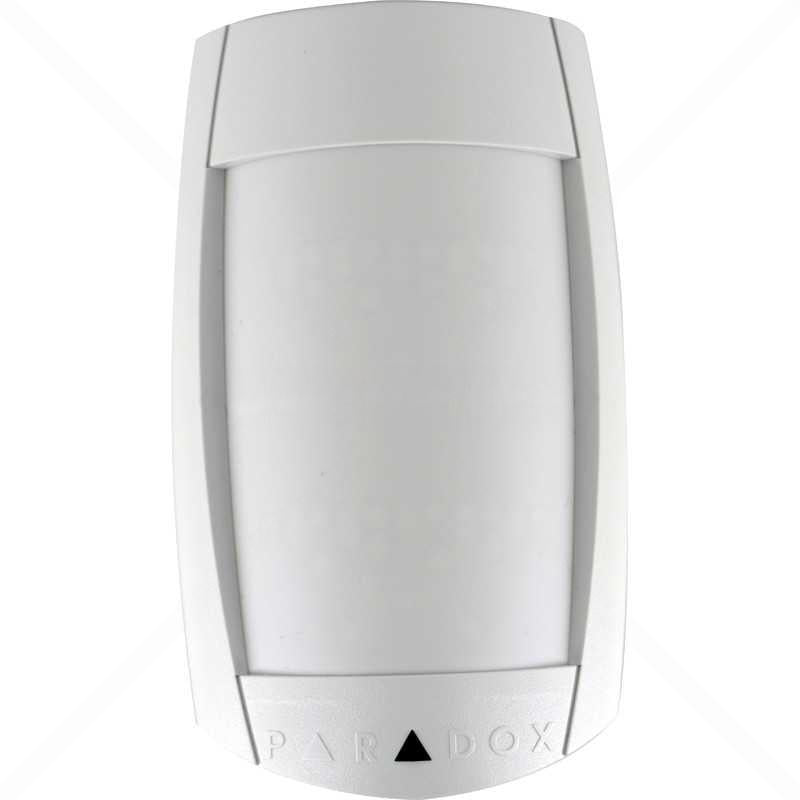

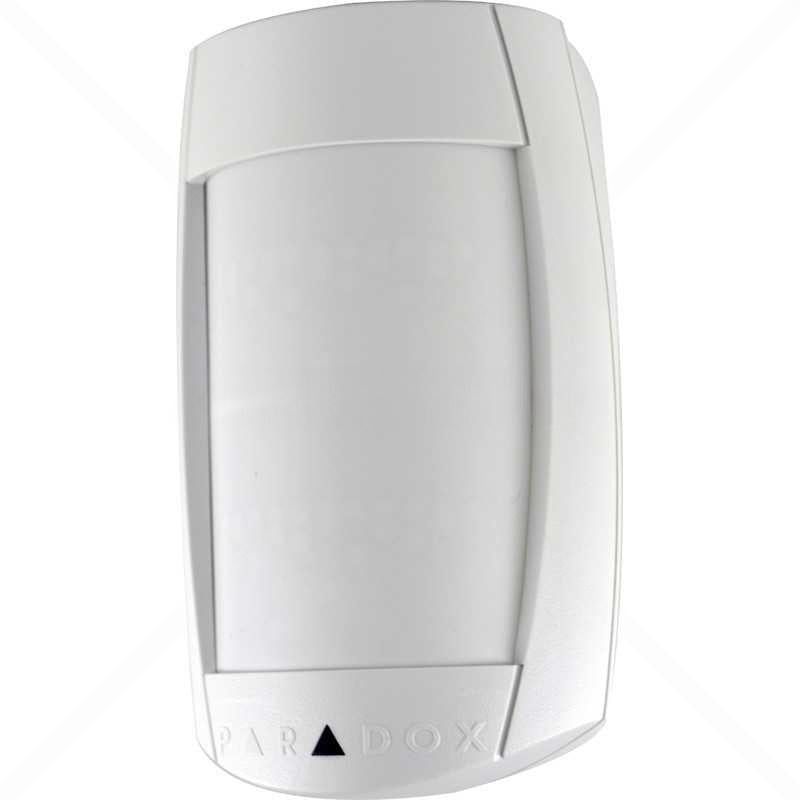

Paradox PIR PMD75 Wireless Digital Pet 40kg PA-3704

This compact, high-performance wireless indoor motion detector from Paradox delivers reliable human detection with excellent pet immunity, minimizing false alarms in pet-friendly homes or offices. The PMD75 (PA-3704) uses patented digital processing and dual-optic technology for superior accuracy—ideal for living rooms, hallways, or entry areas when integrated with Paradox Magellan MG or Spectra SP wireless systems.

Key Features:

• Dual-Optic Digital Detection — Two dual-opposed element sensors with patented Digital Motion Detection and Digital Dual Opposed Detection for precise, stable performance
• True Pet Immunity — Immune to animals/pets weighing up to 40kg (90lb); allows large pets or multiple smaller ones to move freely without triggering alarms
• Digital Shield Algorithm — Adjustable sensitivity (Normal/High Shield modes) for enhanced false-alarm rejection in challenging environments
• Wide Coverage — 11m × 11m (35ft × 35ft) area with 90° viewing angle; center beams up to 15m (49ft)
• Automatic Temperature Compensation — Consistent detection across temperature variations
• Single/Dual Edge Processing — Selectable modes for optimal balance between detection and interference rejection
• Supervised Wireless — 2-way communication, low-battery/tamper supervision, easy enrollment
• Energy Efficient — 3-minute power-save mode after multiple detections; long battery life (up to 3 years typical on 3 × AAA alkaline batteries)
• LED Indicator — Programmable alarm LED (enabled/disabled) for visual feedback
• Mounting Flexibility — Wall or corner mount; compatible with swivel brackets for precise aiming

Quick Specs:

• Model: PMD75 (PA-3704)
• Frequency: 433MHz (common; some variants 868MHz—confirm panel compatibility)
• Detection Range: 11m × 11m (35ft × 35ft) @ 90°
• Pet Immunity: Up to 40kg (90lb)
• Power: 3 × AAA alkaline batteries (4.5VDC)
• Wireless Range: 35m (115ft) with MG6250; up to 70m (230ft) with MG5000/MG5050/RTX3 (typical residential)
• Operating Temp: 0°C to +50°C (32°F to +122°F) standard; some sources note wider tolerance
• Installation Height: 2.1m to 2.7m (7ft to 9ft)
• Compatibility: Magellan MG series (MG5000, MG5050, etc.), Spectra SP series (with RTX3 transceiver), and compatible wireless receivers
• Extras: Anti-tamper switch, Fresnel lens (LODIFF®), jumper settings for processing/sensitivity/LED

This indoor wireless PIR combines advanced digital tech with proven pet tolerance for dependable, low-maintenance protection—no wiring required. Simple to enroll and perfect for pet owners seeking reliable motion sensing.
