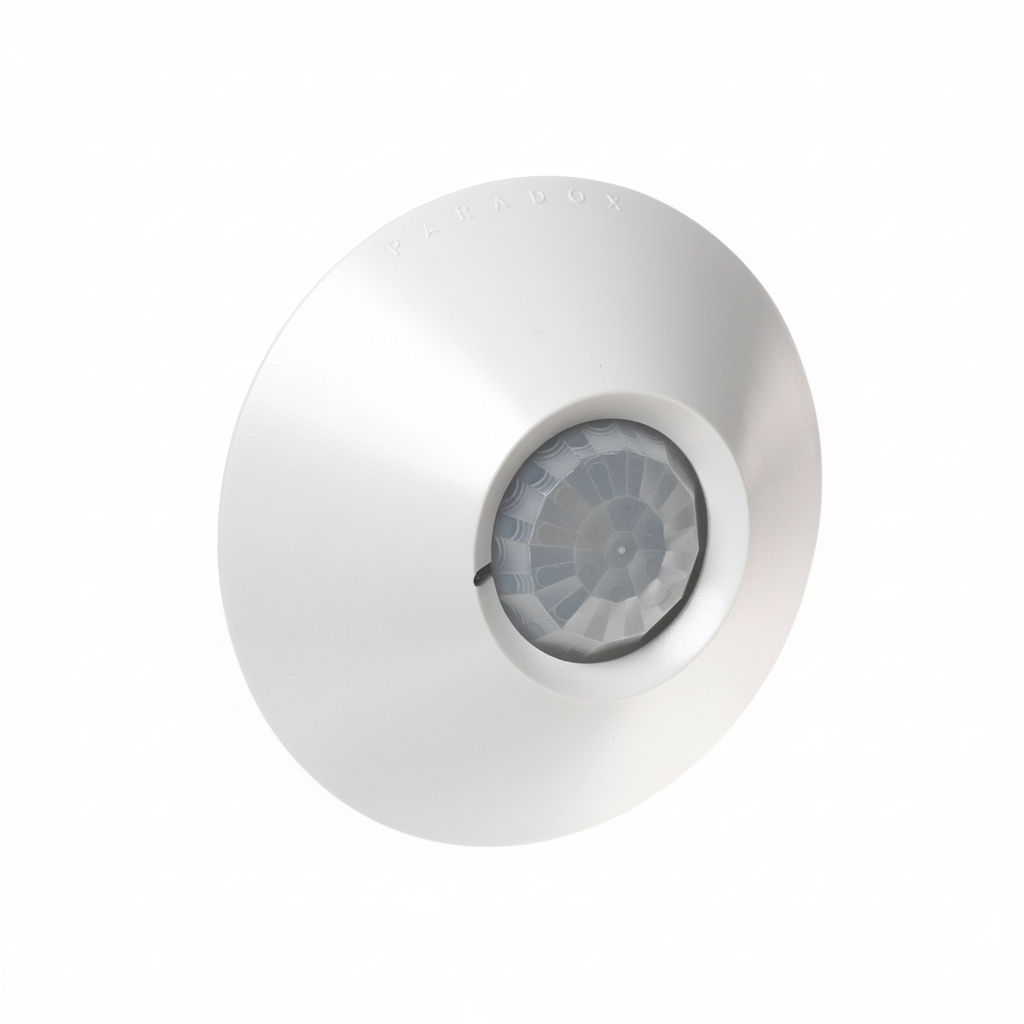

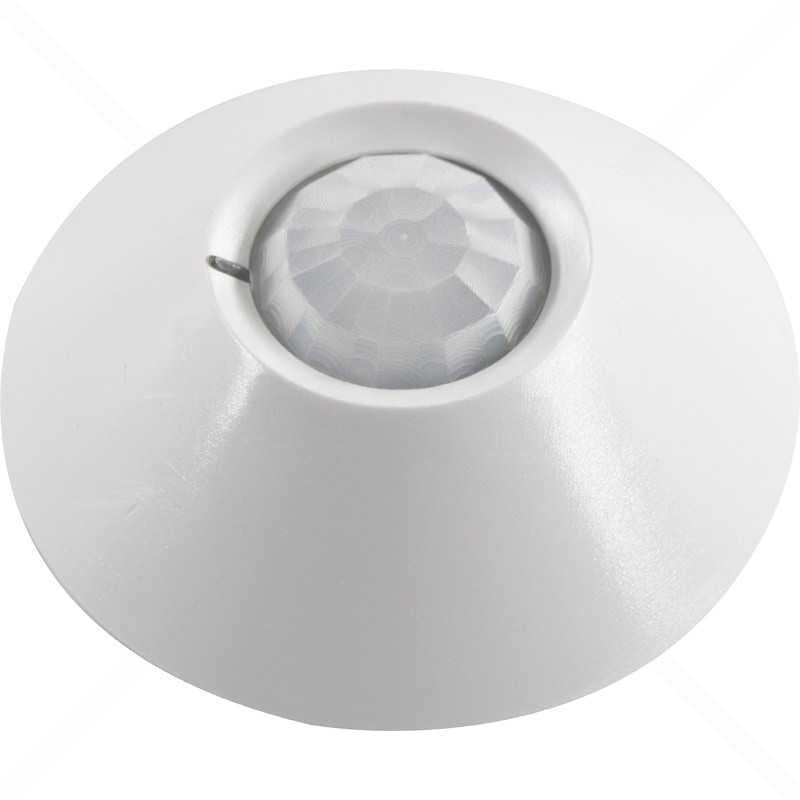

Paradox Paradome 360 DG467 Ceiling Mount PIR PA-1060

This compact, ceiling-mounted digital motion detector from Paradox provides comprehensive 360° coverage for indoor areas like hallways, lobbies, or open rooms—ideal for Spectra SP, Digiplex EVO, or any standard wired alarm system needing full-area surveillance without blind spots.

Key Features:

• 360° Viewing Angle — Complete omnidirectional detection for maximum protection in open spaces
• Dual Opposed Element Sensor — Advanced digital processing with rectangular sensor geometry for accurate motion analysis and reduced false alarms
• Adjustable Coverage — 7m × 6m (24ft × 20ft) at 2.4m (8ft) height; expands to 11m × 6m (35ft × 20ft) at 3.7m (12ft) height
• Two Operational Modes — Addressable/combus mode for Digiplex EVO/Digiplex series (panel supervision & integration); conventional relay mode for standard panels
• Digital Detection — Patented processing with automatic temperature compensation for consistent performance
• High EMI/RFI Rejection — Metal shield and robust design ensure stability in electrically noisy environments
• Easy Ceiling Installation — Simple mount (screws included), Fresnel lens array (LODIFF® segments), tamper protection (cover removal opens tamper circuit)
• No Pet Immunity — Standard model focuses on human detection (consider pet variants for animal tolerance)

Quick Specs:

• Model: DG467 (PA-1060 reference)
• Type: Hardwired ceiling-mounted digital PIR
• Detection Range: 7m × 6m @ 2.4m height; 11m × 6m @ 3.7m height; 360°
• Power: 9–16VDC (max 29mA at 12V from panel)
• Alarm Output: NC relay (0.15A / 28VDC) in relay mode; combus in addressable mode
• Tamper: NC switch (opens on cover removal)
• Operating Temp: -20°C to +50°C (-4°F to +122°F)
• Detection Speed: 0.2m/s to 3.5m/s (0.6ft/s to 11.5ft/s)
• Dimensions: Approx. Ø108mm × 35mm height (4.25in diameter × 1.4in)
• Compatibility: Digiplex EVO series (addressable), Spectra SP, Magellan MG, and most wired panels (relay mode)
• Extras: LED indicator (programmable), easy lens cleaning with soft cloth/alcohol

Perfect for professional indoor ceiling installs where full 360° coverage is essential—reliable, discreet, and easy to integrate. Mount centrally for optimal performance.
