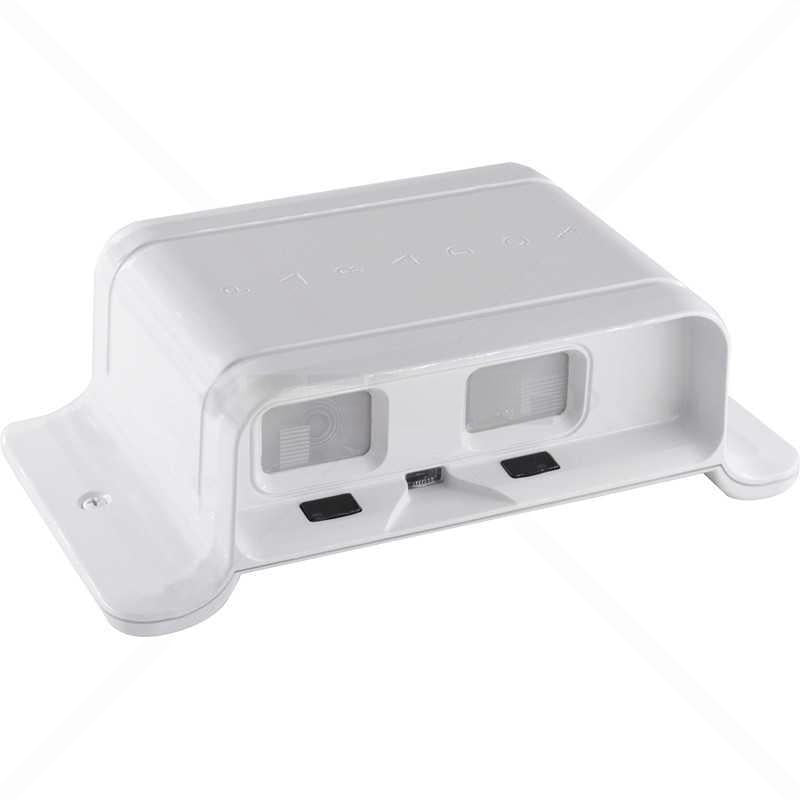

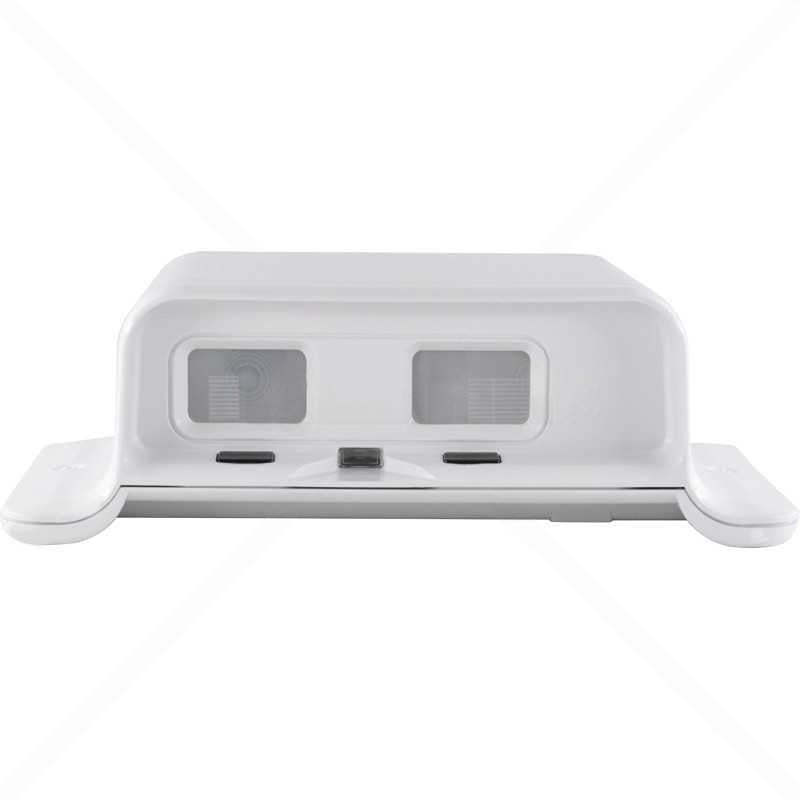

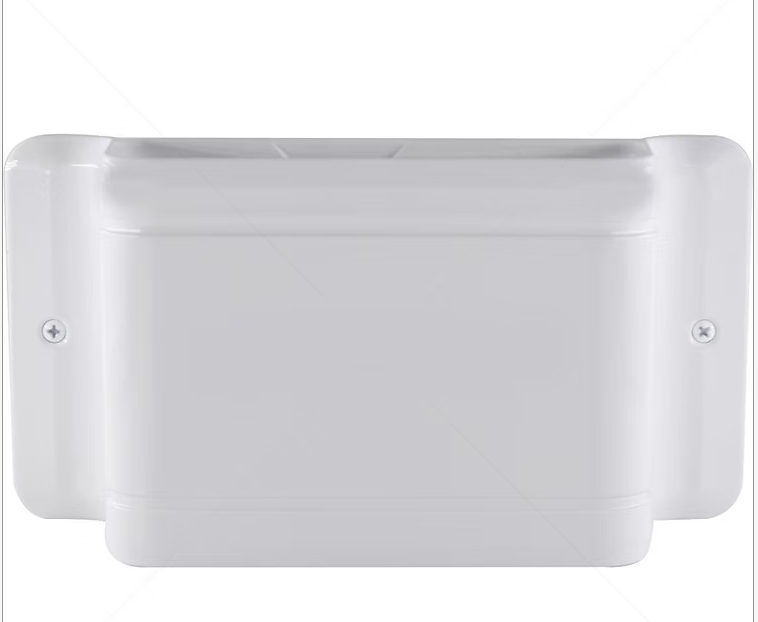

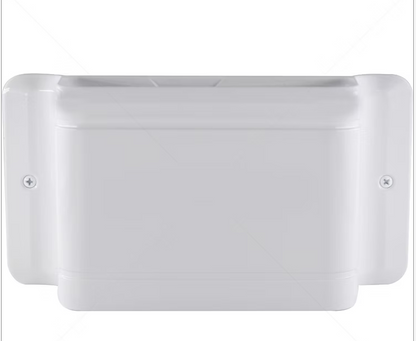

Paradox PIR NVR780MR Dual Wireless OutDoor AM PA3736

This advanced wireless outdoor motion detector from Paradox provides pre-entry boundary protection with dual independent side-by-side views and built-in anti-masking—ideal for securing exterior walls, doors, windows, or perimeters while allowing free movement inside the protected area. The NVR780MR (PA3736) uses 4 dual-element sensors (two per side) for precise detection and excellent false-alarm rejection in harsh outdoor conditions.

Key Features:

• Dual Independent Side Views — Two separate PIR sections (left/right), each covering up to 12m (39ft) for total ~24m (78ft) boundary protection
• Dual Anti-Masking — Active IR on each side detects spraying (liquids), blocking, or masking attempts up to 25cm (10in) away; fast 20-second response
• Pet Immunity — True immunity up to 40kg (90lb) animals/pets
• Configurable Operation — Single mode (both sides report as one zone) or dual mode (each side as separate zone)
• Advanced Optics — High-efficiency long focal point (1.77in) LoDiff® lens + combination mirror/Fresnel for sharp, narrow beams
• Digital Processing — Patented APSP (Auto Pulse Signal Processing) + digital temperature compensation
• Wireless & Supervised — 2-way communication, low-battery/tamper/RF supervision; selectable 433MHz or 868MHz frequency
• Adjustable Settings — Optical/digital range (3m–12m), sensitivity (low/high), horizontal beam angle (0°/20°), LED/buzzer indicators
• Rugged Outdoor Build — Impact/temperature-resistant casing, UV-protected lens, injected rubber gasket seal, wall-mount with built-in level tool
• Battery Life — Up to 3 years (LED/buzzer off) on 3 × AA alkaline batteries

Quick Specs:

• Model: NVR780MR (PA3736 reference)
• Frequency: 433MHz or 868MHz (dip-switch selectable)
• Detection: 2 × 12m (39ft) sides @ 90° typical; adjustable beams
• Pet Immunity: Up to 40kg (90lb)
• Power: 3 × 1.5V AA alkaline batteries
• Wireless Range: Typical 35–70m (115–230ft) indoor/residential with compatible transceivers
• Operating Temp: -35°C to +50°C (-31°F to +122°F) approx.
• Protection: Weather-resistant, anti-tamper (cover/wall)
• Compatibility: Magellan MG series, Spectra SP series (with RTX3 transceiver), and Paradox wireless receivers
• Extras: Dual LEDs (side-specific), buzzer option, anti-mask calibration (up to 40s on power-up)

This detector excels at early outdoor warning without perimeter movement issues—perfect for reliable, wire-free boundary security in demanding environments. Easy enrollment and robust anti-sabotage features.
