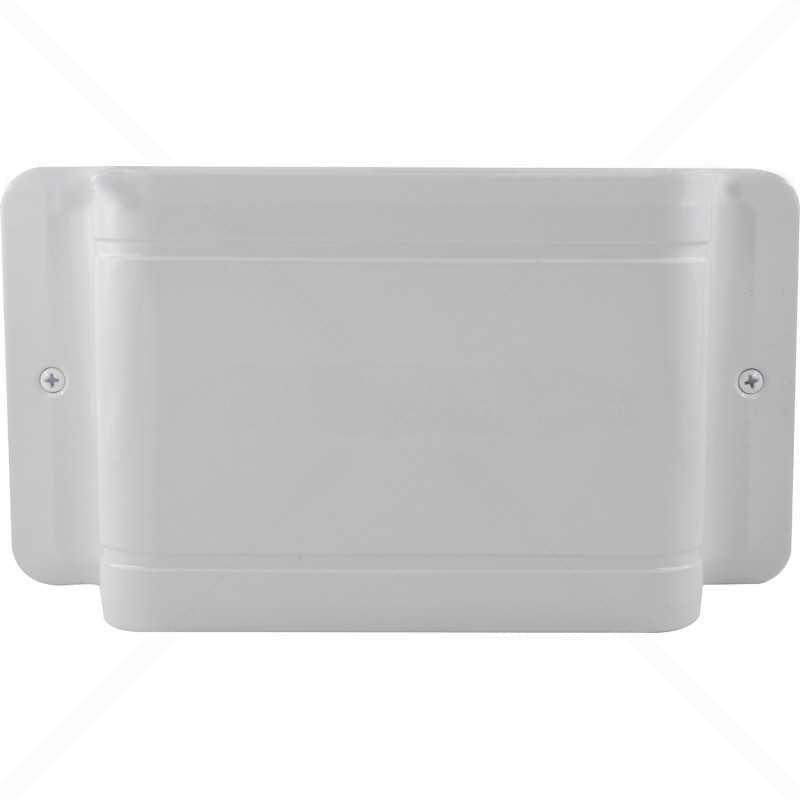

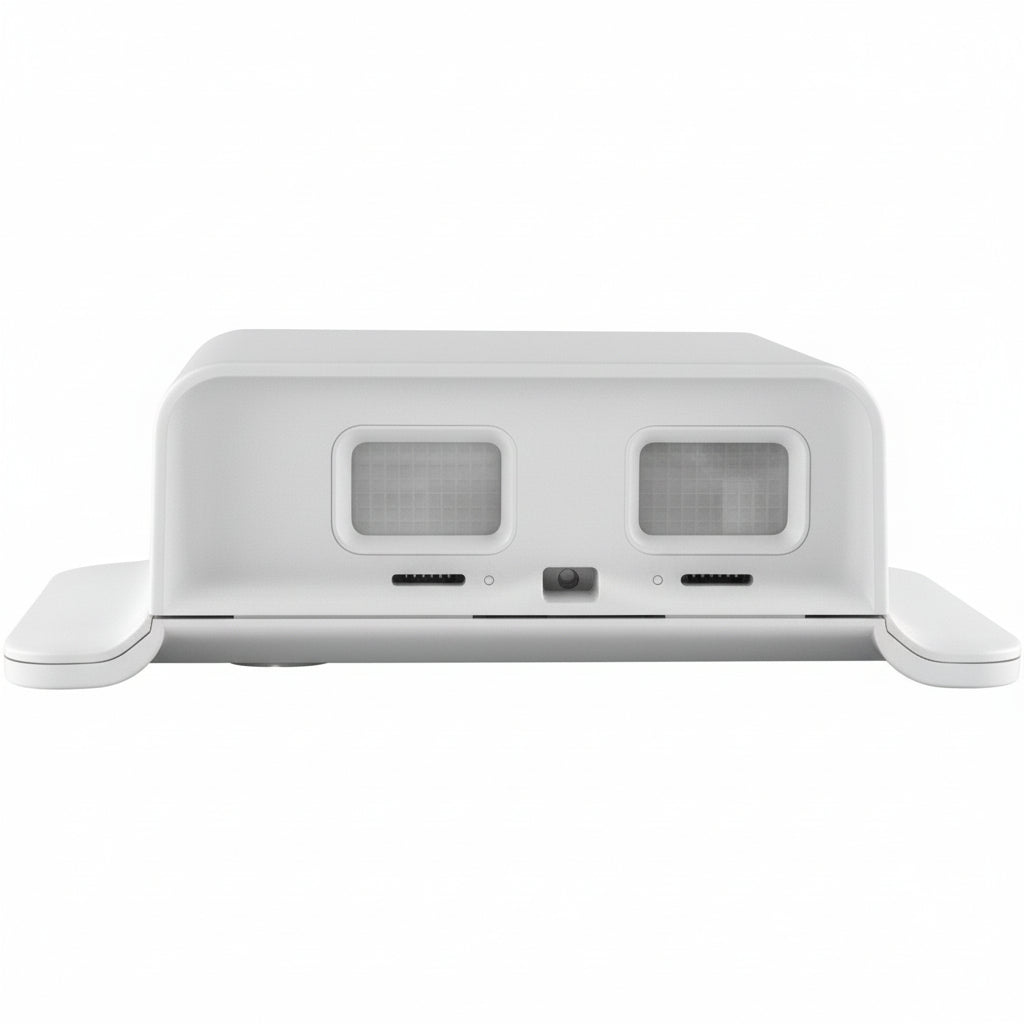

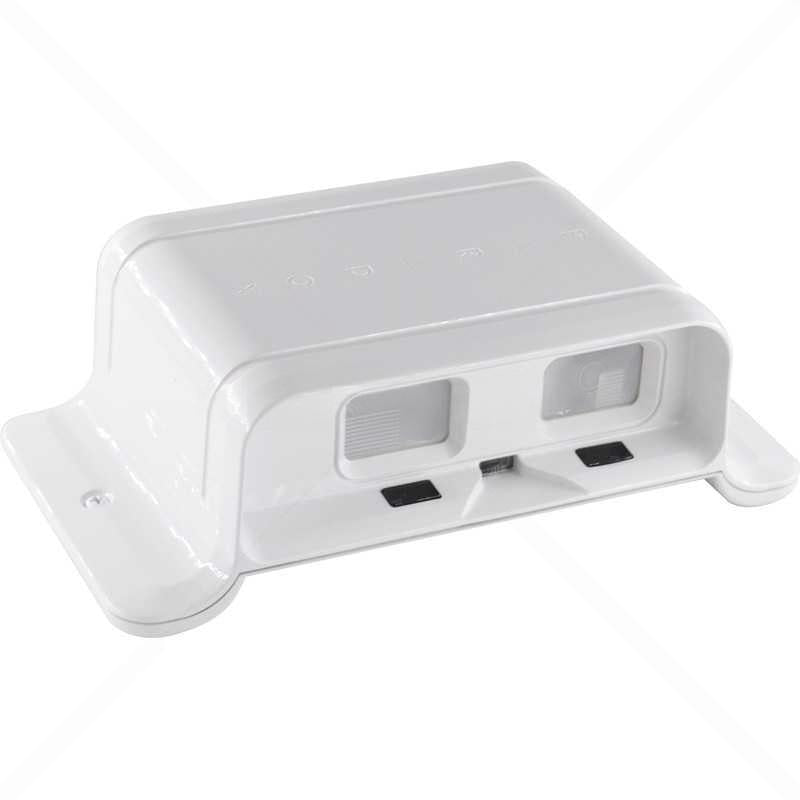

Paradox NV780MX Dual Side-View Outdoor Anti-Mask PIR PA1085

This high-security wired outdoor motion detector from Paradox provides pre-entry boundary protection with dual independent side-by-side views and advanced anti-masking—perfect for safeguarding exterior walls, doors, windows, or perimeters while keeping the protected area free for movement. The NV780MX (PA1085) uses 4 dual-element sensors (two per side) for precise detection and strong false-alarm rejection in tough outdoor conditions.

Key Features:

• Dual Independent Side Views — Two separate PIR sections (left/right), each covering up to 12m (39ft) for total ~24m (78ft) boundary coverage
• Dual Active IR Anti-Masking — Detects blocking, spraying (liquids), or masking attempts up to 25–30cm away on each side; fast 20-second response time
• Pet Immunity — True immunity to animals/pets up to 40kg (90lb); allows large pets or multiple smaller ones without triggers
• Configurable Modes — Single mode (both sides report as one zone) or dual mode (each side as separate zone)
• Advanced Optics & Processing — High-efficiency 1.77in long focal point LoDiff® Fresnel lens, narrow beams, patented APSP digital processing, and digital temperature compensation
• Adjustable Settings — Optical/digital range (3–12m), sensitivity (low/high), horizontal beam angle (0°/3°/20°), LED/buzzer indicators
• Rugged Outdoor Design — Impact/temperature-resistant casing, UV-protected lens, weatherproof seal, wall-mount with built-in level tool
• LED & Buzzer Feedback — Dual red LEDs (side-specific), optional buzzer for alarms/anti-mask events
• Installation Flexibility — Wall mount, beam adjustment (range/slide, horizontal 0°–3° tilt)

Quick Specs:

• Model: NV780MX (PA1085)
• Type: Hardwired outdoor dual side-view PIR with anti-mask
• Detection: 2 × 3–12m (10–39ft) sides @ ~90° typical; bi-directional, independent
• Pet Immunity: Up to 40kg (90lb) at min. 1.5m (4.9ft) height
• Power: 9–15VDC (standby ~37mA, max ~80mA)
• Alarm Output: 2 × solid-state relays (N.O./N.C. configurable)
• Anti-Mask: Active IR (blocks 10–30cm, sprayed liquids)
• Operating Temp: -35°C to +50°C (-31°F to +122°F) approx.
• Compatibility: Works with Paradox Spectra SP, Digiplex EVO, Magellan MG, and most standard wired panels
• Extras: Tamper protection, dip-switch settings (LED/buzzer/sensitivity/mode), anti-mask calibration on power-up

This detector excels at early outdoor warning with robust anti-sabotage and pet-tolerant features—ideal for high-risk perimeters in residential or commercial setups. Reliable wired performance and easy integration.
