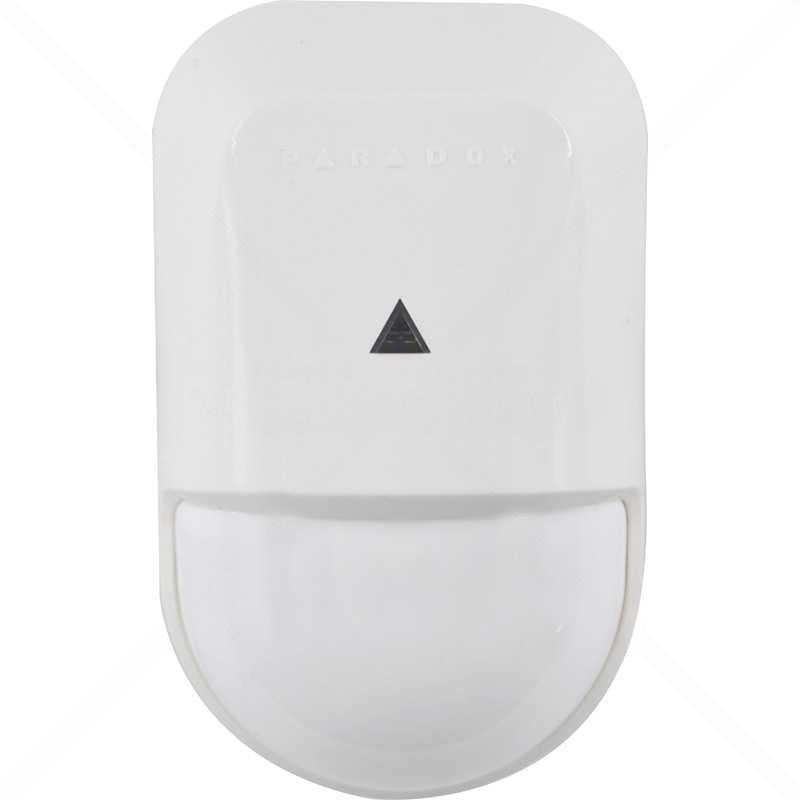

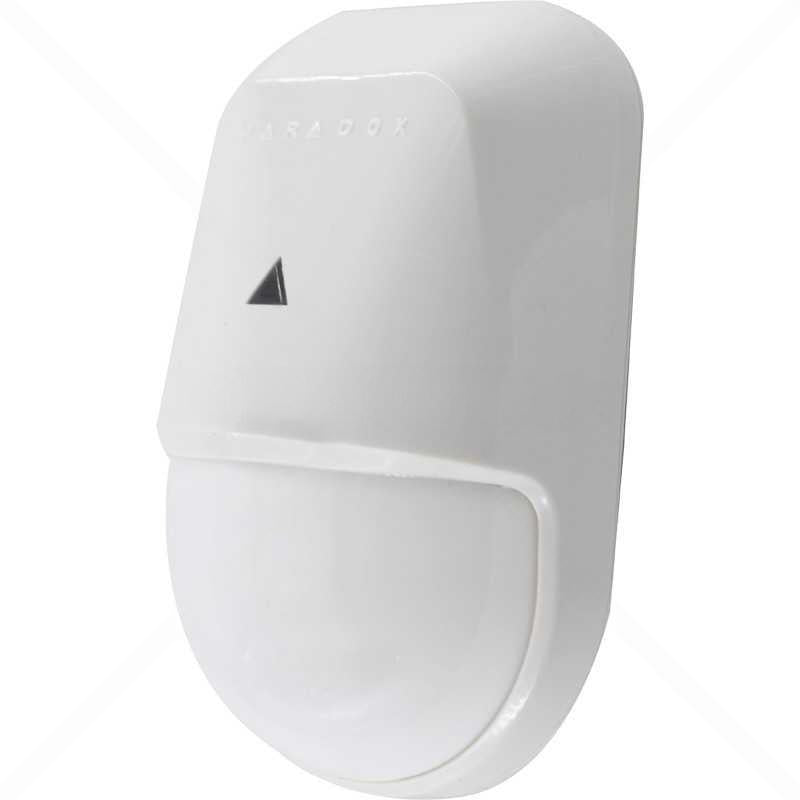

Paradox PIR NV5-Z72 Pet Immune PA-1025

This entry-level wired indoor motion detector from Paradox's ENVY series combines advanced digital processing with pet-friendly design, delivering reliable human detection while minimizing false alarms from pets up to 16kg (35lb). The NV5-Z72 (PA-1025) is compact, easy to install, and ideal for residential or small commercial spaces when paired with Spectra SP, Digiplex EVO, Magellan, or third-party panels.

Key Features:

• Pet Immunity — Effective up to 16kg (35lb); adjustable for environments with small to medium pets (higher immunity possible when pets stay below detection beams)
• Hybrid Lens Technology — Paradox's 1.0" cylindrical-spherical lens with 3rd-generation 3D Lodiff® Fresnel segments for even coverage and no dead zones
• Coverage — 10m × 10m (32.8ft × 32.8ft) at 102° viewing angle; 0.5m to max range pet-immune performance
• Dual/Single Edge Processing — Selectable modes (unique in class) for balancing catch performance and false-alarm immunity
• Paradox Patented Dual Digital Auto Pulse Signal Processing (APSP) — Two-level selection with digitally equalized temperature compensation for consistent detection across temperatures
• Customizable Sensitivity — 5 levels via trimmer; 4 pre-programmed profiles (LED flashes indicate setting)
• Super Creep Down-Looking Beam — Optional optic for straight-down detection (enhances creep zone coverage)
• RF & EMI Immunity — High resistance with metal shield for stable operation
• Easy Installation — Clip-in/out PCB (no removal needed), wall/ceiling mount bracket included, quick setup (5–10 minutes average)
• LED Feedback — Programmable alarm LED; power-up self-test indication

Quick Specs:

• Model: NV5-Z72 (PA-1025)
• Type: Hardwired digital indoor PIR
• Detection Range: 10m × 10m (32.8ft × 32.8ft) @ 102°
• Pet Immunity: Up to 16kg (35lb)
• Power: 10–15 VDC (standby ~10.5mA, alarm ~11.3mA)
• Alarm Output: Form A relay (NC typical)
• Tamper: Built-in switch
• Operating Temp: -20°C to +50°C (-4°F to +122°F) typical
• Compatibility: Paradox EVO, Spectra SP, Magellan MG, and most wired alarm panels
• Extras: Adjustable creep zone, equalized detection pattern

This compact, high-value PIR offers big performance in a small package—superior catch, even coverage, and pet tolerance for dependable indoor protection. Perfect for upgrading or expanding your Paradox system.
