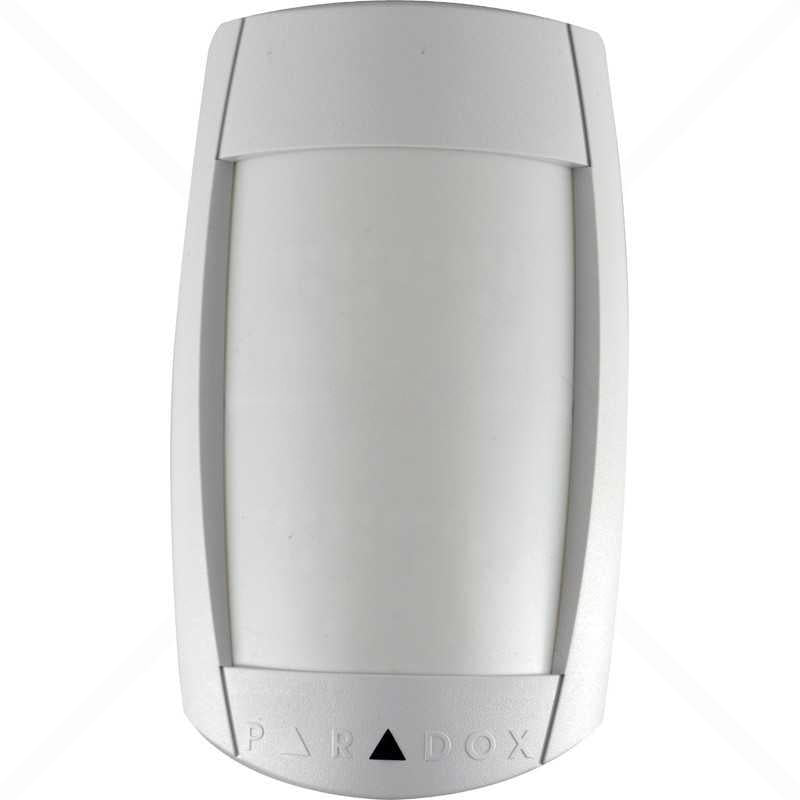

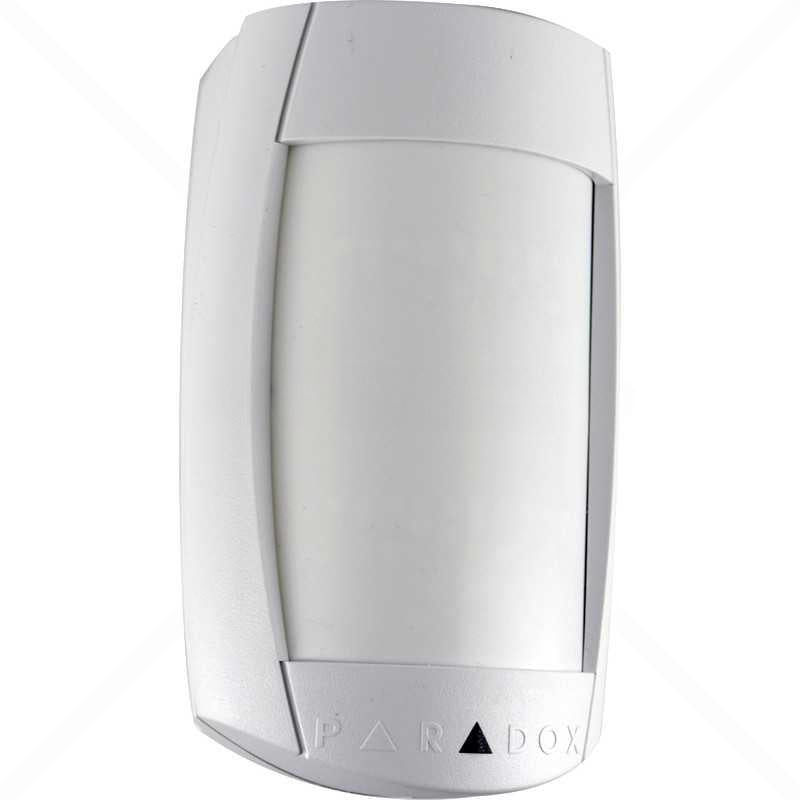

Paradox Digiguard DG75 Pet-Immune PIR Motion Detector (40kg)

The Paradox Digiguard DG75 (often listed as DG75+ or Digiguard 75 Pet 40kg) is a high-security wired indoor PIR motion detector featuring dual-optic technology and patented digital processing for superior false-alarm resistance and true pet immunity up to 40kg (90lbs). Ideal for homes or offices with large pets (e.g., big dogs) roaming freely—ignores animal movement while reliably detecting human intruders.

Key Features:

• Dual-Optic Digital Detection — Two dual-opposed element sensors (Heimann) with patented Digital Dual Opposed Detection and advanced optics for precise motion analysis
• True Pet Immunity — Immune to pets/animals up to 40kg (90lbs); allows large or multiple pets to move below beams without false alarms
• Wide Coverage — 11m × 11m (35ft × 35ft) area with 90° viewing angle; center beams up to 15m in some configs
• False-Alarm Resistance — Patented digital motion detection, automatic temperature compensation, and dual optical filtering reduce triggers from drafts, heat sources, or environmental changes
• Adjustable Sensitivity — Multi-level settings for fine-tuning to environment
• Anti-Tamper Switch — Built-in protection against cover removal or tampering
• Mounting Flexibility — Wall or corner mount; compatible with SB469 swivel bracket for precise aiming
• Easy Integration — Wired connection to Paradox Spectra SP (e.g., SP6000), Digiplex EVO, Magellan MG, or standard panels

Quick Specs:

• Model: DG75 / DG75+ (Pet 40kg version)
• Type: Hardwired indoor PIR
• Detection Range: 11m × 11m (35ft × 35ft) @ 90°
• Pet Immunity: Up to 40kg (90lbs)
• Power: 9–16VDC (from panel, low consumption)
• Alarm Output: Form A relay (NC typical)
• Tamper: NC switch
• Operating Temp: -35°C to +50°C (-31°F to +122°F) — impact/temperature-resistant casing
• Installation Height: Recommended 2.1–2.7m (7–9ft)
• Extras: Fresnel lens, LED alarm indicator (programmable), metal shield for EMI/RFI immunity

This detector combines advanced digital tech with proven pet tolerance for dependable indoor protection—perfect for pet owners seeking high reliability and minimal false alarms.
