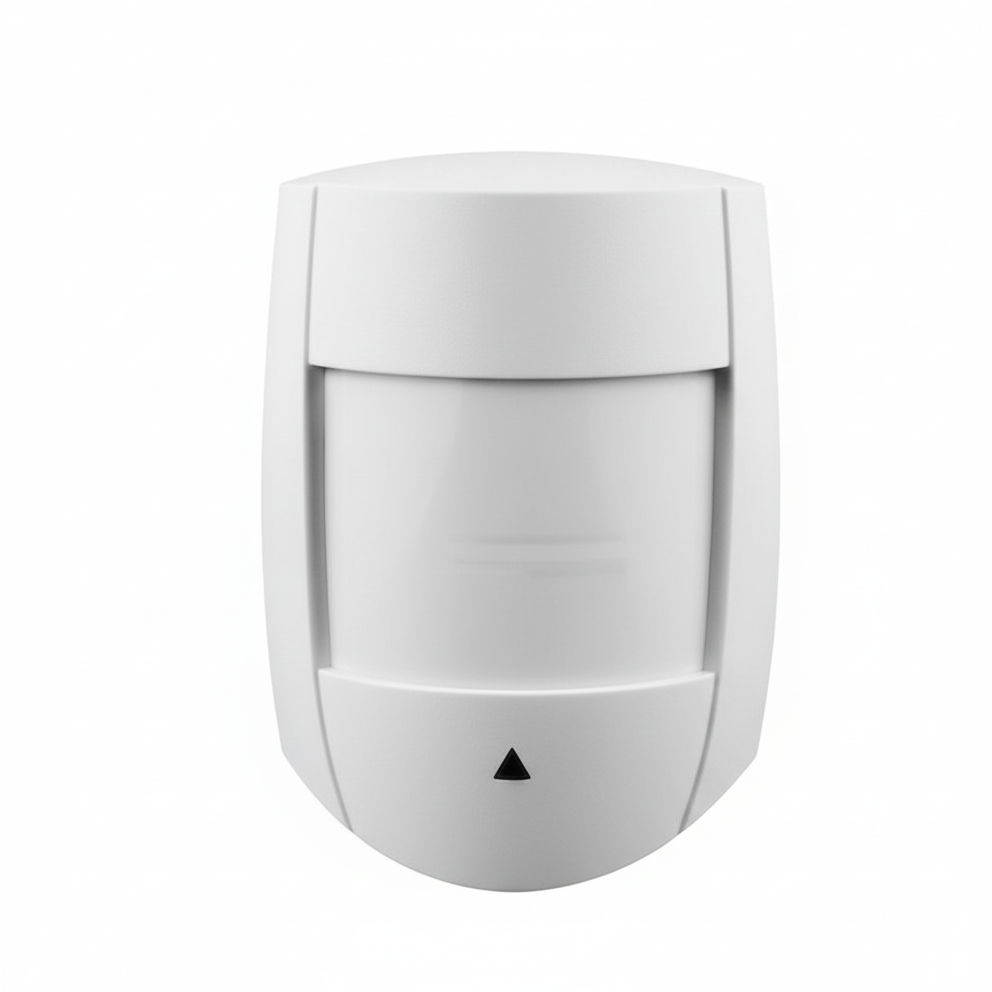

Paradox PIR DG65+ Digiguard Quad Motion Detector

This high-performance indoor wired PIR motion detector from Paradox delivers reliable, false-alarm-resistant detection for residential and commercial spaces. Featuring a quad-element sensor with patented Interlock Sensor Geometry (ISG) and digital dual-opposed detection, the DG65+ excels in accuracy and stability—ideal for hallways, living areas, or offices when integrated with Spectra SP, Digiplex EVO, or other compatible panels.

Key Features:

• Quad-Element Infrared Sensor — Enhanced precision with Interlock Sensor Geometry for superior motion analysis
• Digital Dual Opposed Detection — Reduces false alarms from environmental factors like temperature changes or drafts
• Wide Coverage — 12m × 12m (40ft × 40ft) area with 110° viewing angle
• Automatic Temperature Compensation — Maintains consistent performance across varying conditions
• Adjustable Sensitivity — Jumper-selectable normal or high sensitivity modes
• LED Feedback Options — Programmable (on/off) with alarm (solid red 3s), pre-alarm (flashing), and power-up self-test indication
• Anti-Tamper Switch — Built-in for cover and removal detection
• Easy Installation — Wall or corner mount; compatible with SB469 swivel bracket for flexible aiming

Quick Specs:

• Model: DG65+ (Digiguard series)
• Type: Hardwired indoor PIR
• Detection Range: 12m × 12m (40ft × 40ft) @ 110°
• Power: 9–16 VDC (from panel, typically 15mA max / 6mA min with LED off)
• Alarm Output: Form A relay (100mA / 28VDC, NC)
• Tamper: 150mA / 28VDC NC
• Operating Temp: -20°C to +50°C (-4°F to +122°F) typical
• Installation Height: Recommended ~2.1m (7ft)
• Extras: 2nd generation Fresnel lens (LODIFF®), no pet immunity (standard model; see pet variants like 476PET for animal tolerance)

Perfect for professional-grade indoor protection with minimal false triggers and robust digital processing. Pairs seamlessly with your Paradox system for dependable coverage. Order the Paradox DG65+ Digiguard Quad Motion Detector today!
