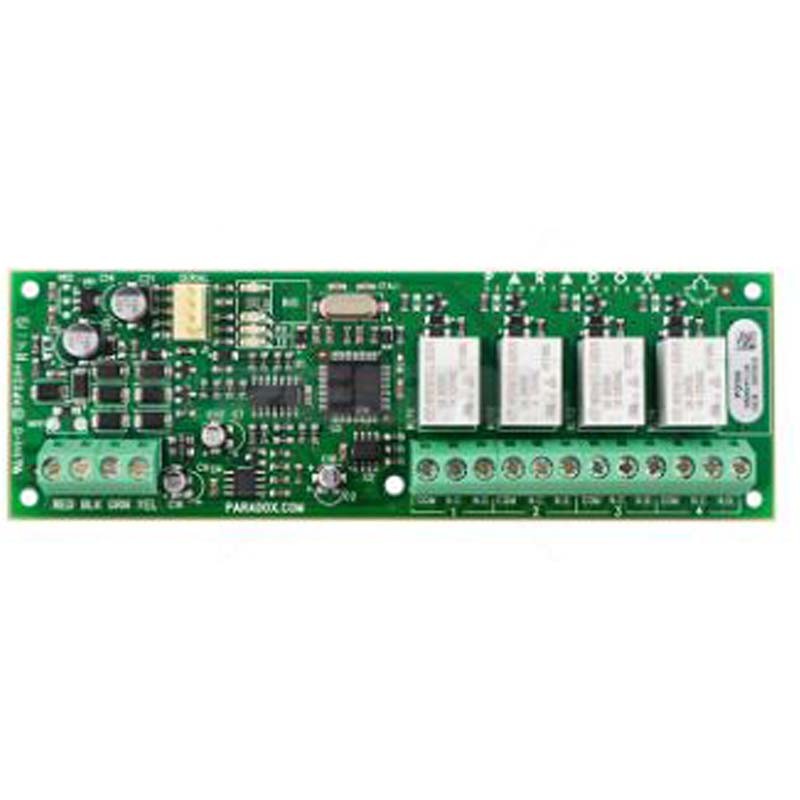

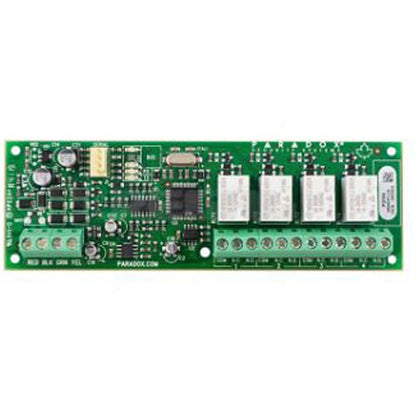

Paradox PGM4 Expander Module EVO/ MG5050 / SP6000

Expand your Paradox security system's output capabilities with the PGM4—a compact, bus-connected module that adds 4 fully programmable relay outputs for controlling lights, gates, sirens, HVAC, or other devices triggered by panel events. It's a versatile automation tool for Digiplex EVO, Magellan MG (including MG5050), and Spectra SP (including SP6000) systems.

Key Features:

• 4 Form C Relay Outputs — Each relay supports NO/NC/COM contacts, rated for up to 5A at 24V (some sources note 4A/24V loads), handling heavy-duty switching
• Flexible Programming — Activate/deactivate based on system events (alarms, arming, timers); includes timer deactivation, pulse mode (e.g., for fire alarms/strobes), and event-follow options
• In-Field Firmware Upgradeable — Easy updates via compatible software
• Simple Bus Connection — Plugs into the 4-wire keypad/combus for seamless integration and supervision
• Broad Compatibility — Works with Digiplex EVO series, MG/SP series (V3.00+), Spectra SP (V3.00+), and select legacy panels like Esprit E55/E65 (V2.00+); EN50131 Grade 3 compliant in supported setups

Quick Specs:

• Model: PGM4 (often referenced as APR3-PGM4 in older docs)
• Outputs: 4 Form C relays (5A max per relay typical)
• Power: 11–16 VDC from panel bus (~150 mA max when all PGMs active)
• Connection: 4-wire bus (keypad expansion)
• Operating Temp: -20°C to +50°C (-4°F to +122°F)
• Dimensions: Compact PCB design (approx. 14 cm × 4.5 cm × 3 cm)

Ideal for adding smart automation features to your EVO, MG5050, or SP6000 setup—control external devices reliably without rewiring the panel. Straightforward installation and powerful event-driven control. Order the Paradox PGM4 Expansion Module today!
