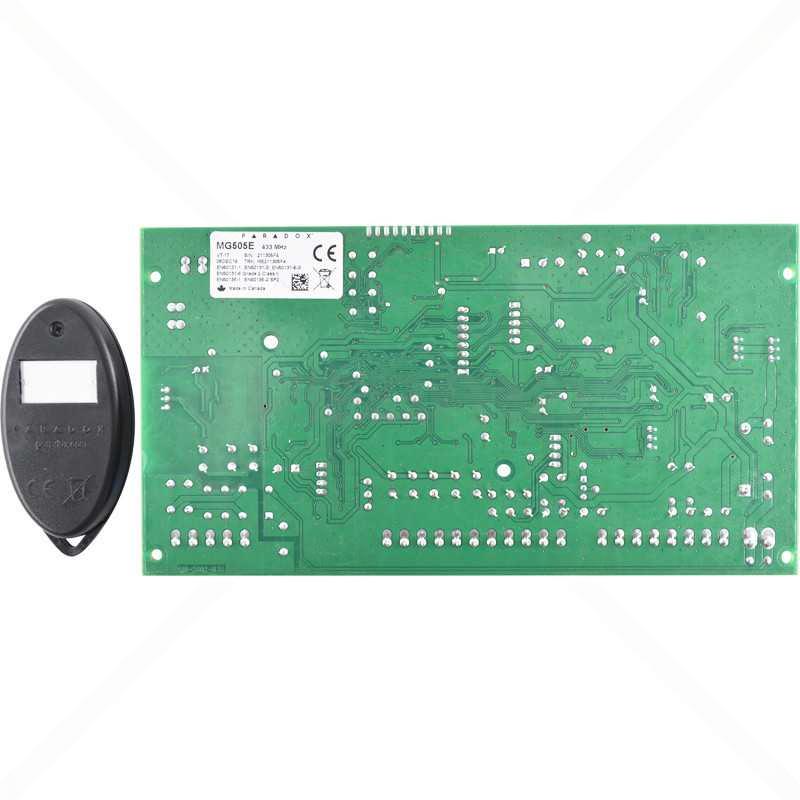

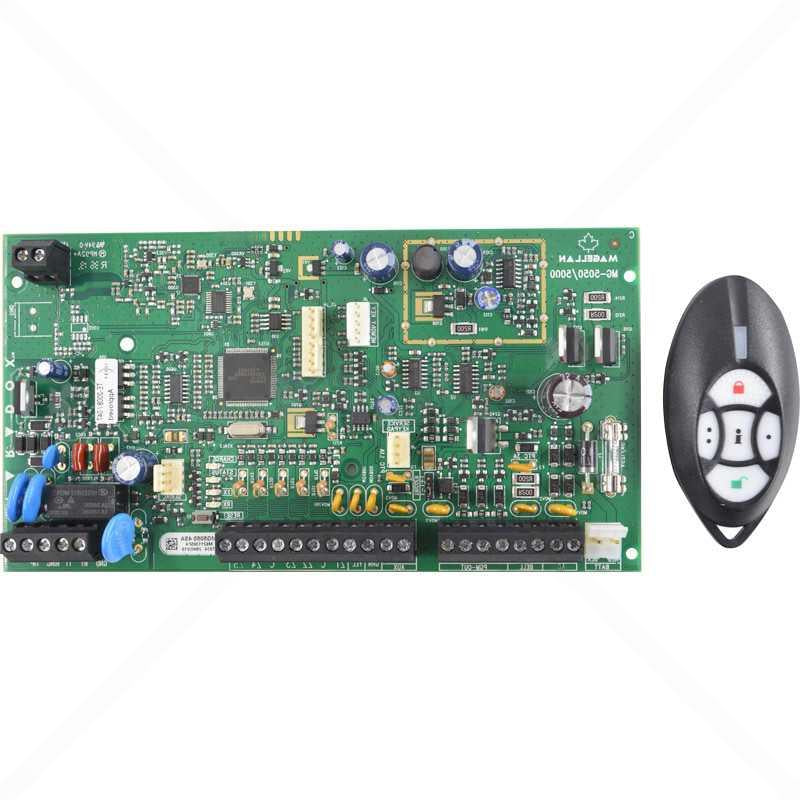

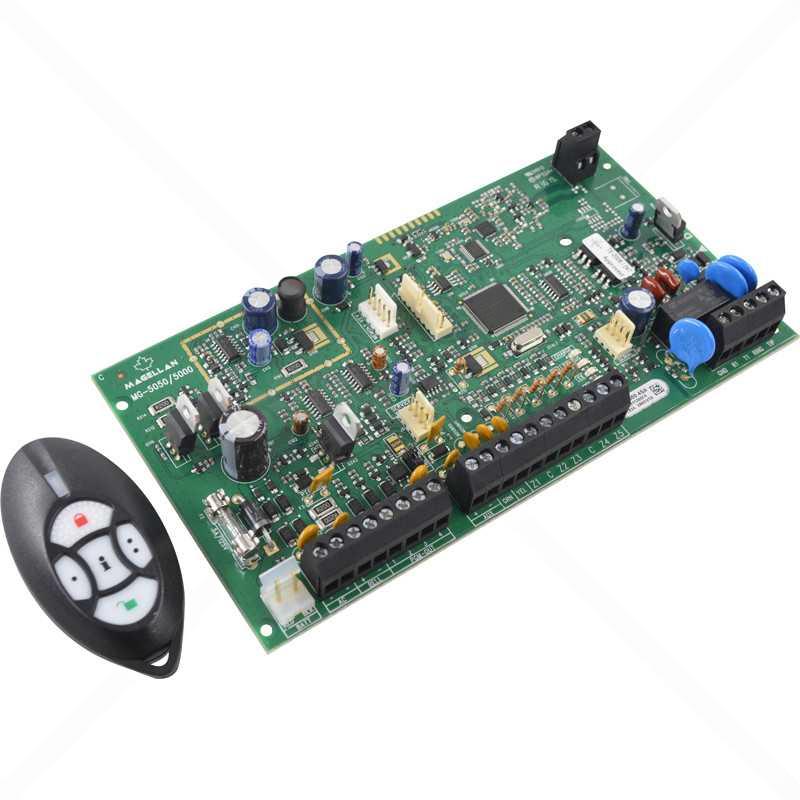

Paradox MG5050 PCB with REM2 Remote PA3825

This compact kit centers on the Paradox MG5050 control panel PCB (Printed Circuit Board) paired with the reliable REM2 two-way remote control—ideal for wireless security installations, upgrades, or custom builds where you already have an enclosure, keypad, or power supply. The MG5050 is a proven, feature-rich wireless panel perfect for homes or small businesses, and the included REM2 adds convenient remote arming/disarming with status feedback.

Kit Contents (Typical PA3825 Configuration):

• 1 × MG5050 Control Panel PCB (32 wireless zones, built-in transceiver)
• 1 × REM2 Two-Way Remote Control (5-button with confirmation feedback)

Key Features:

• MG5050 Panel PCB — Supports up to 32 wireless zones, 999 users, 2 partitions, StayD mode for flexible partial arming, built-in 433MHz/868MHz transceiver (region-dependent), landline dialer, expandable with IP150 Internet Module or GSM communicators for remote app control and notifications
• REM2 Remote — Two-way operation with visual (LED) and auditory (beep) confirmation of arm/disarm status, water-resistant design, backlit buttons, controls arm/disarm, stay/sleep modes, panic, and programmable PGMs from up to ~70m away
• Wireless Simplicity — Fast enrollment of wireless sensors (PIRs, contacts, sirens); full supervision including low-battery and tamper alerts
• Scalable & Flexible — Add keypads (LED or LCD), modules, or wireless accessories as needed; compatible with existing Magellan setups
• Installer-Friendly PCB — Compact board design for mounting in standard enclosures (e.g., 28×28×7.6cm metal box), easy terminal blocks, and in-field firmware upgrades

Quick Specs:

• Control Panel: MG5050 PCB (32 wireless zones, 2 partitions, 999 users)
• Remote: REM2 (two-way, 433MHz/868MHz variants)
• Power Requirements: 16VAC transformer + 12V battery backup (not included in PCB/remote kit)
• Transceiver: Built-in 2-way wireless (frequency matches regional model)
• Compatibility: Full Magellan MG series ecosystem; works with Paradox wireless detectors, contacts, sirens, and keypads
• Extras: StayD support, event logging, programmable outputs (PGMs)

This PA3825 kit delivers core wireless control and remote convenience without unnecessary extras—perfect for DIY builds, panel replacements, or expanding an existing system affordably. Reliable Magellan performance in a streamlined package.
