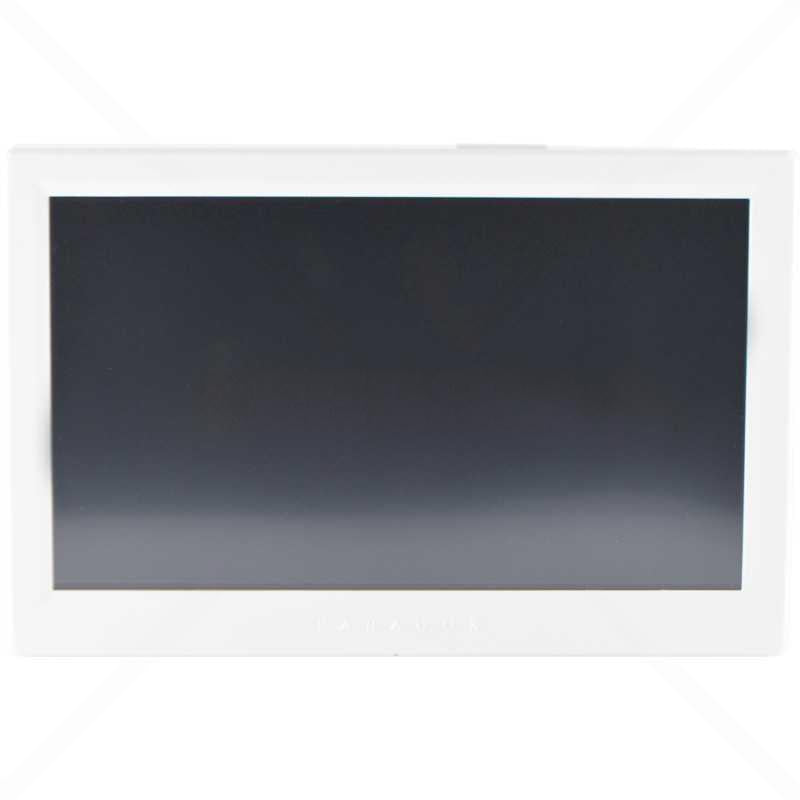

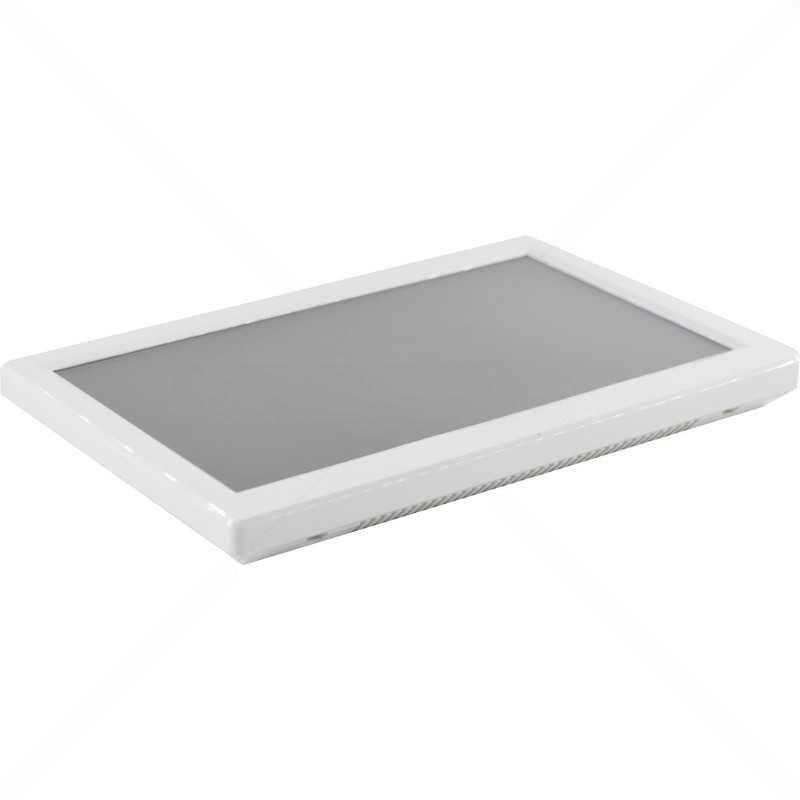

Paradox TM70 Touch Intuitive Touchscreen Keypad

Elevate your Paradox security system with the TM70—a sleek, modern 7-inch color touchscreen keypad that delivers intuitive, icon-based control and vivid visual feedback. This capacitive touchscreen makes arming, disarming, bypassing zones, and monitoring your setup effortless, with ultra-fast response times and menu-driven prompts—no manual required.

Key Features:

• 7" Vivid Color Display — High-resolution 800 × 400 pixels for clear, detailed views of system status, zone labels, partitions, users, doors, and PGMs
• Intuitive Touch Interface — Icon-based menus, customizable labels, adjustable backlight/contrast, auto-dim mode, and digital photo frame/screen saver support (via microSD card slot)
• Built-in Zone Input — Connect 1 wired zone or external temperature sensor (10kΩ thermistor)
• Advanced Functionality — Control up to 8 PGMs, independently set chime zones, 3 keypad-activated panic alarms (police, fire, aux), indoor temperature display, bus voltage reading, and SpotOn Alarm Locator™ (upload up to 32 floor plans for graphic zone verification)
• Multi-Partition Support — Manage multiple areas with real-time status and one-screen monitoring
• Firmware & Customization — In-field upgrades via microSD card; customizable translations via web app
• Secure & Reliable — Built-in tamper (cover and wall), buzzer for event signaling, connects to 4-wire communication bus

Quick Specs:

• Model: TM70 Touch
• Display: 7" capacitive touchscreen (800 × 400 resolution)
• Power: Supplied via panel bus (low consumption)
• Connection: 4-wire bus (standard Paradox expansion)
• SD Card Slot: External microSD (4GB recommended, 2GB free for images/floor plans)
• Operating Temp: Indoor use, typically 0°C to +50°C (32°F to +122°F)
• Compatibility: Magellan MG series (MG5000, MG5050, MG5075), Spectra SP series, Digiplex EVO series, and next-generation Swan panels
• Extras: Surface-mount installation only; dimensions approx. 17.7 × 11.4 × 1.5 cm (7 × 4.5 × 0.6 in.)

This premium touchscreen keypad transforms daily interaction with your MG/SP/EVO system into a modern, user-friendly experience—perfect for homes or businesses seeking enhanced usability and visual appeal. Simple to install and highly customizable.
