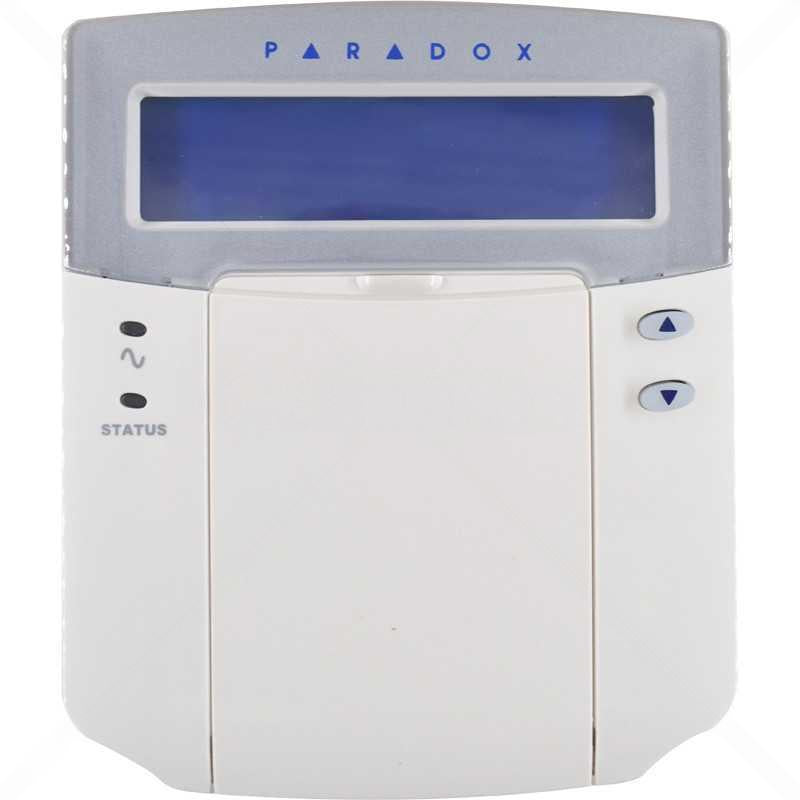

Paradox K641+ 32-Character Blue LCD Keypad (EVO Series)

This premium hardwired LCD keypad from Paradox is designed specifically for the Digiplex EVO series (EVO48, EVO96, EVO192, EVOHD), delivering clear, detailed system information and intuitive operation. Featuring a bright 32-character blue LCD display with programmable zone labels, the K641+ offers professional-grade usability for large or complex installations requiring multi-partition control and advanced features.

Key Features:

• 32-Character Blue LCD — Displays programmable zone names/labels, system messages, status, and time (12/24-hour format) for easy reading
• Zone Alarm Memory — Shows zones in alarm until the system is disarmed
• 1 Addressable Zone + 1 PGM Output — Add a wired zone or programmable output directly at the keypad
• Independently Set Chime Zones — Customize chime alerts per zone

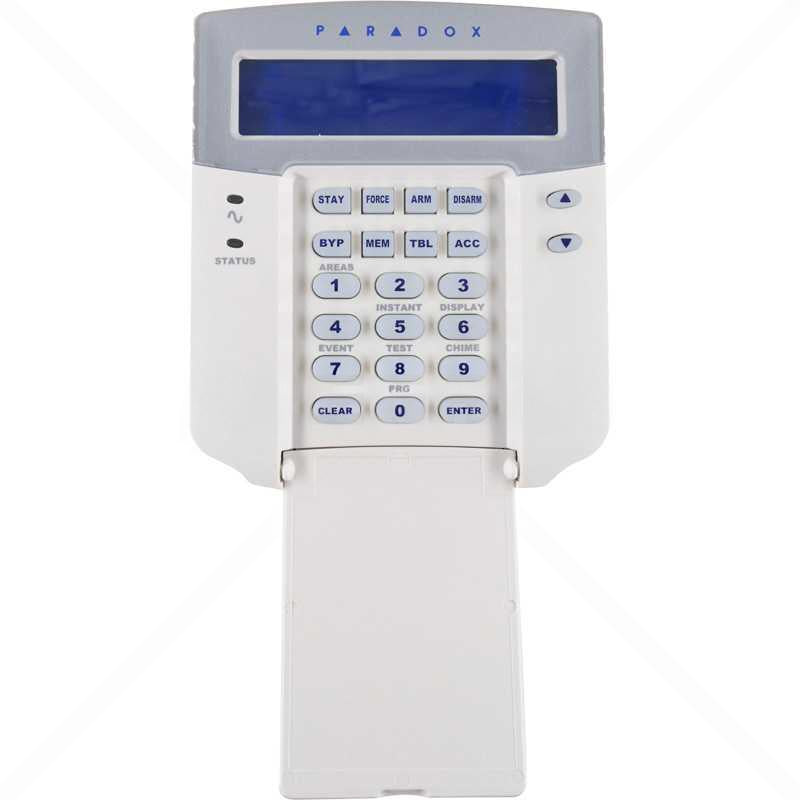

• 14 One-Touch Action Buttons — Quick access to common functions like arming, bypassing, and menu navigation
• 3 Keypad-Activated Panic Alarms — Police, medical, and fire emergencies
• Adjustable Settings — Backlight, contrast, scroll speed, and display timing for user comfort
• Multi-Partition Support — Assign to one or more partitions with clear status indicators
• In-Field Firmware Upgradable — Via CONV4USB/307USB for future updates
• Simplified Remote Control Programming — Easy end-user setup

Quick Specs:

• Model: K641+ (often referenced as K641 for EVO series)
• Display: 32-character blue LCD
• Zones: 1 addressable onboard input
• PGM: 1 onboard output
• Power: Supplied via panel bus (low consumption)
• Connection: 4-wire combus (standard EVO bus)
• Operating Temp: -20°C to +50°C (-4°F to +122°F) typical
• Compatibility: Digiplex EVO series (EVO48/96/192/EVOHD), legacy DGP-848; supports multiple languages (English, French, Spanish, etc.)
• Extras: Tamper protection, buzzer for events, EN50131 Grade 3 compliant in supported setups

This keypad provides a clear, text-rich interface for managing extensive EVO systems—perfect for installers and end-users needing detailed feedback without touchscreen complexity. Pairs seamlessly with EVO panels for reliable, expandable control.
