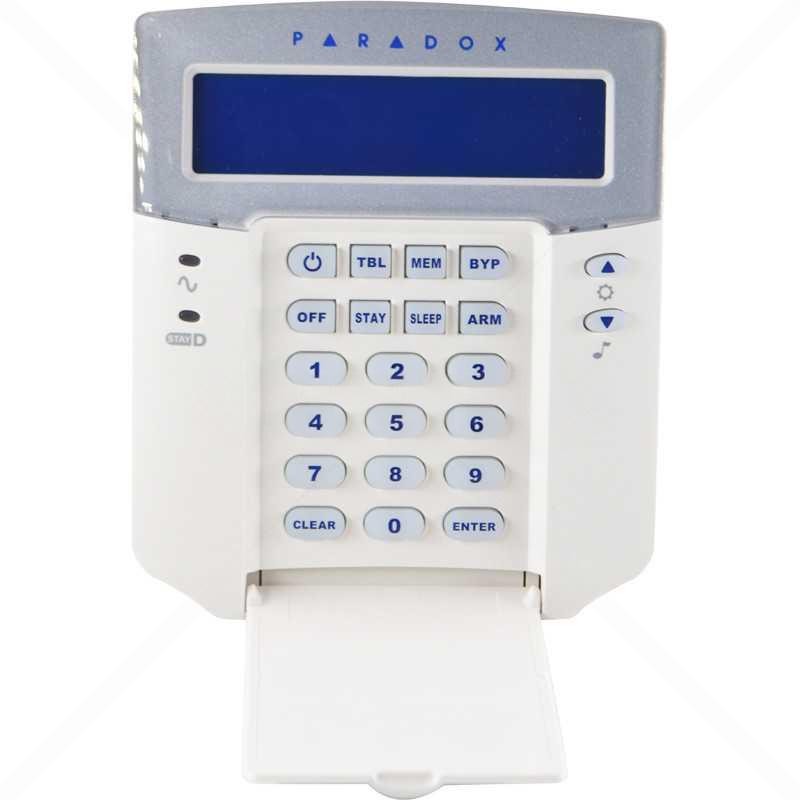

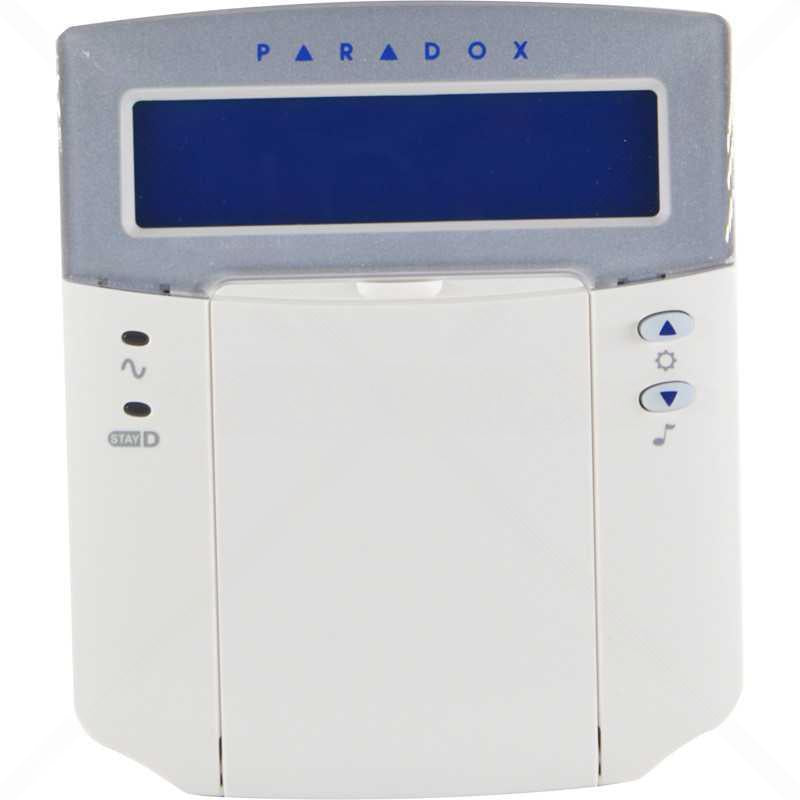

Paradox K32 LCD 32 Zone Keypad PA-3860

This hardwired LCD keypad from Paradox provides clear, intuitive control and detailed status feedback for your security system. Featuring a bright 32-character blue LCD display with programmable zone labels, the K32LCD (PA-3860) is an excellent upgrade or addition for Spectra SP series (e.g., SP6000), Magellan MG panels (e.g., MG5050), and compatible setups, offering menu-driven ease and real-time visibility.

Key Features:

• 32-Character Blue LCD — Displays programmable zone names/labels, system messages, and status for easy reading
• Real-Time Zone Alarm Display — Shows open/alarm/bypassed zones until system is disarmed
• StayD Status LED — Dedicated indicator for StayD mode (partial arming while moving freely indoors)
• Menu-Driven Programming — Simple on-keypad setup and configuration
• 1 Keypad Zone Input — Add an extra wired zone directly at the keypad
• Independently Set Chime Zones — Customize chime alerts per zone
• 8 One-Touch Action Buttons — Quick access to arming, bypassing, chimes, and more
• 3 Keypad-Activated Panic Alarms — Police, medical, and fire emergencies
• Adjustable Backlight, Contrast & Scroll Speed — Customize for any lighting or user preference
• In-Field Firmware Upgradeable — Via 307USB interface for future updates
• 2-Partition Support — Independently control separate areas

Quick Specs:

• Model: K32LCD (PA-3860)
• Type: Hardwired LCD keypad
• Display: 32-character blue LCD
• Zones: 32-zone status display + 1 onboard input
• Partitions: 2
• Power: Supplied via panel bus (9–16VDC, low consumption)
• Connection: 4-wire bus (standard Paradox expansion)
• Operating Temp: -10°C to +50°C typical
• Compatibility: Magellan MG series, Spectra SP series (V2.31+), and select others
• Extras: StayD LED, trouble/memory/bypass indicators, panic keys

This sleek, modern keypad simplifies daily operation with clear text feedback and programmable convenience—perfect for homes or businesses wanting more than basic LED status. Easy to install and expand your Paradox system.
