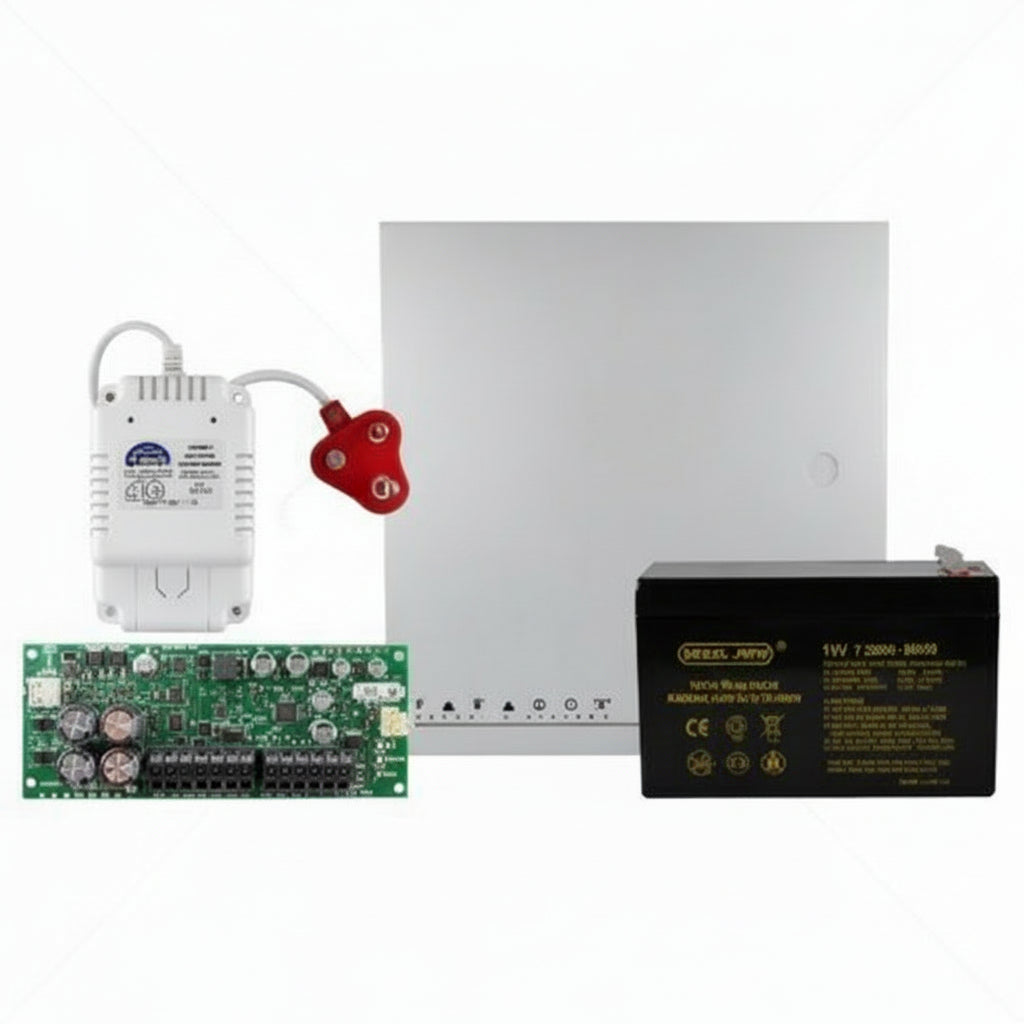

Paradox Digiplex EVO PSU BUS Kit

This complete power supply kit ensures stable, supervised auxiliary power for your Paradox Digiplex EVO (or compatible) high-security system—perfect for larger installations requiring extra capacity for keypads, modules, detectors, sirens, or access control devices without overloading the main panel.

Kit Contents:

• 1 × PS17 (DGP2-PS17) Power Supply Module (1.7A switching PSU)
• 1 × Metal Enclosure/Box (secure housing with tamper protection)
• 1 × 12V 7Ah Backup Battery

Key Features:

• 1.7A Supervised Switching Power Supply — Delivers reliable 13.8VDC output with full supervision (AC failure, low battery, auxiliary limit)
• Selectable Battery Charging — Adjustable current (typically 350mA or 850mA) for efficient charging of the included 7Ah battery
• Bus-Connected Integration — Connects directly to the 4-wire combus (EVO bus) for seamless supervision and reporting to the control panel
• On-Board Anti-Tamper — Detects enclosure tampering and reports it
• PGM Output — Includes 1 programmable output for custom triggers or notifications
• In-Field Firmware Upgradable — Future-proof via bus connection
• Broad Compatibility — Works with Digiplex EVO series (EVO48, EVO96, EVO192, EVOHD), and select other Paradox panels

Quick Specs:

• Model: PS17 (formerly DGP2-PS17) in BUS Kit
• Aux Output: Up to 1.7A total (supervised)
• Battery: 12V 7Ah sealed lead-acid (included)
• Transformer Required: 16VAC 20/40VA (not included in kit)
• Supervision: AC, battery, low battery, aux limit
• Enclosure: Metal box (approx. 20cm × 25.5cm × 7.6cm / 8in × 10in × 3in typical)
• Connection: 4-wire bus to panel

Ideal for expanding power distribution in EVO-based systems—ensures uninterrupted operation during outages and supports demanding accessories. Simple bus setup and robust supervision. Power your high-security setup reliably—order the Paradox Digiplex EVO PSU BUS Kit with PS17 today!
