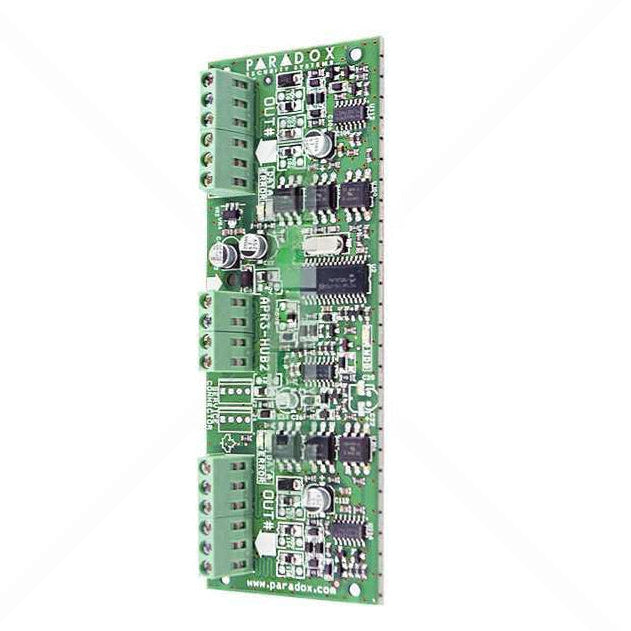

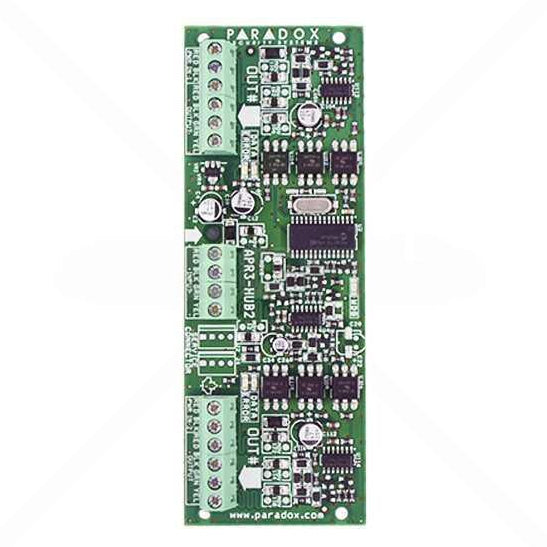

Paradox Digiplex EVO Hub and Bus Isolator PA5363

Enhance the reliability and reach of your Paradox Digiplex EVO security system's communication bus with the PA5363 (also known as HUB2 or APR3-HUB2)—a non-addressable hub and bus isolator module. It splits the panel's 4-wire combus into two fully isolated output branches, preventing a fault or interference on one branch from affecting the other, while extending total communication distance.

Key Features:

• One Input Port, Two Isolated Output Ports — Divides the bus into two independent, isolated branches (if one fails, the other continues functioning normally)
• Extended Communication Distance — Each output port supports up to 900m (3000ft) of bus wiring for keypads, modules, receivers, or other devices
• Fault Isolation — Protects against shorts, overloads, or RF interference issues on one branch without impacting the entire system
• Ideal for Large Installations — Perfect for long cable runs, multiple buildings, or environments with potential electrical noise/RF interference
• Simple Bus Connection — Connects directly to the EVO panel's combus; no addressing required
• Broad Compatibility — Works with Digiplex EVO series (EVO48, EVO96, EVO192, EVOHD), and legacy Digiplex panels (DGP-848, DGP-NE96)

Quick Specs:

• Model: PA5363 (HUB2 / APR3-HUB2)
• Inputs: 1 (from panel bus)
• Outputs: 2 isolated bus ports
• Max Distance per Output: 900m (3000ft)
• Power: Supplied via panel bus (low consumption)
• Connection: 4-wire combus (standard EVO bus)
• Operating Temp: Standard indoor range (-20°C to +50°C typical)
• Dimensions: Compact PCB design for easy enclosure mounting

This module is a must-have for robust, large-scale EVO installations requiring reliable bus expansion and fault tolerance. Maintain system integrity over extended distances with proven Paradox isolation technology. Order the Paradox Digiplex EVO Hub and Bus Isolator PA5363 today!
