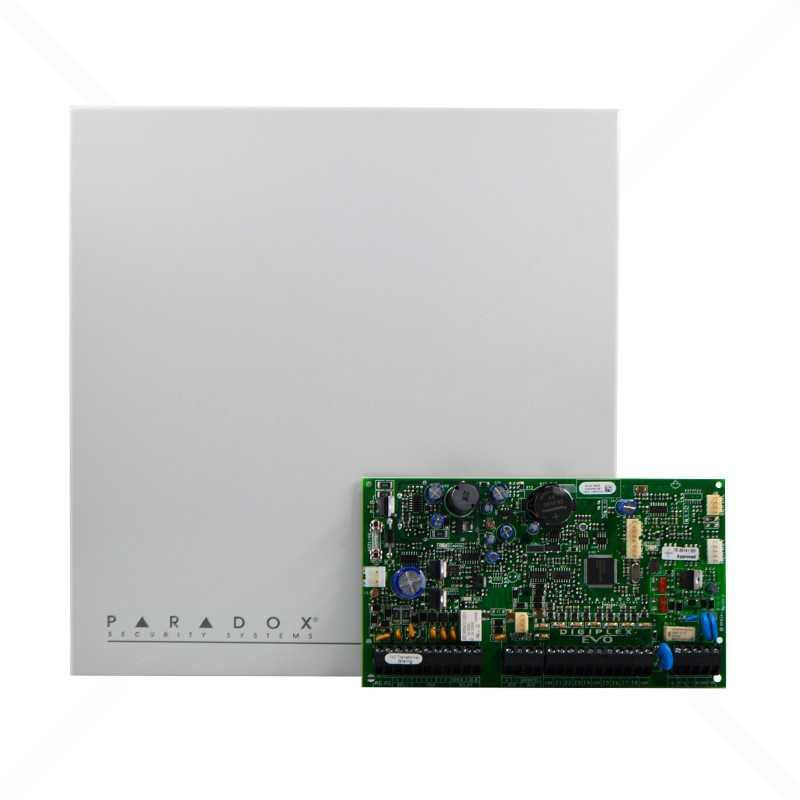

Paradox Digiplex EVO-192 Panel + Metal Box

This high-capacity Digiplex EVO-192 control panel with included metal enclosure is built for demanding residential, commercial, or multi-building security and access control applications. It offers massive scalability—starting with 8 onboard zones and expanding up to 192 zones—while integrating advanced features like built-in access control for up to 32 doors.

Key Features:

• Expandable Zones — 8 onboard zones (16 with ATZ zone doubling), expandable to 192 via 4-wire combus modules (e.g., ZX8/ZX82)
• Built-in Access Control — Manage up to 32 doors using the same database as the alarm system
• Partitions & Users — Supports 8 partitions and up to 999 users/codes
• Programmable Outputs — 5 onboard PGMs (expandable to 250+ via modules)
• Advanced Communication — Supports IP150 Internet Module, PCS Series GSM/GPRS, Voice Module (VDMP3), and landline reporting
• In-Field Firmware Upgrades — Easy updates for future-proofing
• Supervision & Reliability — Real-time clock backup, supervised outputs, and robust event logging

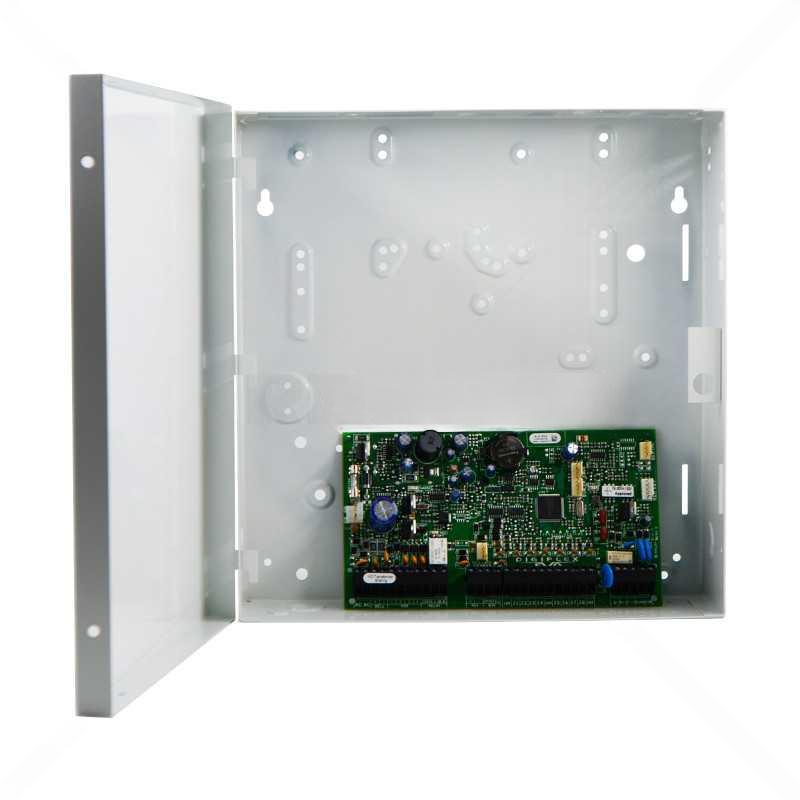

• Secure Enclosure — Includes sturdy metal box with multiple knockouts for wiring, tamper provision, and space for battery/transformer

Quick Specs:

• Model: EVO192 (often bundled as PA3406 or similar with enclosure)
• Onboard Zones: 8 (expandable to 192)
• Partitions: 8
• Users: 999
• PGMs: 5 onboard (expandable)
• Power Supply: 1.7A switching (requires 16VAC transformer, not included)
• Backup Battery: Supports 12V 7Ah+ (space in enclosure)
• Enclosure Dimensions: 28cm × 28cm × 7.6cm (11in × 11in × 3in) metal box
• Compatibility: Full Digiplex EVO series accessories (keypads like EVO641, modules, wireless via RTX3, etc.)
• Grade: EN 50131 Grade 3 compliant in supported configurations

Perfect for large-scale or integrated security/access setups needing extensive zoning, multi-partition control, and door management. The included metal box ensures secure, professional installation with room for expansions.
