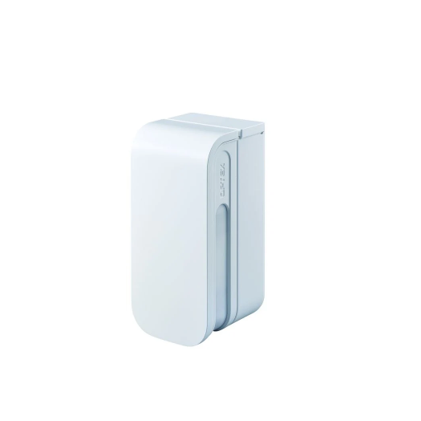

Optex PIR BXS Shield 24m Wireless Outdoor excl Battery

The Optex BX Shield (BXS series, typically model BXS-R or BXS-RAM for wireless variants) is a sleek, battery-powered outdoor curtain PIR detector with quad PIR technology (four sensors, two on each side). It provides independent left/right detection up to 12m per side (total 24m / 80ft) across a 180° narrow field—perfect for protecting building boundaries, windows, immediate perimeters, or narrow approach areas without blind spots.

Key Features:

• Quad PIR (Dual-Zone per Side) — Four sensors (two per side) with SMDA logic for advanced false-alarm rejection (ignores small animals, wind, rain, or temperature changes)
• 24m Total Coverage — 12m (40ft) on each side; adjustable detection range (2.5m, 3.5m, 6m, 8.5m, 12m) and sensitivity independently per side
• Wireless Battery Operation — Battery-powered (3–9VDC lithium or alkaline batteries, excluded in this listing); long life with low current draw
• Extreme High Detection Mode — Boosted sensitivity for high-security needs
• Tamper Protection — Activates on face cover or back box removal
• Versatile Design — Compact, modern housing (black or white cover options); automatic walk test mode
• Weatherproof Build — Rugged outdoor rating for harsh conditions

Quick Specs:

• Model: BXS-R (standard wireless) or BXS-RAM (with anti-masking)
• Detection: Quad PIR (four elements)
• Coverage: 24m total (12m per side), 180° narrow
• Power: 3–9VDC batteries (lithium/alkaline, excluded)
• Current Draw: Low (e.g., ~0.015–8mA typical)
• Operating Temp: -25°C to +60°C typical
• IP Rating: Weather-resistant (suitable for outdoor use)
• Extras: Size analysis ignores false sources, tamper output, optional anti-masking (RAM variant)

This wireless outdoor PIR excels at boundary protection with excellent false-alarm immunity and flexible side-by-side adjustment—trusted for immediate perimeter security.
