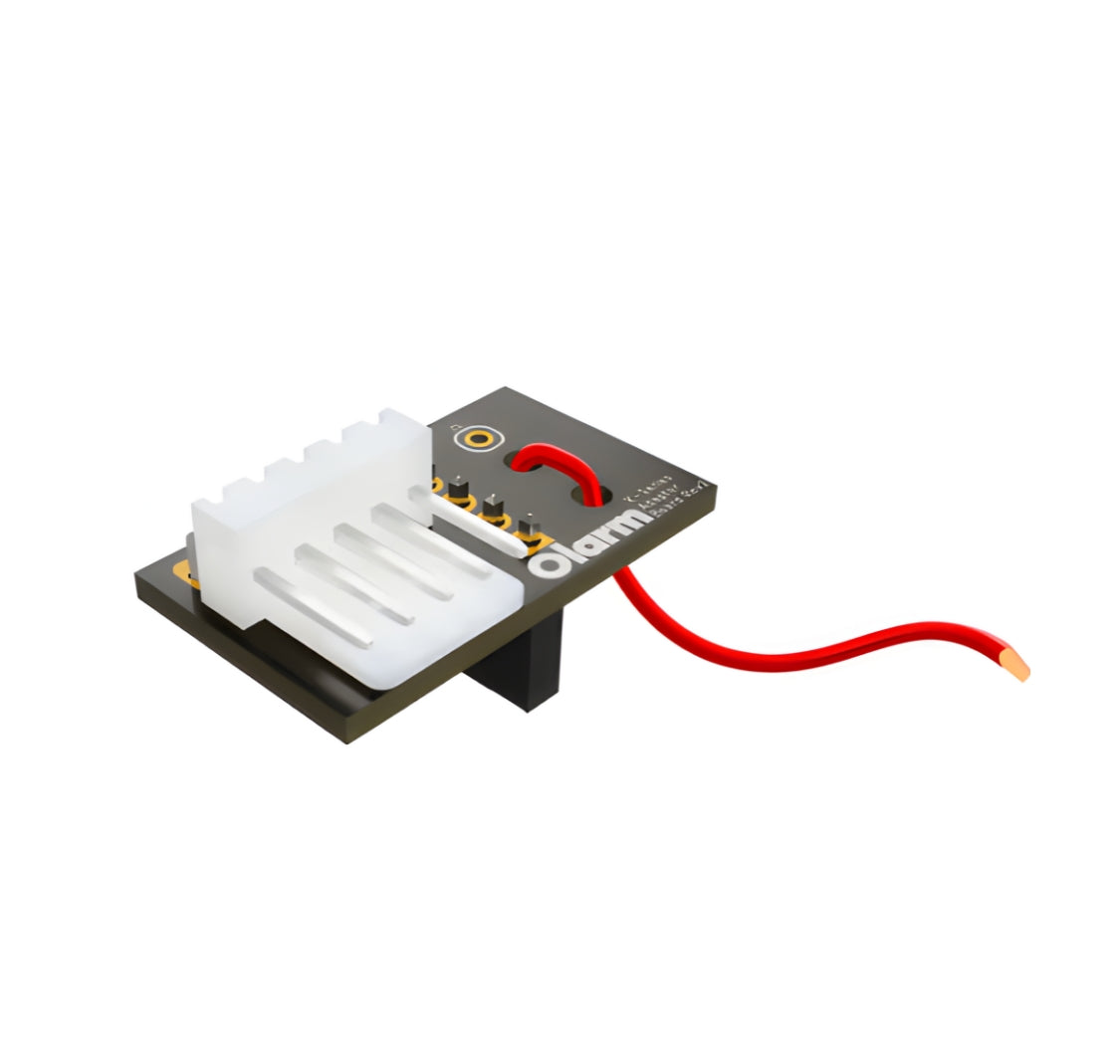

Olarm X-Series Adaptor Board (Older Panels)

The Olarm X-Series Adaptor Board for Older Panels (often labeled as IDS X-Series Adapter Board for X16 & X64) is a dedicated interface board required to connect Olarm communicators (e.g., Olarm PRO, Olarm PRO 4G, Olarm MAX) to older IDS X-Series panels, specifically the IDS X16 and IDS X64 models.

Key Details & Compatibility:

• Primary Use — Enables serial communication between the Olarm device and the alarm panel for remote arm/disarm, real-time status monitoring, event reporting, push notifications, and app control via the Olarm platform.
• Compatible Panels — Designed exclusively for:
  • IDS X16
  • IDS X64 (classic/older versions)
• Not Compatible With — Newer IDS X-Series Serial panels (those with a single Com Port or modular interface) or IDS 806—these require the separate IDS 806 & X-Series Serial Adapter Board.
• Installation — Plugs into the panel's serial port; includes wiring for 12V power (red wire to AUX+). Connects via the Olarm peripheral cable (5-pin to adaptor, 4-pin to Olarm device). Power down the panel before connecting.
• Why Needed — Older X-Series panels (X16/X64) use a different serial interface than newer models, so this specific adaptor ensures reliable integration and communication.
• Firmware Note — For IDS X16/X64 panels with firmware below 2.5, an update may be required for full compatibility (check panel firmware by holding [] for 3 seconds, then press [] again to display version).

This adaptor is essential for upgrading or connecting Olarm smart features to legacy IDS X-Series systems—simple plug-and-play for installers. Confirm your exact panel model (e.g., X16 or X64 classic) to ensure the right board.
