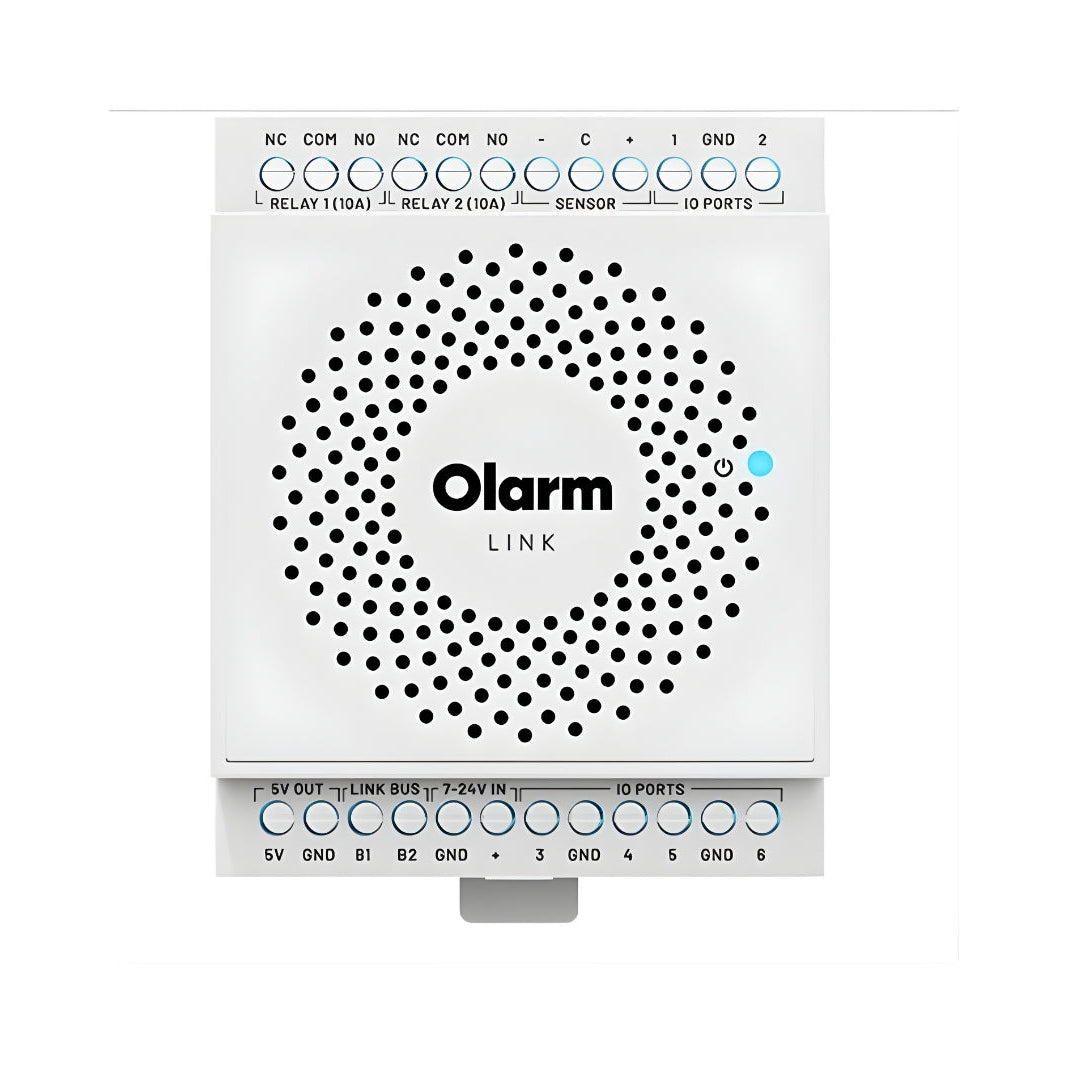

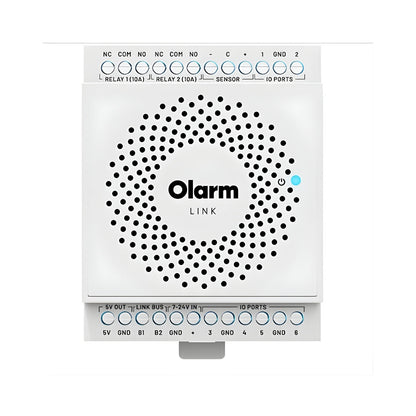

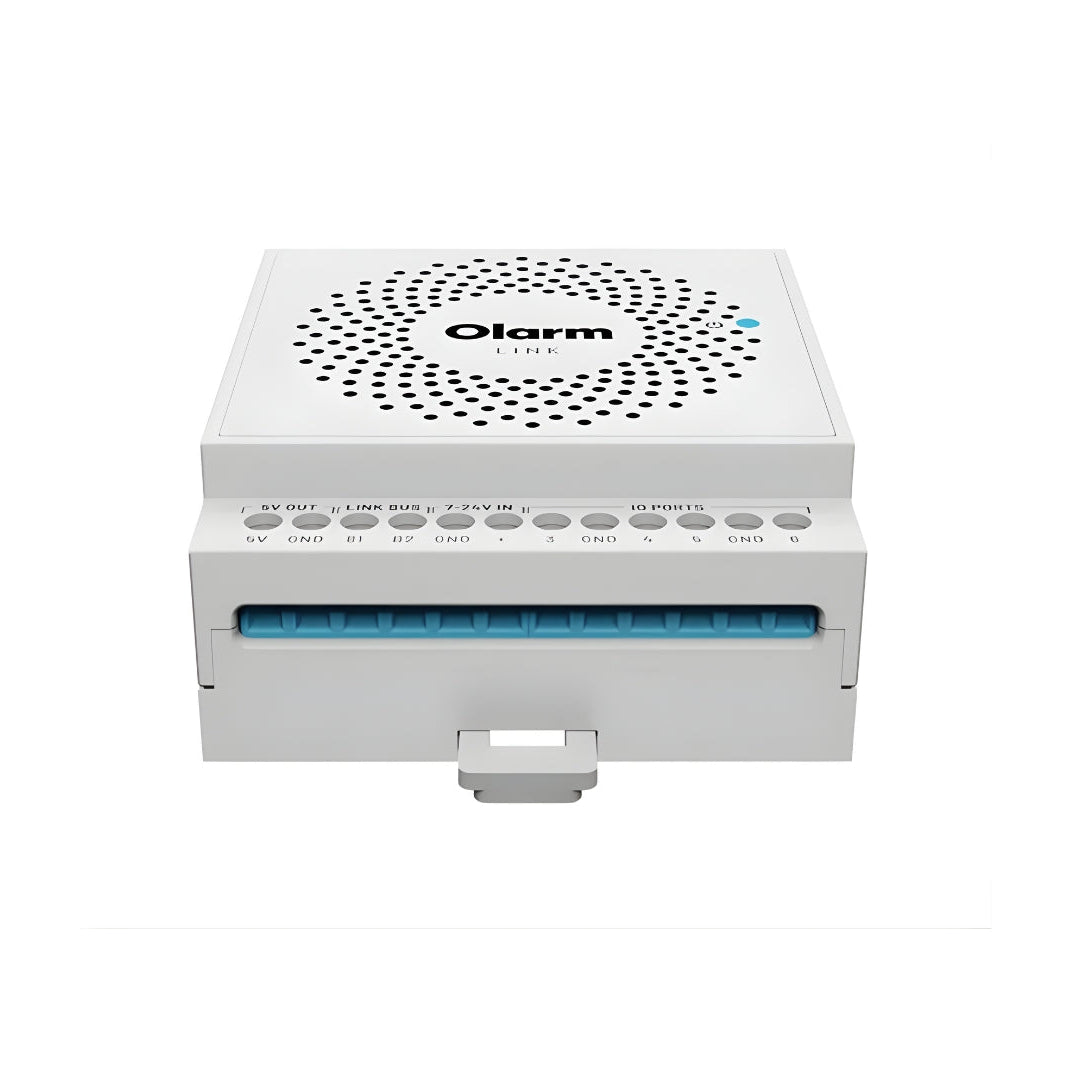

Olarm LINK Smart Extender

The Olarm LINK is a compact, DIN-rail mountable smart control and sensing device that extends the capabilities of an Olarm PRO communicator. It allows users to monitor, control, and receive real-time notifications for a wide range of peripherals directly from the Olarm app—perfect for integrating gates, garage motors, boom gates, water pumps, pool pumps, irrigation systems, lights, or other devices into your existing alarm setup.

Key Features:

• 6x Protected I/O Ports — General-purpose inputs/outputs (0–20VDC, 120mA max) for connecting sensors or controlling relays; can be used as inputs or open-drain outputs
• 2x High-Power Relays — 10A @ 240VAC / 10A @ 28VDC for heavy-duty switching (e.g., gate motors, garage doors)
• 1x Sensor Input — Supports 4–20mA or 0–15VDC analog sensors for monitoring (e.g., water levels, pressure)
• AI-Based State Detection — Smart interpretation of device status (e.g., LED detection on supported peripherals) for accurate reporting and alerts
• Tamper Protection — 2 tamper switches for added security
• RGB Status LED — Visual indication of power, connectivity, and device status
• One-Wire Serial Bus — Connects to Olarm PRO communicator; supports up to 8 LINK units per communicator for massive expandability
• DIN Rail Mountable — Includes plastic DIN rail clip for neat installation in panels or enclosures
• Requires Olarm PRO — Needs an active Olarm PRO communicator and subscription to function (app control, notifications, etc.)

Quick Specs:

• Model: Olarm LINK
• Dimensions: 87mm × 70mm × 37mm
• Enclosure: ABS resin
• Power: Supplied via Olarm PRO (low consumption)
• Weight: ~107g packaged (device + cable ~40g)
• Connectivity: Olarm One-Wire serial bus to PRO communicator
• Extras: Protected I/O, high-power relays, AI state detection, tamper switches

This versatile extender turns your Olarm PRO into a powerful smart home/security hub—control and monitor more devices from one app with reliable, real-time feedback. Ideal for upgrading existing alarm systems without replacing hardware.
