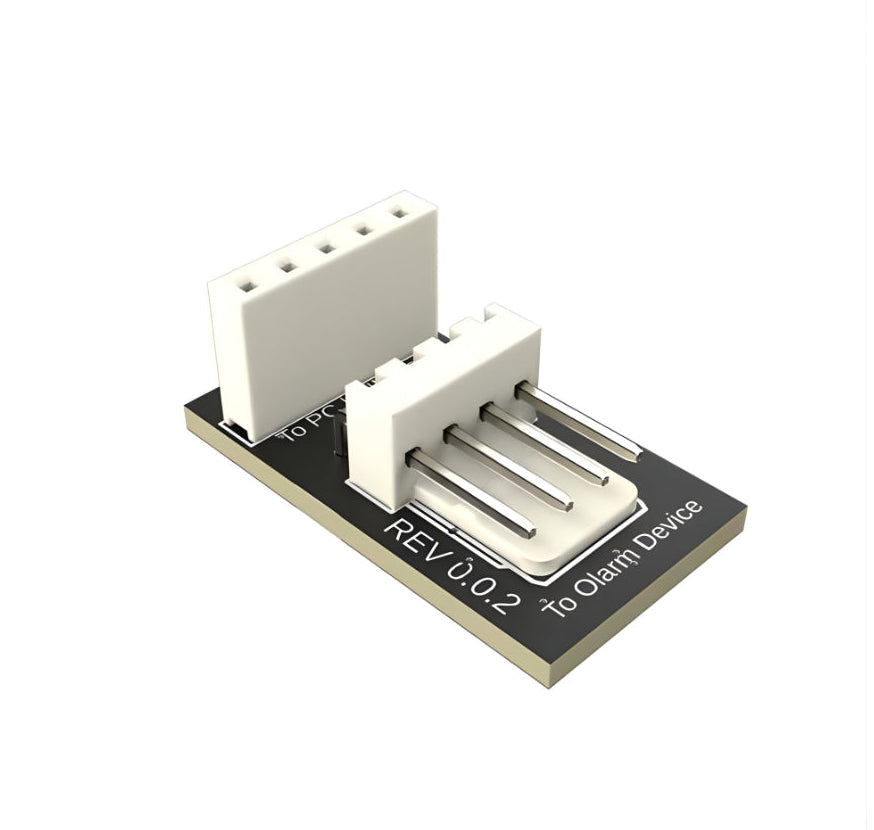

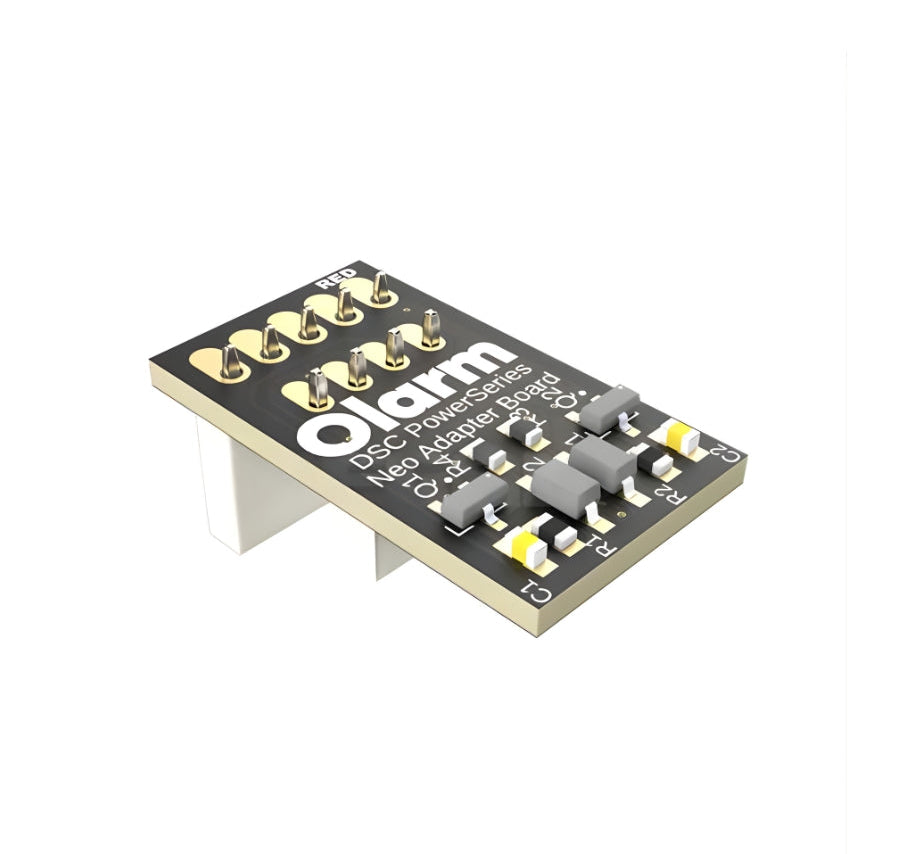

Olarm DSC PowerSeries Neo Adaptor Board

The Olarm DSC PowerSeries Neo Adaptor Board (also called DSC PowerSeries Neo Adapter Board or CP301-4 reference) is a dedicated interface module required to connect Olarm communicators (such as Olarm MAX, Olarm PRO 4G, or Olarm PRO) to DSC PowerSeries Neo alarm panels. It enables secure, reliable serial communication for remote arm/disarm, real-time status monitoring, event reporting, push notifications, and full app control via the Olarm mobile platform.

Key Details & Compatibility:

• Primary Use — Plugs directly into the PC Link 2 port on the DSC PowerSeries Neo panel to bridge the Olarm device for seamless integration.
• Compatible Panels — Works with all DSC PowerSeries Neo models (e.g., HS2016, HS2032, HS2064, HS2128, and variants like HS3032/HS3128 in some configs). Note: Panels with a single Com Port may have limited support—confirm your exact model.
• Installation — Simple plug-and-play:
  • Connect the 4-pin side of the reversible Olarm peripheral cable to the adaptor board.
  • Plug the adaptor board into the PC Link 2 port on the Neo panel.
  • Power the Olarm device (red wire to AUX+ on panel for 12V).
  • Enter the panel's Master Code in the Olarm App for full functionality.
• Why Needed — The DSC Neo uses a specific serial interface that requires this adaptor for proper Olarm communication (direct connection without the board won't work reliably).
• Additional Notes — Firmware on Olarm devices should be up to date (e.g., 1.6+ for Olarm MAX). The board supports Olarm's triple network redundancy (GSM, Wi-Fi, Ethernet in compatible models) for robust connectivity.

This adaptor is essential for adding smart, app-enabled features to your DSC PowerSeries Neo system—affordable and widely used in professional installations.
