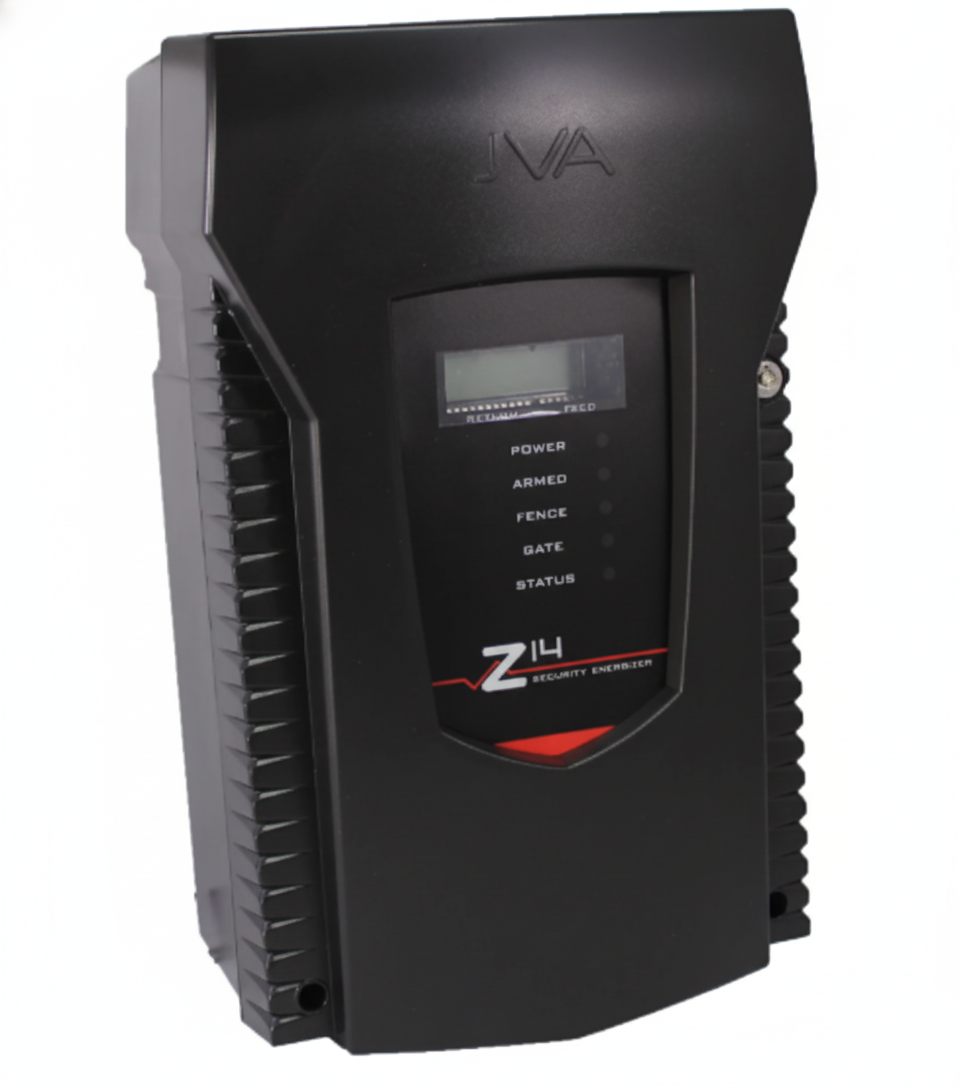

JVA Z14 1 Zone Security Energizer 4 Joule with LCD Display

The JVA Z14 is a compact, single-zone electric fence energizer tailored for effective perimeter security in homes, small businesses, or entry-level high-risk sites. With 4 Joules peak output energy, it provides strong, safe deterrence, while the built-in LCD display shows real-time fence voltages (feed/return), battery status, and programming settings for quick diagnostics.

Key Features:

• 4 Joules Peak Energy — High-voltage output (9.9kV peak no-load) for reliable performance on medium-length fences
• LCD Display — Monitors live out/return voltages, battery condition, and setup options at a glance
• High/Low Power Modes — Switchable for day/night use or power saving
• Built-in Battery Backup — Charger included; supports 12V 7Ah battery (up to ~24-hour runtime during outages)
• Alarm & Monitoring — Triggers on fence short/open, earth tamper, AC fail, low/bad battery; internal beeper + 12V switched outputs for siren/strobe
• Flexible Wiring — Conventional or Bi-Polar mode; adjustable voltage; 2 control inputs (NO/NC)
• Remote Capabilities — Programmable via optional Z-Series LCD/Touch keypad; supports PC (Perimeter Patrol software) or internet/GSM gateway control
• Safety & Protection — IEC60335-2-76 compliant; lightning/surge protection; tamper detection; enclosed high-voltage terminals
• Group Sync — Pulse-synchronize with other Z-Range units for multi-zone setups

Quick Specs:

• Model: Z14
• Zones: 1 (single-zone monitoring)
• Peak Energy: 4 Joules (limited to ~2.5J in group mode)
• Output Voltage: 9.9kV peak (no load)
• Pulse Rate: Locked at ~0.8–0.9 Hz
• Power Input: 16–18VAC (or 24VDC compatible); 12V battery support
• Enclosure: IP4x ABS plastic, wall-mountable (approx. 303 × 223 × 122 mm)
• Weight: ~1.9 kg (no battery); ~4 kg packed with battery
• Extras: Earth monitor input, dynamic voltage control to reduce arcing/false alarms, 3-year manufacturer warranty (excludes lightning damage)
