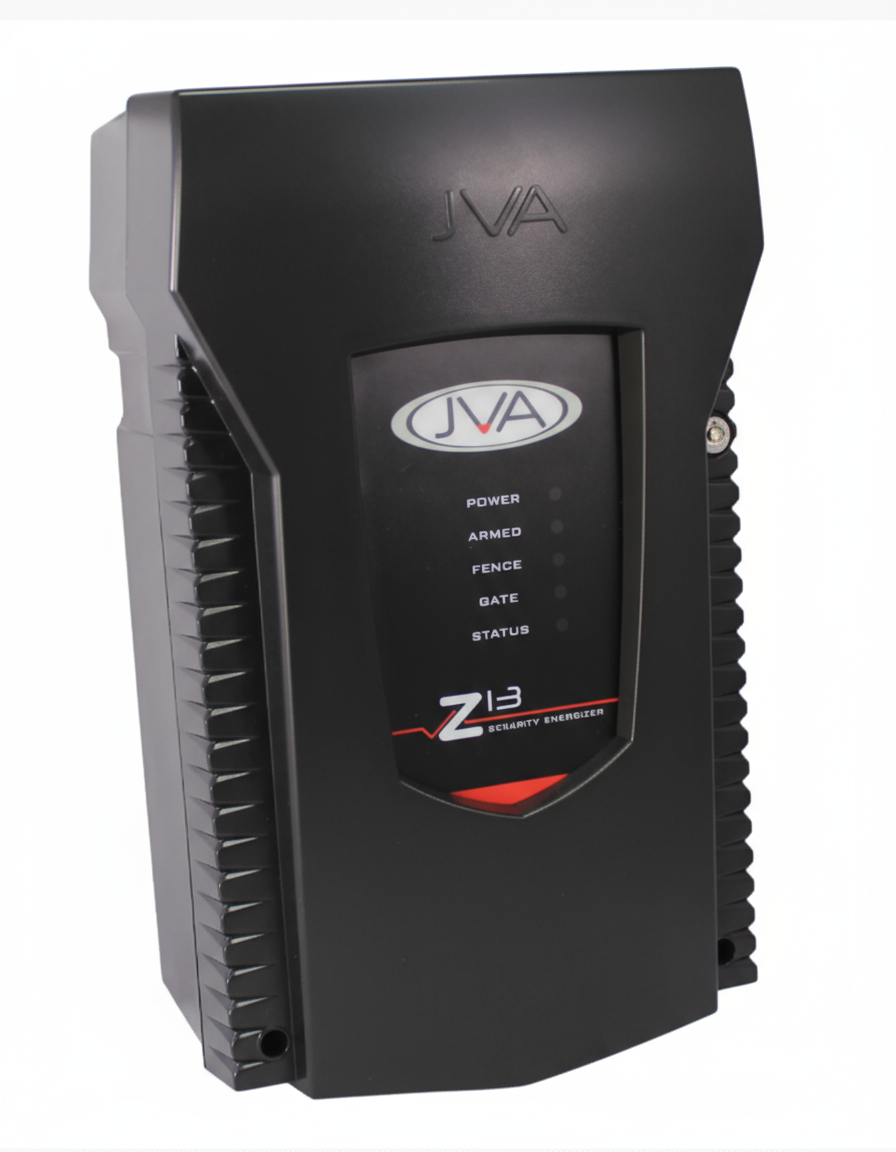

JVA Z13 1 Zone Security Energizer 2.8 Joule

The JVA Z13 is a compact, entry-level single-zone electric fence energizer ideal for smaller residential or light commercial perimeters. With 2.8 Joules peak output energy, it delivers a safe yet effective high-voltage shock while monitoring the fence for tampering—perfect for reliable, budget-friendly security.

Key Features:

• 2.8 Joules Peak Energy — Strong output (approx. 8.5–9kV peak no-load voltage) for effective deterrence on short to medium fences
• Single-Zone Monitoring — High-voltage live wire monitor triggers alarms on tampering/cuts; earth wire monitor detects grounding issues
• Gate Monitor Input — Dedicated input for gate status monitoring
• High/Low Power Modes — Switchable for energy saving or day/night operation
• Built-in Battery Backup — Charger included; space for 12V 7Ah battery (often bundled; provides hours of runtime during outages)
• Alarms & Outputs — Internal beeper + switched 12V outputs for siren/strobe; triggers on fence fault, earth tamper, AC fail, low battery
• Safety & Compliance — IEC60335-2-76 tested/approved; lightning/surge protection; tamper detection; enclosed high-voltage terminals
• Programmable Options — Compatible with optional Z-Range keypad for advanced settings; supports conventional wiring
• Simple & Economical — Entry-level Z-Range design for easy installation and operation

Quick Specs:

• Model: Z13
• Zones: 1 (single-zone monitoring)
• Peak Energy: 2.8 Joules
• Output Voltage: ~8.5–9kV peak (no load)
• Pulse Rate: ~0.8–1 Hz (standard)
• Power Input: 16–18VAC (or compatible DC); 12V battery support
• Enclosure: IP4x ABS plastic, wall-mountable (compact size approx. 300 × 220 × 120 mm)
• Extras: Earth monitor, dynamic voltage adjustment to reduce arcing/false alarms, networking potential with other Z-Range units
