HiLook by HikVision 16 Ch Turbo HD Kit - DVR - 16 x Vari Focul HD1080P Camera - 40M Night vision - 1TB HD - 200m Cable

The HiLook by Hikvision 16-Channel Turbo HD Varifocal DIY CCTV Kit is a flexible, high-performance analog surveillance package offering adjustable varifocal lenses for on-site customization of zoom and field of view, combined with reliable 1080P resolution and strong 40-meter night vision. As part of Hikvision's cost-effective HiLook line, this kit provides professional-grade features like Smart IR and true day/night switching at an accessible price point—ideal for medium to large installations such as homes, small businesses, retail shops, warehouses, farms, or perimeter monitoring. The coaxial-based setup ensures simple plug-and-play installation with no complex networking required—no monitor included.

Key Benefits:

• Sharp 1080P Full HD (1920 × 1080) resolution on all 16 channels for clear, detailed footage suitable for identification
• Manual varifocal lens (2.8–12 mm) on each camera allows adjustable focal length and field of view during installation—set wide (~90–100° horizontal at 2.8 mm) for broad coverage or zoom in (~25–30° horizontal at 12 mm) for focused, distant detail
• Smart IR technology provides bright, even black-and-white nighttime illumination up to 40 meters, with automatic intensity adjustment to prevent overexposure or hotspots
• True Day/Night (ICR) switching, 3D Digital Noise Reduction (DNR), and other image enhancements deliver clean, sharp images in varying lighting conditions
• Multi-format support (HDTVI primary, with compatibility for AHD/CVI/CVBS in many setups) for flexible use and easy integration
• Efficient H.264 compression (with H.265 support in hybrid DVR models) optimizes the 1TB hard drive for extended recording times
• Motion detection, scheduled recording, and remote viewing via HiLook/Hikvision mobile apps (smartphone) and PC software/web browser for convenient access from anywhere
• Rugged IP66-rated weatherproof and dust-resistant bullet cameras for dependable outdoor or indoor use

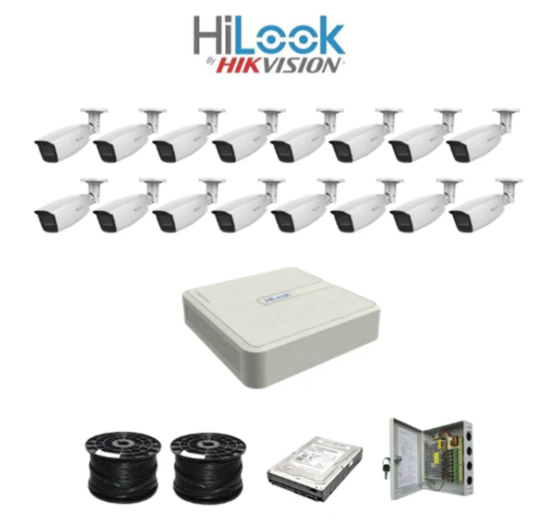

Kit Components:

• 1 × HiLook 16-Channel TVI 1080P Lite Hybrid DVR
  • Supports up to 16 analog camera inputs (HDTVI primary, with hybrid compatibility for AHD/TVI/CVI/CVBS signals)
  • Efficient H.264/H.265 compression for reduced storage usage and longer recording duration
  • HDMI and VGA outputs for easy connection to a local monitor or TV
  • One SATA interface with pre-installed 1TB hard drive for immediate continuous or motion-based recording
  • Built-in support for smartphone and PC remote viewing via HiLook/Hikvision apps and software
  • User-friendly interface with straightforward menu navigation for quick setup
• 16 × HiLook THC-B320 2MP Varifocal Turbo HD Bullet Cameras
  • High-quality 2-megapixel sensor for crisp Full HD (1080P) imaging
  • Manual varifocal lens (2.8–12 mm) for on-site adjustment of zoom and angle—perfect for tailoring coverage to specific scenes (wide for large areas or zoomed for distant targets)
  • Smart IR LEDs with up to 40 meters effective range for clear nighttime black-and-white footage
  • True Day/Night (ICR filter) for automatic color-to-monochrome transition
  • 3D Digital Noise Reduction (DNR) for reduced grain and sharper low-light images
  • HDTVI technology for high-definition video over coaxial cable
  • IP66-rated weatherproof and dust-resistant bullet housing for durable outdoor performance
• 1 × 1TB SATA Hard Drive — Pre-installed in the DVR for plug-and-play, reliable storage with good capacity for continuous recording
• 2 × 100m RG59 Coaxial Cables — High-quality cables for video transmission (200m total; suitable for initial runs or multiple shorter segments—additional cabling may be required for full 16-camera deployment)
• 32 × BNC Plugs — Extra connectors (often in packs of 3) for custom terminations, extensions, or repairs
• 16 × DC Plugs — Power connectors for secure attachment to each camera
• 1 × 12VDC 30A Power Supply — High-capacity adapter to reliably power all 16 cameras

This complete analog Turbo HD kit stands out with its adjustable varifocal lenses for scene-specific optimization, strong long-range night vision, and straightforward coaxial installation—ideal for users needing precise coverage and reliable performance without a full IP network. Mount the bullet cameras, adjust lenses on-site, run the coaxial cables, connect power, and enjoy detailed monitoring with remote access on your smartphone or PC. A practical, cost-effective choice for medium to large-scale security needs.
