HiLook 1080P COLORVU 8 Channel DVR & 8 Bullet Cameras DIY CCTV KIT

The HiLook 1080P ColorVu 8-Channel DVR & 8-Bullet Cameras DIY CCTV Kit is a cost-effective, high-performance analog surveillance solution from HiLook (by Hikvision), delivering vibrant full-color video monitoring 24/7—even at night. This kit leverages ColorVu technology for exceptional low-light performance, using a large F1.0 aperture and advanced sensors to capture rich, colorful details in minimal ambient light, supplemented by warm white LEDs for bright, natural nighttime imaging without switching to black-and-white mode. It's an ideal plug-and-play choice for homes, small businesses, shops, or entry-level security needs, with wide-area coverage and straightforward DIY installation—no professional required.

Key Benefits:

• True 1080P (1920 × 1080) Full HD resolution on all channels for sharp, detailed footage suitable for identification
• ColorVu technology ensures 24/7 full-color imaging day and night, providing better situational awareness (e.g., distinguishing clothing colors, vehicle details, or other critical elements) compared to traditional IR cameras
• Wide-angle 2.8mm fixed lens on each camera offers expansive coverage (typically horizontal FOV around 100-105°, diagonal up to 125°) to monitor broad areas like driveways, yards, storefronts, or perimeters efficiently
• Warm white LED illumination for effective nighttime color vision (commonly up to 20-40 meters, with smart activation to minimize light pollution)
• Multi-format support (Turbo HD/TVI, AHD, CVI, CVBS) for flexible compatibility
• Motion detection, scheduled recording, and remote viewing via HiLook mobile apps, web browsers, or PC software for convenient access from anywhere
• Weather-resistant outdoor cameras for reliable, year-round use

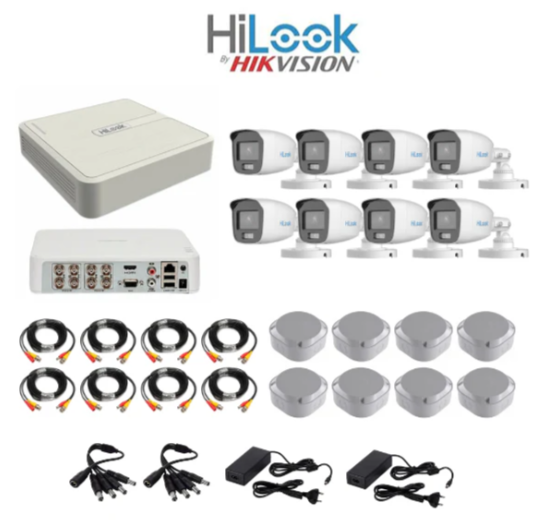

Kit Components:

• 1 × HiLook 8-Channel Turbo HD DVR
  • Supports up to 8 analog camera inputs with auto-detection for Turbo HD/TVI, AHD, CVI, CVBS signals
  • Efficient H.265/H.264 compression to maximize storage and extend recording duration
  • HDMI and VGA outputs for easy connection to a monitor or TV
  • One SATA interface for adding a hard drive (HDD not included in this base kit; supports capacities up to 6-10 TB depending on model)
  • User-friendly interface with simple menu navigation for quick setup
• 8 × HiLook 2MP ColorVu 1080P Bullet Cameras
  • High-quality 2-megapixel sensor for crisp Full HD (1080P) imaging
  • Fixed 2.8mm wide-angle lens for broad field of view (e.g., horizontal ~102-105°, vertical ~54-55°, diagonal ~121-125° depending on exact model)
  • ColorVu-enabled with F1.0 aperture and 3D DNR for clean, vibrant 24/7 color footage in low light
  • Built-in warm white LEDs for bright, full-color night vision (effective range typically 20 meters or more)
  • IP67-rated weatherproof and dust-resistant housing (some variants include IK08 vandal resistance) for dependable outdoor placement
  • Digital noise reduction and wide dynamic range support for better handling of challenging lighting
• 8 × 20-Meter Pre-Made Connection Cables — Ready-to-use coaxial cables (typically RG59 with BNC connectors) integrating video and power for simple, extended runs
• 8 × Junction Boxes — Protective enclosures for secure, weatherproof cable connections and clean camera mounting
• 2 × 1-to-4 DC Power Leads — Power splitters to distribute supply efficiently across multiple cameras
• 2 × 5-Amp Power Supply Adapters — Stable adapters providing reliable power for the full system

This DIY analog CCTV kit emphasizes affordability, ease of setup, and standout 24/7 color performance—perfect for users seeking enhanced nighttime visibility without transitioning to a full IP system. Simply add a compatible hard drive for recording, mount the cameras, connect the cables, and enjoy effective wide-area security with remote monitoring capabilities. Great for straightforward, professional-grade protection in everyday environments.
