Hikvision 4-Channel Turbo HD System with Audio over Coaxial – 1080P Lite DVR, 2 Bullet + 2 Turret Dual-Light Audio Cameras, 320GB HDD, 100m Cable

Hikvision is a world-leading provider of advanced video surveillance technology, delivering professional-grade systems with outstanding image quality, intelligent analytics, and seamless integration for dependable security.

This versatile Turbo HD kit features audio over coaxial (AOC) technology—no separate audio cables needed! High-quality built-in microphones on all four cameras transmit clear one-way audio (sound capture) directly alongside video over the RG59 coaxial cable, adding valuable context to recordings like voices, footsteps, alarms, or environmental sounds for better incident understanding and evidence.

The compact DS-7104HGHI-M1 4-channel 1080P Lite Mini 1U H.265 DVR supports efficient H.265 Pro+/H.265 Pro/H.265 compression to optimize storage and bandwidth. It includes deep learning-based Motion Detection 2.0 for smart human and vehicle classification, greatly reducing false alarms from non-relevant motion (e.g., animals, trees, or lights). With hybrid inputs (HDTVI/AHD/CVI/CVBS + up to 5 IP channels at 2MP), coaxial audio support, encoding up to 1080p Lite @15 fps, and long-range transmission (up to 1200m for 720p HDTVI), it's flexible and future-ready.

Cameras Included:

• 2 × DS-2CE16D0T-LPFS 2MP Dual-Light Audio Fixed Mini Bullet Cameras — Outdoor-oriented with IP67 weatherproof rating, rugged plastic build, and adjustable angles (pan/tilt/rotation).
  • Smart-Hybrid illumination: IR up to 25m (discreet black-and-white) + white light up to 20m (vibrant full-color).
  • Fixed lens options: 2.8mm (~101° horizontal FOV) or 3.6mm (~78° horizontal FOV) for wide or focused coverage.
  • Built-in mic with ~5m pickup radius.
• 2 × DS-2CE76D0T-LPFS 2MP Dual-Light Audio Fixed Turret Cameras — Sleek dome/turret design (often preferred for discreet or vandal-resistant indoor/outdoor use), with IP67 protection and easy ceiling/wall mounting.
  • Smart-Hybrid illumination: IR up to 20m (black-and-white) + white light up to 20m (full-color).
  • Same fixed lens options: 2.8mm (~101° horizontal FOV) or 3.6mm (~78° horizontal FOV).
  • Built-in mic with ~5m pickup radius.

All cameras deliver crisp 2MP (1920×1080) resolution, one-port four-signal switching (TVI/AHD/CVI/CVBS) for broad compatibility, digital WDR for balanced exposure in challenging lighting, and smart features like auto day/night switching via ICR. The mix of bullet and turret styles provides flexible placement—bullets for directional outdoor coverage, turrets for broader or aesthetic indoor/outdoor spots.

A 320GB HDD offers reliable storage (typically 1–2 weeks of 1080P recording, depending on settings, motion, and activity), and the kit includes all essentials for straightforward wiring.

Installation is simple DIY—no specialist required! Plug-and-play coaxial setup with the included 100m RG59 cable allows easy camera positioning around your property.

Perfect for homes, small businesses, retail shops, offices, garages, or any space needing HD video plus audio for enhanced monitoring, deterrence, and clearer evidence day and night.

Key Features:

• 1080P (2MP) high-definition resolution across all channels for sharp, detailed footage
• Audio over coaxial with built-in mics—no extra cabling for sound capture
• Dual-light (Smart-Hybrid) night vision: IR for discreet B&W + white light for full-color imaging (up to 25m IR / 20m white light on bullets; 20m both on turrets)
• Motion Detection 2.0 with human/vehicle filtering for precise, low-false-alarm alerts
• Wide fields of view (e.g., 101° horizontal with 2.8mm lens) for broad area coverage
• H.265 compression for efficient storage and reduced bandwidth needs
• IP67-rated weatherproof cameras (both bullet and turret) for reliable outdoor use
• Multi-format support (TVI/AHD/CVI/CVBS) and DVR with HDMI/VGA outputs, live view, playback, motion notifications, and often Hik-Connect mobile app remote access

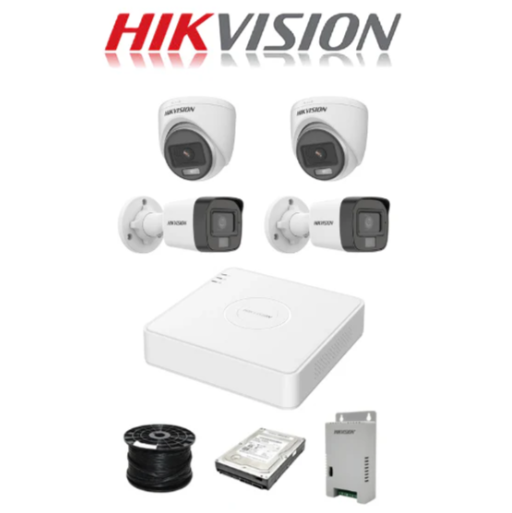

What's Included in the Kit:

• 1 × Hikvision DS-7104HGHI-M1 4-Channel 1080P Lite Mini 1U H.265 DVR (supports coaxial audio, Motion Detection 2.0, hybrid inputs)
• 2 × Hikvision DS-2CE16D0T-LPFS 2MP Dual-Light Audio Fixed Mini Bullet Cameras (1080P, built-in mic, 2.8mm or 3.6mm lens)
• 2 × Hikvision DS-2CE76D0T-LPFS 2MP Dual-Light Audio Fixed Turret Cameras (1080P, built-in mic, 2.8mm or 3.6mm lens)
• 1 × 320GB HDD (for immediate recording)
• 1 × 5A PSU Box (power supply unit for the system)
• 1 × 100m RG59 Coaxial Cable (for flexible multi-camera wiring)
• 4 × DC Plugs (for camera power)
• 8 × BNC Connections (for secure coaxial terminations)
• No monitor/screen included (connect via HDMI or VGA to your TV/monitor)

Experience smarter, more informative security with video and audio in one easy system—this Hikvision Turbo HD kit with coaxial audio provides professional protection tailored for real-world needs!
