Hikvision 16ch Turbo HD Kit - HD DVR - 16 x 1080p ColorVu cameras - 40m Full colour night vision - 1TB HDD - 100m Cable

The Hikvision 16-Channel Turbo HD ColorVu DIY CCTV Kit is a robust, high-capacity analog surveillance system engineered for superior 24/7 full-color imaging in demanding environments. Powered by Hikvision's proven ColorVu technology, this kit captures vibrant, detailed footage day and night using a bright F1.0 aperture and powerful white light illumination—ensuring clear visibility of colors, clothing, vehicle details, faces, and other critical elements even in very low or complete darkness. With support for 16 cameras, efficient H.265 compression, and simple coaxial-based installation, it's an excellent choice for large homes, commercial buildings, warehouses, retail complexes, parking areas, or perimeter-heavy properties—no monitor included.

Key Benefits:

• True 2MP Full HD (1920 × 1080) resolution on all 16 channels for sharp, reliable identification-quality video
• ColorVu technology delivers authentic 24/7 colorful imaging with high low-light sensitivity (typically 0.0005–0.001 Lux @ F1.0), enhanced by white light LEDs for bright, natural nighttime color (effective range up to 40 meters for strong, even illumination)
• Wide-angle fixed lens (commonly 2.8mm in this series) provides broad coverage (horizontal FOV typically ~98–105°, diagonal up to ~115–125°) to monitor expansive zones like loading docks, shop floors, perimeters, or large indoor spaces efficiently
• Multi-signal compatibility (TVI/AHD/CVI/CVBS) for flexible integration and straightforward upgrades
• H.265 compression in the DVR significantly reduces storage demands and extends recording time on the included 1TB hard drive
• Motion detection, scheduled recording, smart search for quick event playback, and remote viewing via Hikvision mobile apps, web browsers, or PC software for convenient access anytime
• Rugged IP67-rated weatherproof and dust-resistant cameras for reliable outdoor or harsh-environment deployment

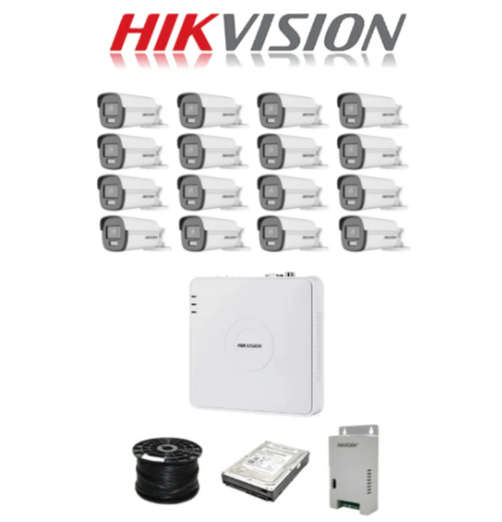

Kit Components:

• 1 × Hikvision 16-Channel 1080P Lite Mini 1U H.265 DVR (Model: DS-7116HGHI-F1 or equivalent)
  • Supports up to 16 analog camera inputs with adaptive multi-format detection (TVI/AHD/CVI/CVBS)
  • Advanced H.265/H.264 compression for efficient encoding, lower storage usage, and longer recording duration
  • HDMI and VGA outputs (up to 1920 × 1080 resolution) for easy local monitor connection
  • One SATA interface with pre-installed 1TB hard drive for immediate continuous or motion-based recording
  • Compact mini 1U design with intuitive menu system for fast setup and user-friendly operation
• 16 × Hikvision 2MP ColorVu Bullet Cameras (Model: DS-2CE12DF0T-F or equivalent)
  • High-quality 2-megapixel sensor for crisp Full HD (1080P) imaging
  • 24/7 color imaging powered by F1.0 aperture for outstanding low-light performance
  • 3D Digital Noise Reduction (3D DNR) for clean, sharp images with minimal grain
  • Fixed lens (typically 2.8mm wide-angle for broad coverage; some variants may include 3.6mm or 6mm)
  • Up to 40 meters white light distance for bright, vivid full-color night vision (activates as needed for effective illumination)
  • One-port switchable output (TVI/AHD/CVI/CVBS) for simple compatibility
  • IP67-rated water and dust-resistant bullet housing for durable outdoor or exposed indoor use
• 1 × 1TB SATA Hard Drive — Pre-installed in the DVR for plug-and-play, reliable video storage right out of the box
• 1 × 100m RG59 Coaxial Cable — High-quality cable for video transmission (suitable for initial runs; additional cabling may be needed for full 16-camera deployment)
• 32 × BNC Plugs — Extra connectors (often in packs of 3) for custom terminations, extensions, or repairs
• 16 × DC Plugs — Power connectors for secure attachment to each camera
• 1 × 12VDC 30A Power Supply — High-capacity, multi-output adapter to reliably power all 16 cameras

This powerful analog Turbo HD kit excels in large-scale applications with exceptional nighttime color performance and efficient storage—ideal for users seeking vivid, 24/7 evidence without transitioning to a full IP network. Mount the bullet cameras, run the coaxial cables, connect power, and enjoy comprehensive, colorful coverage with remote access on your phone or computer. A professional-grade, value-packed solution for extensive, no-fuss security.
