HikVision 16Ch Turbo HD Kit - Embedded DVR - 16 x Vari Focul HD1080P Camera - 40M Night vision - 2TB HD - 200m Cable

The Hikvision 16-Channel Turbo HD AcuSense Varifocal DIY CCTV Kit is a versatile, intelligent analog surveillance package combining sharp 1080P resolution, adjustable varifocal lenses for customizable field of view, powerful 40-meter night vision, and advanced AcuSense deep-learning technology to significantly reduce false alarms. This kit is perfect for medium to large installations—such as homes, businesses, warehouses, retail premises, parking areas, or perimeters—where flexible camera positioning, accurate human/vehicle detection, and reliable performance are essential. The coaxial-based setup keeps installation straightforward, with no network configuration required—no monitor included.

Key Benefits:

• Crisp 1080P Full HD (1920 × 1080) resolution across all 16 channels for clear, detailed footage suitable for identification
• AcuSense deep-learning algorithm classifies targets as human or vehicle, dramatically reducing false alarms from irrelevant motion (animals, leaves, shadows, weather, etc.) while providing face detection support for enhanced detail capture
• Manual varifocal lens (2.7–13.5 mm) on each camera allows on-site adjustment of field of view and zoom (wide ~100° horizontal at 2.7 mm to narrower ~25–30° at 13.5 mm) for precise coverage of specific zones—ideal for tailoring shots to entrances, driveways, loading bays, or distant targets
• Smart IR illumination up to 40 meters delivers bright, even black-and-white nighttime visibility in complete darkness, with automatic adjustment to prevent hotspots
• Multi-signal compatibility (TVI/AHD/CVI/CVBS) plus IP expansion (up to 24 network cameras) for flexible system design and future upgrades
• Efficient H.265 Pro+/H.265 compression optimizes the 2TB hard drive for longer continuous or motion-triggered recording
• Motion detection, perimeter protection, scheduled recording, and remote viewing via Hikvision mobile apps, web browsers, or PC software for convenient access anytime
• Rugged IP67-rated weatherproof and dust-resistant bullet cameras for dependable outdoor or indoor deployment

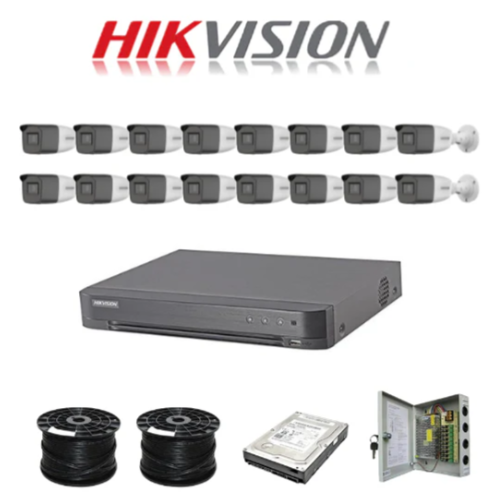

Kit Components:

• 1 × Hikvision 16-Channel 1080P 1U H.265 AcuSense DVR (Model: iDS-7216HQHI-M1/S or equivalent)
  • Supports up to 16 analog inputs with adaptive 5-signal detection (HDTVI/AHD/CVI/CVBS/IP)
  • AcuSense features: human/vehicle target classification for false alarm reduction and face detection for added intelligence
  • Advanced H.265 Pro+/H.265/H.264 compression for efficient storage and bandwidth use
  • Encoding up to 1080p @ 15 fps (with higher frame rates possible in lower resolutions or Lite modes)
  • HDMI and VGA outputs for easy local monitor connection
  • One SATA interface with pre-installed 2TB hard drive for immediate, high-capacity recording
  • Supports up to 24 IP camera inputs (hybrid mode) for scalable expansion
• 16 × Hikvision 2MP Manual Varifocal Bullet Cameras (Model: DS-2CE19D0T-VFIT3F(C) or equivalent)
  • High-quality 2-megapixel sensor for crisp Full HD (1080P) imaging
  • Manual varifocal lens (2.7–13.5 mm) for adjustable focal length and field of view—set wide for broad coverage or zoom in for distant detail during installation
  • Smart IR LEDs with up to 40 meters effective range for clear nighttime black-and-white footage
  • One-port switchable output (TVI/AHD/CVI/CVBS) for simple compatibility
  • IP67-rated weatherproof and dust-resistant bullet housing for durable outdoor performance
  • Digital Wide Dynamic Range (DWDR) and noise reduction for balanced images in challenging or backlit conditions
• 1 × 2TB SATA Hard Drive — Pre-installed in the DVR for plug-and-play, reliable storage with ample capacity for extended recording
• 2 × 100m RG59 Coaxial Cables — High-quality cables for video transmission (200m total; suitable for initial runs or multiple shorter segments—additional cabling may be required for full 16-camera deployment)
• 32 × BNC Plugs — Extra connectors (often in packs of 3) for custom terminations, extensions, or repairs
• 16 × DC Plugs — Power connectors for secure attachment to each camera
• 1 × 12VDC 20A Power Supply — High-capacity adapter to reliably power all 16 cameras

This powerful analog Turbo HD kit stands out with its adjustable lenses for scene-specific optimization, smart AI-driven false alarm filtering, and strong night vision—ideal for users needing precise coverage, minimized unnecessary alerts, and professional-grade reliability without a full IP network. Mount the varifocal bullet cameras, adjust lenses on-site, run the coaxial cables, connect power, and enjoy detailed, intelligent monitoring with remote access on your devices. A flexible, high-value solution for demanding, large-area security requirements.
