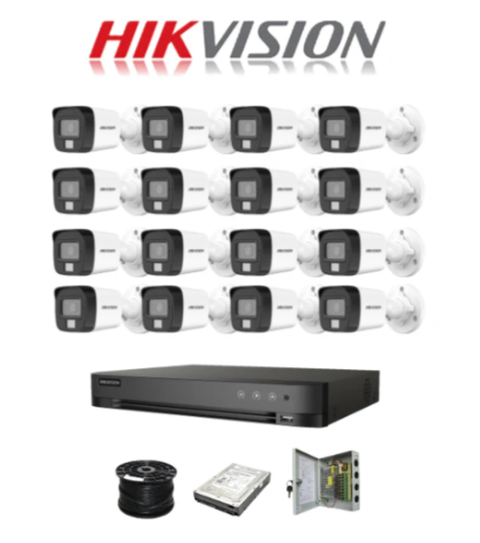

Hikvision 16ch 5MP Turbo HD kit - HD DVR - 16 x 3K 5MP Smart Hybrid Light Audio Camera - 2TB HDD - 100m Cable - 20m Night vision

The Hikvision 16-Channel 3K/5MP Turbo HD AcuSense Smart Hybrid Audio DIY CCTV Kit is a high-resolution, intelligent analog surveillance package that combines ultra-sharp 5-megapixel (3K) imaging, built-in audio recording, advanced false alarm reduction, and flexible Smart Hybrid Light technology for adaptable day/night performance. This kit excels in medium to large installations—such as homes, small to medium businesses, retail shops, warehouses, offices, or perimeter-heavy properties—where detailed footage, real-time sound evidence, minimized false alerts, and reliable low-light visibility are priorities. The coaxial-based setup keeps installation simple and cost-effective—no monitor included.

Key Benefits:

• Exceptional 3K/5MP (2960 × 1665) resolution on all 16 channels for significantly higher detail and identification quality compared to standard 1080P systems
• AcuSense deep-learning technology reduces false alarms by classifying targets as human or vehicle (typically supporting Motion Detection 2.0 across channels or advanced perimeter protection on select channels)
• Smart Hybrid Light offers three intelligent nighttime modes: standard IR (black-and-white up to 30 meters for discreet monitoring), white light (full-color illumination up to 20 meters), or Smart mode (defaults to IR, auto-switches to white light on detected human/vehicle events for color footage only when relevant—minimizing light pollution, insect attraction, and unnecessary brightness)
• Built-in microphone on each camera enables high-quality audio recording over coaxial cable—no extra audio wiring required—for added context (voices, sounds, events)
• Efficient H.265 Pro+ compression optimizes the 2TB hard drive for longer continuous or event-based recording while preserving excellent image quality
• Multi-format compatibility (TVI/AHD/CVI/CVBS) plus hybrid IP support (up to 24 network cameras) for flexible system design and future upgrades
• Remote viewing, live monitoring, playback, and configuration via Hikvision mobile apps, web browsers, or PC software, with smart event search and motion-triggered alerts
• Rugged IP67-rated weatherproof and dust-resistant bullet cameras for dependable outdoor or indoor use

Kit Components:

• 1 × Hikvision 16-Channel 1U AcuSense Turbo HD DVR (Model: iDS-7216HQHI-M1/M2/S or equivalent)
  • Supports up to 16 analog inputs with adaptive 5-signal detection (HDTVI/AHD/CVI/CVBS/IP)
  • AcuSense deep-learning features: human/vehicle target classification for false alarm reduction (Motion Detection 2.0 or perimeter protection support)
  • Advanced H.265 Pro+/H.265/H.264 compression for efficient storage and bandwidth
  • Encoding up to 3K/5MP Lite @ 12 fps (or higher frame rates in lower resolutions)
  • HDMI and VGA outputs for easy local monitor connection
  • One SATA interface with pre-installed 2TB hard drive for immediate high-capacity recording
  • Hybrid support for up to 24 IP camera inputs for scalable expansion
• 16 × Hikvision 3K Smart Hybrid Light Audio Fixed Bullet Cameras
  • High-quality 5-megapixel (2960 × 1665) sensor for crisp 3K imaging
  • Smart Hybrid Light with IR (up to 30 meters black-and-white) and white light (up to 20 meters full-color)—Smart mode intelligently activates color on relevant events
  • Built-in high-quality microphone for real-time audio over coaxial cable
  • Fixed lens (typically 2.8mm wide-angle for broad coverage ~100–110° horizontal FOV or similar)
  • One-port switchable output (TVI/AHD/CVI/CVBS) for versatile compatibility
  • IP67-rated weatherproof and dust-resistant bullet housing for durable outdoor performance
  • 3D Digital Noise Reduction (3D DNR) and basic WDR for clean images in varying lighting
• 1 × 2TB SATA Hard Drive — Pre-installed in the DVR for plug-and-play, reliable storage with ample capacity for extended recording
• 1 × 100m RG59 Coaxial Cable — High-quality cable for video and audio transmission (suitable for initial runs; additional cabling may be required for full 16-camera deployment)
• 32 × BNC Plugs — Extra connectors (often in packs of 3) for custom terminations, extensions, or repairs
• 16 × DC Plugs — Power connectors for secure attachment to each camera
• 1 × 12VDC 20A Power Supply — High-capacity adapter to reliably power all 16 cameras

This powerful analog Turbo HD kit stands out with its 3K/5MP clarity, built-in audio, smart hybrid lighting, and intelligent false alarm filtering—ideal for users who want enhanced detail, sound evidence, adaptable night vision, and professional-grade reliability without transitioning to a full IP network. Mount the bullet cameras, run the coaxial cables, connect power, and enjoy detailed video with audio plus remote access on your devices. A high-value, comprehensive solution for medium to large-scale security needs.
