Hikvision 16 Channel 3K 5MP 20M ColorVu Kit | 16x 5MP SMART HYBRID Colorvu Cameras | 2TB HDD | 100m RG59

The Hikvision 16-Channel 3K/5MP Turbo HD ColorVu Smart Hybrid DIY CCTV Kit is a high-resolution, intelligent analog surveillance package combining advanced 5-megapixel (3K) imaging with ColorVu for vivid 24/7 full-color footage and Smart Hybrid Light technology for flexible, event-driven nighttime illumination. This kit includes a 16-channel AcuSense DVR with deep-learning-based false alarm reduction (focusing on human and vehicle classification to minimize notifications from irrelevant motion like animals, leaves, or weather), sixteen 5MP Smart Hybrid ColorVu cameras offering up to 20 meters of adaptive night vision, a generous 2TB hard drive for extended storage, and essential cabling/power components. It's an excellent choice for medium to large properties such as homes, businesses, warehouses, retail spaces, or perimeters needing sharp detail, smart detection, and reliable low-light performance—no monitor included.

Key Benefits:

• Ultra-clear 5MP (typically 2960 × 1665 or 2560 × 1944) resolution across all 16 channels for enhanced detail and identification compared to standard 1080P
• ColorVu technology ensures true 24/7 colorful imaging with a large F1.0 aperture for superior low-light sensitivity, capturing vibrant colors and fine details day or night
• Smart Hybrid Light provides three intelligent modes: IR (black-and-white for discreet night vision), white light (full-color illumination), or Smart mode (defaults to IR, auto-switches to white light on detected human/vehicle events for color capture only when relevant—reducing light pollution, insect attraction, and unnecessary brightness)
• AcuSense deep-learning false alarm filter (often 4-channel or all-channel support in compatible models) classifies targets as human/vehicle to drastically cut false alerts from non-threats
• Wide-angle fixed lens (commonly 2.8mm or 3.6mm) on cameras delivers broad coverage (horizontal FOV typically ~90-110° depending on lens) to oversee large areas like driveways, yards, loading zones, or shop floors efficiently
• Multi-format compatibility (Turbo HD/TVI, AHD, CVI, CVBS) for flexible setup and upgrades
• Efficient H.265/H.265+ compression in the DVR optimizes the 2TB storage for longer recording times and smooth performance
• Motion detection 2.0, perimeter protection, scheduled recording, and remote viewing via Hikvision mobile apps, web browsers, or PC software for convenient monitoring anytime
• Rugged, weather-resistant cameras suitable for reliable outdoor or indoor deployment

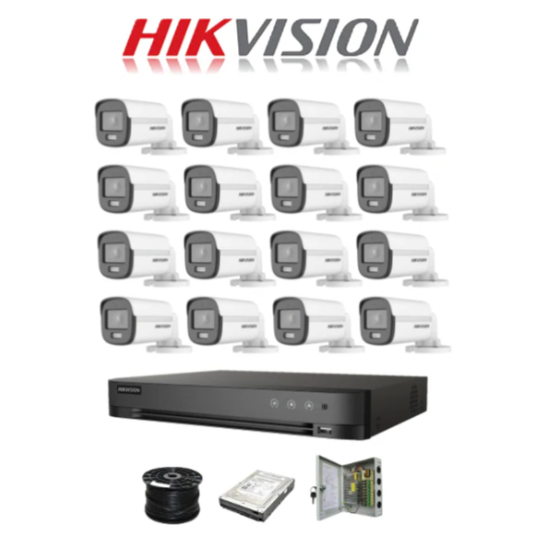

Kit Components:

• 1 × Hikvision 16-Channel AcuSense DVR
  • Supports up to 16 analog camera inputs with adaptive multi-format detection (TVI/AHD/CVI/CVBS) and potential IP expansion
  • Deep-learning AcuSense features including human/vehicle classification for false alarm reduction (typically up to 4-ch advanced perimeter protection or all-channel motion detection 2.0 in compatible models)
  • Efficient H.265+/H.265/H.264 compression to maximize storage efficiency and bandwidth
  • HDMI and VGA outputs for easy local monitor connection
  • One or more SATA interfaces with pre-installed 2TB hard drive for immediate continuous or event-based recording
• 16 × Hikvision 5MP 3K ColorVu Smart Hybrid Light Bullet/Turret Cameras
  • High-quality 5-megapixel sensor for sharp 3K/5MP resolution imaging
  • 24/7 color imaging powered by F1.0 aperture and advanced low-light sensor for exceptional detail in minimal light
  • Smart Hybrid Light with IR (up to 20 meters black-and-white) and white light options—Smart mode activates color only on relevant motion/events for intelligent, low-impact nighttime monitoring
  • Fixed lens (typically 2.8mm wide-angle for broad view or 3.6mm balanced)
  • 3D Digital Noise Reduction (3D DNR) and DWDR for clean, balanced images in challenging lighting
  • IP67-rated weatherproof and dust-resistant housing for durable outdoor performance
• 1 × 2TB SATA Hard Drive — Pre-installed in the DVR for plug-and-play, ample continuous recording and playback capacity
• 1 × 20A 18-Channel PSU Box — High-capacity power supply unit to reliably power all 16 cameras (with extra channels for spares or expansion)
• 1 × 100m RG59 Coaxial Cable — Quality cable for video transmission (suitable for initial runs; additional cabling may be required for full 16-camera setup)
• 8 × DC Plugs — Power connectors for camera attachments (additional may be needed or included variably)
• 16 × BNC Connections — Extra BNC connectors for custom terminations, extensions, or repairs

This comprehensive analog Turbo HD kit delivers professional-grade 5MP clarity, smart AI-driven detection, and adaptable nighttime color performance in a straightforward coaxial setup—ideal for users wanting reduced false alarms, vivid evidence, and scalable coverage without a full IP transition. Mount the cameras, run the coaxial cables, connect power, and enjoy detailed, intelligent monitoring with remote access on your devices. A high-value, no-fuss solution for demanding, large-area security needs.
