HikVision 16 Ch Turbo HD Kit - Embedded DVR - 16 x HD1080P Camera - 80M Night vision - 2TB HD - 200m Cable

The Hikvision 16-Channel Turbo HD 1080P DIY CCTV Kit is a robust, long-range analog surveillance package designed for reliable Full HD monitoring over large areas or extended perimeters. Featuring powerful infrared night vision reaching up to 80 meters, this kit excels in low-light or complete darkness scenarios, delivering clear black-and-white footage for effective identification at distance. With 16 high-quality bullet cameras, a compact embedded DVR, generous 2TB storage, and ample cabling, it's well-suited for homes, farms, warehouses, commercial sites, parking lots, or perimeter-heavy properties requiring broad, dependable coverage—no monitor included.

Key Benefits:

• Sharp 1080P Full HD (1920 × 1080) resolution on all 16 channels for clear, detailed video suitable for evidence and recognition
• Extended Smart IR illumination up to 80 meters for bright, even nighttime visibility in total darkness (with automatic adjustment to avoid hotspots or overexposure)
• Flexible fixed lens options (3.6mm for balanced coverage, 6mm/8mm/12mm for narrower, longer-range focus) to tailor field of view to specific needs (e.g., wide scenes or distant targets)
• Multi-signal compatibility (TVI/AHD/CVI/CVBS) for easy integration and future upgrades
• H.264 compression in the DVR (with H.265 capability in many Lite models) optimizes the 2TB hard drive for extended continuous or motion-based recording
• Motion detection, scheduled recording, and remote viewing via Hikvision mobile apps, web browsers, or PC software for convenient monitoring from anywhere
• Rugged IP67-rated weatherproof and dust-resistant bullet cameras for tough outdoor or exposed indoor use

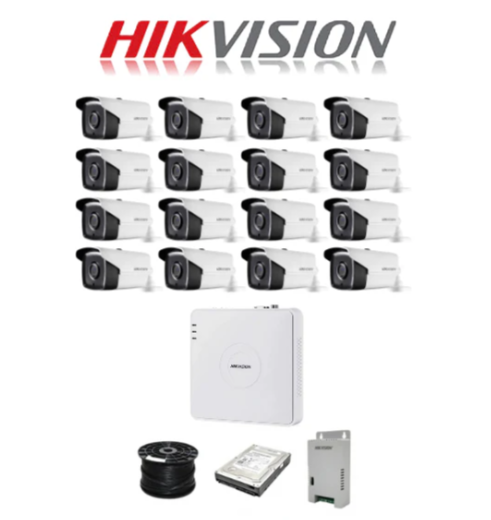

Kit Components:

• 1 × Hikvision 16-Channel 1080P Lite Mini 1U H.264 DVR (Model: DS-7116HGHI-F1 or equivalent)
  • Supports up to 16 analog camera inputs with adaptive multi-format detection (TVI/AHD/CVI/CVBS)
  • Efficient H.264/H.265 compression for reduced storage usage and longer recording times
  • HDMI and VGA outputs (up to 1920 × 1080 resolution) for simple local monitor connection
  • One SATA interface with pre-installed 2TB hard drive for immediate, high-capacity recording
  • Compact mini 1U design with straightforward menu system for fast setup and operation
• 16 × Hikvision 2MP Fixed Bullet Cameras (Model: DS-2CE17D0T-IT5F or equivalent)
  • High-quality 2-megapixel sensor for crisp Full HD (1080P) imaging
  • Fixed focal lens options: 3.6mm (~80-90° horizontal FOV), 6mm (~50°), 8mm (~38°), or 12mm (~25°)—choose based on desired range vs. width (lens variant supplied as per kit)
  • Smart IR LEDs with up to 80 meters effective range for powerful, clear black-and-white night vision
  • One-port switchable output (TVI/AHD/CVI/CVBS) for versatile compatibility
  • IP67-rated weatherproof and dust-resistant bullet housing for durable outdoor performance
  • Digital Wide Dynamic Range (DWDR) and noise reduction for improved image quality in backlit or varying conditions
• 1 × 2TB SATA Hard Drive — Pre-installed in the DVR for plug-and-play, reliable storage with ample capacity for weeks of footage (depending on settings)
• 2 × 100m RG59 Coaxial Cables — High-quality cables for video transmission (200m total; suitable for initial runs or multiple shorter segments—additional cabling may be required for full 16-camera deployment)
• 32 × BNC Plugs — Extra connectors (often in packs of 3) for custom terminations, extensions, or repairs
• 16 × DC Plugs — Power connectors for secure attachment to each camera
• 1 × 12VDC 30A Power Supply — High-capacity, multi-output adapter to reliably power all 16 cameras

This complete analog Turbo HD kit prioritizes long-distance night vision, high storage capacity, and straightforward coaxial installation—ideal for users needing strong infrared reach and broad coverage without transitioning to a full IP system. Mount the bullet cameras, run the coaxial cables, connect power, and enjoy dependable, extended-range monitoring with remote access on your devices. A practical, professional-grade solution for large-scale or distant surveillance needs.
