Hikvision 1080P 8 Channel DVR & 8 Bullet Cameras DIY CCTV KIT

The Hikvision 1080P 8-Channel Turbo HD DVR & 8-Bullet Cameras DIY CCTV Kit provides an affordable, high-performance analog surveillance solution ideal for homes, small businesses, shops, or entry-level security needs. Leveraging Hikvision's reliable Turbo HD technology, this kit delivers crisp Full HD video over coaxial cabling with easy DIY installation—no professional installer required. The system features an 8-channel Digital Video Recorder (DVR) paired with eight 2-megapixel outdoor bullet cameras equipped with wide-angle 2.8mm fixed lenses for broad coverage of large areas like driveways, yards, storefronts, or perimeters. Setup is plug-and-play using pre-made cables, making it quick and user-friendly for anyone.

Key Benefits:

• True 1080P (1920 × 1080) high-definition resolution on all channels for sharp, detailed footage
• Ultra-wide 2.8mm lens on each camera offers expansive field of view (approximately 96.5° horizontal FOV) to monitor broad scenes without multiple units
• Built-in infrared (IR) illumination for clear nighttime visibility up to 20 meters in complete darkness
• Supports multiple analog formats (Turbo HD/TVI, AHD, CVI, CVBS) for flexible compatibility
• Motion detection, scheduled recording, and remote viewing via mobile apps, web browsers, or PC software for convenient anytime access
• Weather-resistant design suitable for reliable outdoor use

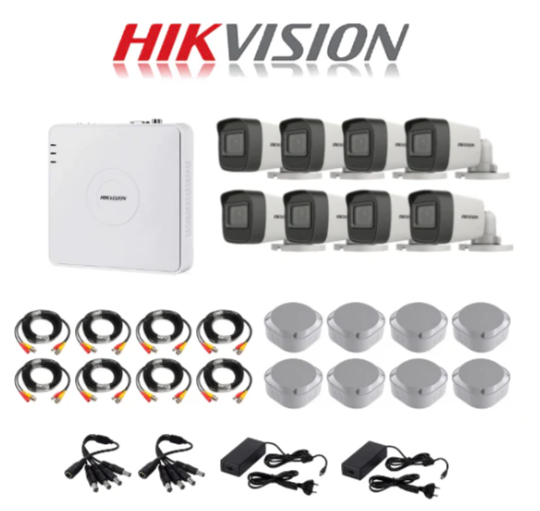

Kit Components:

• 1 × Hikvision 8-Channel Turbo HD DVR
  • Supports up to 8 analog camera inputs (HDTVI/AHD/CVI/CVBS compatible) with potential for limited IP camera expansion in select models
  • Efficient H.265/H.264 compression to optimize storage space and network usage
  • HDMI and VGA outputs for easy connection to a local monitor or TV
  • One SATA interface for installing a hard drive (HDD not included in this base kit; supports capacities up to 6-10 TB depending on model variant)
  • User-friendly interface with straightforward menu navigation for quick setup and operation
• 8 × Hikvision 2MP Bullet Cameras (Model: DS-2CE16D0T-EXIPF 2.8mm or equivalent)
  • High-quality 2-megapixel CMOS sensor for 1080P Full HD imaging
  • Fixed 2.8mm lens with wide horizontal FOV of ~96.5°, vertical ~48.9°, diagonal ~120.5° for maximum area coverage
  • Up to 20 meters IR range with smart IR for bright, even nighttime illumination without overexposure
  • Switchable video output (TVI/AHD/CVI/CVBS) via one-port flexibility
  • Digital Wide Dynamic Range (DWDR) for better handling of backlit or high-contrast scenes
  • Rugged IP67-rated weatherproof and dust-resistant plastic housing for dependable outdoor performance
  • Operating temperature range suitable for various climates (-40°C to 60°C)
• 8 × 20-Meter Pre-Made Connection Cables — Ready-to-use coaxial cables (typically RG59 with BNC connectors) integrating video and power for simple, long-distance runs
• 8 × Junction Boxes — Secure, protective enclosures for clean cable management and camera mounting
• 2 × 1-to-4 DC Power Leads — Splitters to distribute power efficiently to multiple cameras
• 2 × 5-Amp Power Supply Adapters — Stable, high-capacity adapters to power the full system reliably

This complete analog CCTV kit offers economical, no-fuss protection with wide-area monitoring and solid day/night performance. Simply add a compatible hard drive for recording, mount the cameras, connect the cables, and start securing your property. Remote access adds extra convenience, making it easy to monitor from anywhere—perfect for straightforward, budget-conscious security setups.
