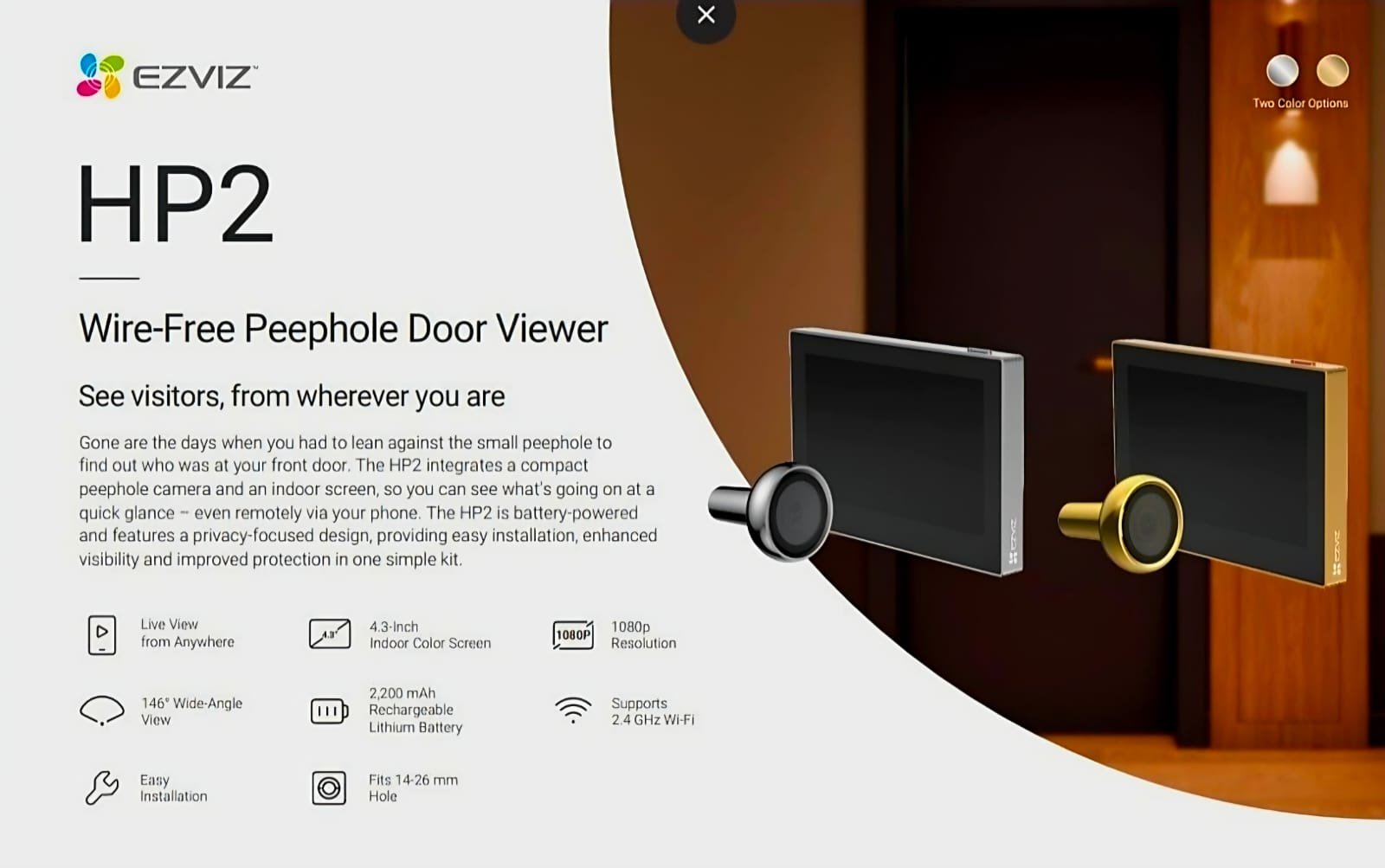

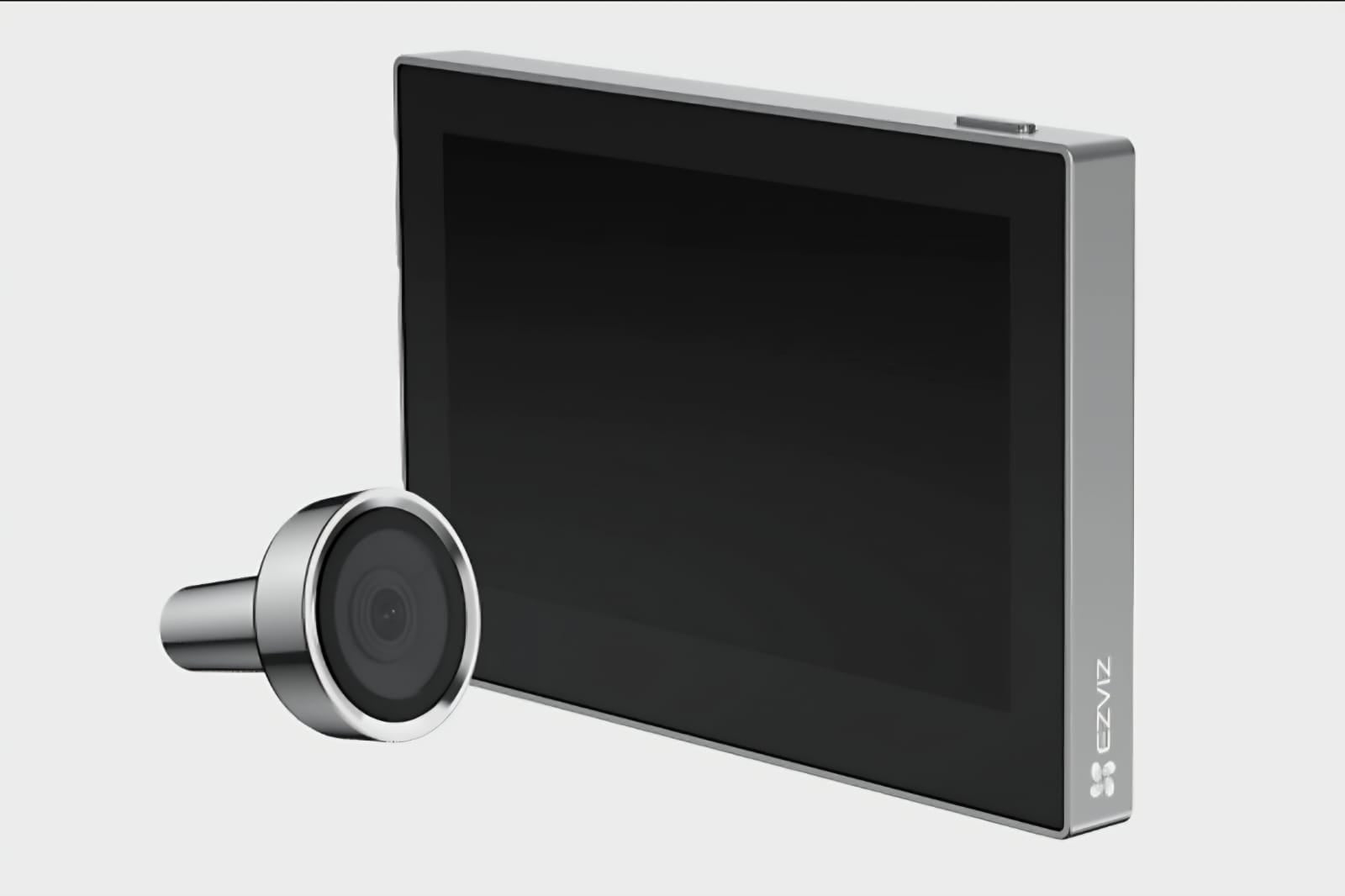

EZVIZ HP2 Wire-Free Peephole Door Viewer - 4.3" Display

See visitors from anywhere:

• No need to lean against the peephole to see who’s at your door.
• The HP2 combines a compact peephole camera with an indoor screen for quick viewing.
• View visitors remotely via your phone.
• Battery-powered and privacy-focused design.
• Easy installation, enhanced visibility, and improved security in one kit.

Easy Installation:

• Simple installation without complicated wiring or tools.
• Compatible with doors that have a suitable hole.
• Set up the door viewer quickly and independently.

Specifications:

Model:

• CS-HP2

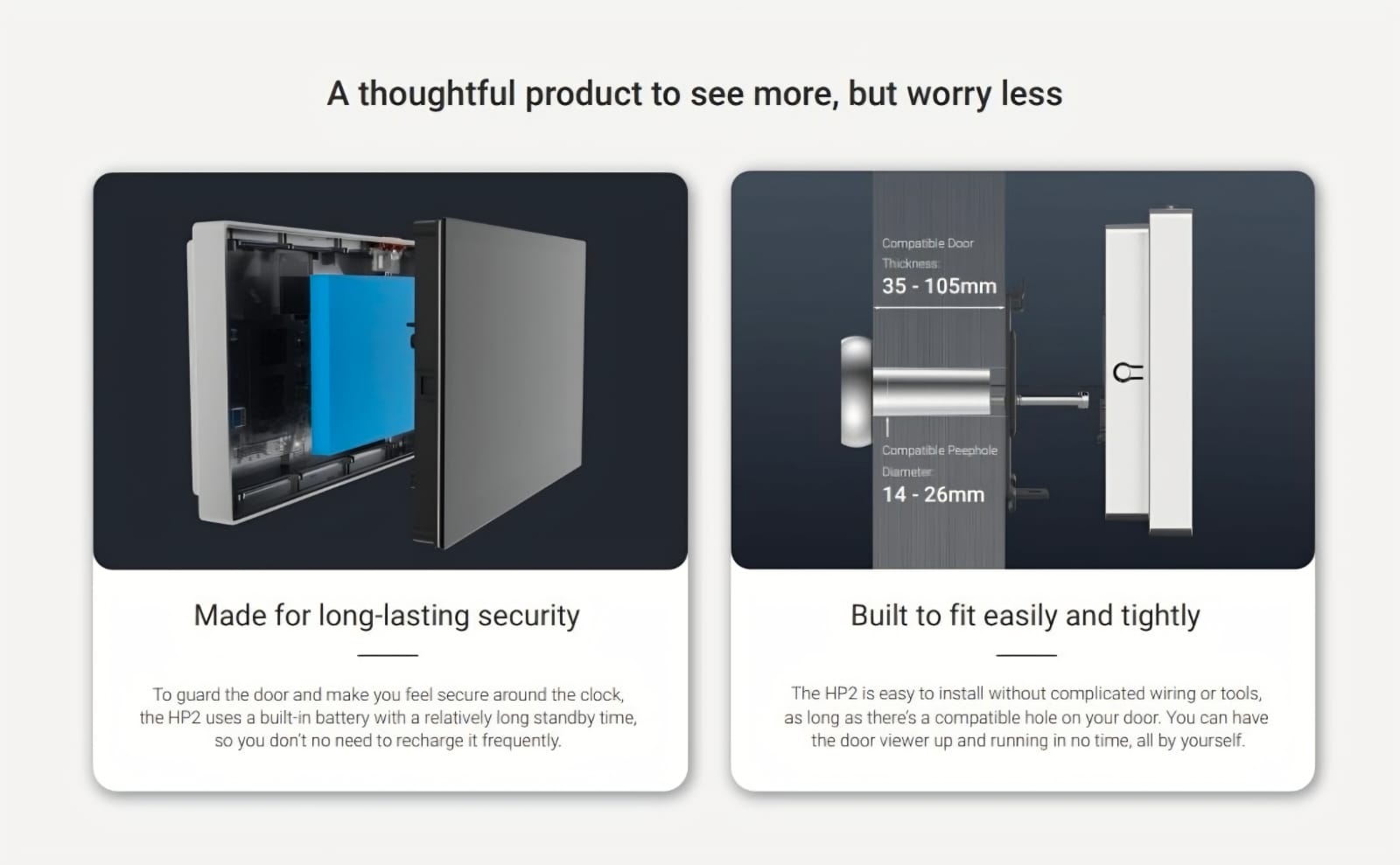

Installation Parameters:

• Supportive Hole Diameter: 14 to 26 mm (0.55 to 1.0 inch)
• Supportive Door Thickness: 35 to 105 mm (1.38 to 4.13 inch)

Camera Parameters:

• Sensor: 1/3" Progressive Scan CMOS
• Lens: 2.0 mm @ F1.6, with a visual angle (diagonal) of 146°
• Max Resolution: 1080p / 2MP
• Video Frame Rate: 15fps

Interface:

• Buttons:
  • Screen Wake-up Button
  • Reset Button
  • On/Off Button

Network:

• Protocol: EZVIZ Cloud Proprietary Protocol
• Video Viewing: Local and remote

General Functionality:

• Cloud video encryption and image encryption

Wireless:

• Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
• Frequency Range: 2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth: Supports 20 MHz
• Security:
  • 64/128-bit WEP
  • WPA/WPA2
  • WPA-PSK/WPA2-PSK
  • WPS
• Transmission Rate:
  • 11b: 11 Mbps
  • 11g: 54 Mbps
  • 11n: 150 Mbps

General Specs:

• Screen: 4.3-inch color screen
• Colors Available: Silver/Golden
• Operating Conditions: -10°C to 45°C (14°F to 113°F), Humidity: 95% or less (non-condensing)
• Power Supply: DC 5V (10%)
• Power Consumption: Max. 2W
• Dimensions:
  • Screen: 113 x 75 x 20 mm (4.45 x 2.95 x 0.97 inch)
  • Peephole: 32 mm Diameter (1.26 inch)
• Weight: 190g (6.7oz)

What's in the Box:

• 1 x Panel
• 1 x Camera
• 1 x Mounting Base
• 8 x Screws
• 1 x Power Cable
• 2 x Regulatory Information
• 1 x Quick Start Guide
