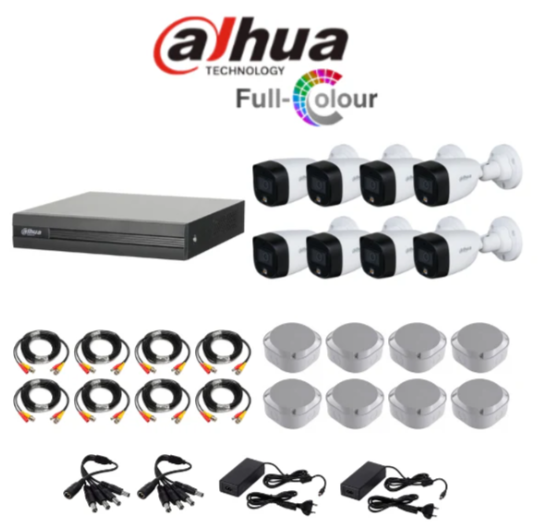

Dahua FULL COLOR 1080P 8 Channel DVR & 8 Bullet Cameras DIY CCTV KIT

The Dahua Full Color 1080P 8-Channel DVR & 8-Bullet Cameras DIY CCTV Kit is an economical, user-friendly analog surveillance package that stands out with its advanced Full Color technology for vibrant, detailed 24/7 color imaging—even in low-light or nighttime conditions. Built on Dahua's reliable HDCVI platform, this kit enables crisp Full HD video transmission over standard coaxial cables with true plug-and-play simplicity, making it perfect for DIY installation in homes, small businesses, retail shops, or entry points. No professional help needed—just connect the pre-made cables and power up for immediate protection.

Key Benefits:

• Full Color technology delivers vivid, full-color footage around the clock using warm white LED illumination (instead of traditional IR), capturing essential details like clothing colors, vehicle hues, or facial tones in minimal light for better identification
• 1080P (1920 × 1080) high-definition resolution across all channels for sharp, clear video suitable for evidence and monitoring
• Wide-angle fixed lens (typically 2.8mm or 3.6mm) on cameras provides broad coverage (often 90°+ horizontal FOV) to oversee large areas like driveways, yards, storefronts, or parking zones with fewer units
• Smart warm white light for effective nighttime color vision (illumination distance commonly 20-40 meters depending on model, with options to adjust or smart-activate to reduce light pollution)
• Multi-format support (HDCVI/AHD/TVI/CVBS) for easy compatibility and upgrades
• Motion detection, scheduled recording, and remote viewing via Dahua mobile apps, web browsers, or PC software for convenient access anytime, anywhere
• Weather-resistant outdoor cameras designed for reliable, year-round performance

Kit Components:

• 1 × Dahua 8-Channel DVR
  • Supports up to 8 analog camera inputs with auto-detection for HDCVI/AHD/TVI/CVBS signals
  • Efficient H.265/H.264 compression to optimize storage and extend recording time
  • HDMI and VGA outputs for simple connection to a monitor or TV
  • One SATA interface for adding a hard drive (HDD not included in this base kit; supports capacities up to 6-10 TB depending on model)
  • Intuitive interface with easy setup menus for quick configuration
• 8 × Dahua 2MP Full Color 1080P Bullet Cameras
  • High-quality 2-megapixel sensor for sharp Full HD (1080P) imaging
  • Fixed wide-angle lens (commonly 2.8mm or 3.6mm) for expansive field of view with low distortion
  • Full Color mode with built-in warm white LEDs for 24/7 colorful night vision (effective range typically 20-40 meters; smart control prevents overexposure or insect attraction)
  • IP67-rated weatherproof and dust-resistant housing for durable outdoor or exposed indoor use
  • Digital Wide Dynamic Range (DWDR) to manage backlit or high-contrast scenes effectively
  • Coaxial output with integrated power for straightforward, extended cable runs
• 8 × 20-Meter Pre-Made Connection Cables — Ready-to-use coaxial cables (typically RG59 with BNC connectors) combining video and power for simple, reliable installations
• 8 × Junction Boxes — Protective, weatherproof boxes for secure cable management, connections, and camera mounting
• 2 × 1-to-4 DC Power Leads — Efficient power splitters to distribute supply across multiple cameras
• 2 × 5-Amp Power Supply Adapters — Stable, high-capacity adapters to reliably power the entire system

This DIY analog CCTV kit prioritizes affordability, ease of setup, and standout low-light color performance—ideal for users wanting enhanced nighttime visibility without switching to full IP systems. Add a compatible hard drive for recording, mount the cameras, connect everything, and benefit from effective, wide-area security with remote monitoring capabilities. Perfect for straightforward, high-value protection in everyday environments.
