Dahua 8 Channel Hidden Pinhole DIY CCTV system

Dahua's reliable HDCVI system offers discreet indoor surveillance with pinhole lenses hidden inside PIR cube housings that mimic standard motion sensors—ideal for covert nanny cams, home security, small offices, or any scenario needing unobtrusive monitoring without obvious cameras.

The 8 x 2MP HDCVI PIR Cube Cameras feature a tiny pinhole lens concealed in a PIR-style enclosure for stealth placement. They deliver crisp 1080P (2MP) resolution with wide-angle coverage (typically 2.8mm or 3.6mm lens for ~90–110° horizontal FOV), motion detection via PIR + video for accurate triggering, and IR night vision (often up to 10–20m depending on model). The PIR design helps reduce false alarms from non-human movement while blending seamlessly into home or office decor.

The DH-XVR1B08 8-channel Penta-brid DVR supports H.265+/H.265 compression for efficient storage and bandwidth, full-channel AI-Coding for optimized performance, and hybrid inputs (HDCVI/AHD/TVI/CVBS + IP up to 2MP/6MP per channel, max ~10 IP total). It enables long-distance transmission over coax (up to 800m for 1080P), easy setup, and features like motion detection, smart search, and remote viewing via DMSS mobile app (iOS/Android) over internet (connect DVR to router).

A 500GB SATA HDD provides solid storage (typically 1–3 weeks of multi-channel 1080P recording, varying with settings and motion). The kit is true DIY with pre-made cables and plug-and-play connections—no professional installer required.

Perfect for discreet indoor protection where visible cameras aren't desired—get clear HD video, reliable motion-triggered recording, and remote smartphone access affordably.

Key Features:

• 2MP (1080P) high-definition resolution for sharp details
• Hidden pinhole lens in PIR cube housing for covert installation (indoor use)
• PIR + video motion detection for accurate alerts and storage efficiency
• H.265+/H.265 compression for longer recording times and lower bandwidth
• Supports HDCVI/AHD/TVI/CVBS/IP inputs with auto-detect
• Remote viewing via DMSS app (live, playback, alerts) – DVR needs internet connection
• Up to 500GB HDD for ample footage storage
• Easy DIY setup with pre-terminated 20m cables and power splitter

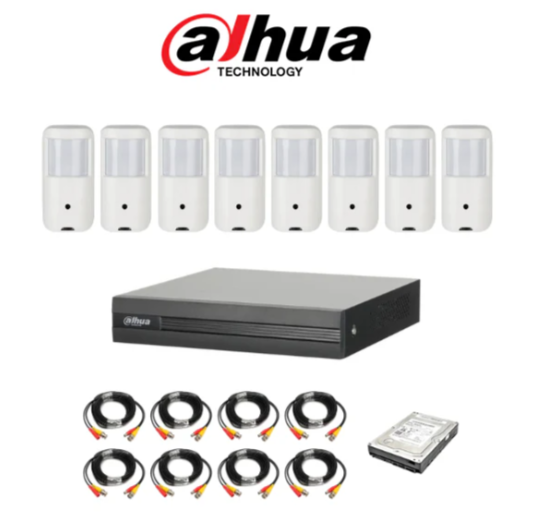

What's Included in the Kit:

• 1 × Dahua DH-XVR1B08 8-Channel Penta-brid DVR (supports up to 2MP/6MP IP)
• 8 × Dahua 2MP HDCVI PIR Cube Cameras (hidden pinhole, motion detection)
• 1 × 500GB Internal SATA HDD
• 8 × 20m Pre-made CCTV Cables
• 1 × 5A PSU Plug & Splitter Cable

Add your own monitor (HDMI/VGA) and connect to your network for mobile access. Discreet, effective hidden surveillance starts here—reliable Dahua quality for peace of mind!
