Dahua 16ch Full-Color HD Kit - HD DVR _ 16 x 1080p Full-Color cameras - 40m Full colour night vision - 1TB HDD - 100m Cable

The Dahua 16-Channel Full-Color HD HDCVI DIY CCTV Kit is a high-capacity, budget-friendly analog surveillance system that stands out with its Full-Color Starlight technology for bright, vivid 24/7 color imaging—even at night. Using warm white LED illumination instead of traditional infrared, this kit captures natural colors, clothing details, vehicle hues, and other vital information in low-light or zero-light conditions, making it ideal for large homes, medium businesses, retail shops, warehouses, parking areas, or commercial properties needing wide-area coverage and strong nighttime evidence quality. The coaxial-based setup keeps installation simple and cost-effective—no monitor included.

Key Benefits:

• Full HD 1080P (1920 × 1080) resolution across all 16 channels for clear, identifiable footage at up to 30 fps
• Full-Color Starlight with warm white LEDs provides bright, natural full-color night vision up to 40 meters (effective illumination distance often listed as 20–40 m depending on model variant and environment), delivering superior detail and color accuracy compared to standard IR cameras that switch to black-and-white
• Fixed wide-angle lenses (2.8 mm for expansive ~100–110° horizontal FOV or 3.6 mm for balanced view) to efficiently monitor large zones like perimeters, loading bays, storefronts, or open yards
• Multi-format support (HDCVI/CVBS/AHD/TVI switchable) for easy compatibility and future system flexibility
• Efficient H.265/H.264 compression optimizes the 1TB hard drive for extended continuous or motion-based recording
• Motion detection, scheduled recording, and remote viewing via Dahua mobile apps, web browsers, or PC software for convenient access from anywhere
• Rugged IP67-rated weatherproof and dust-resistant bullet cameras for reliable year-round outdoor or indoor use

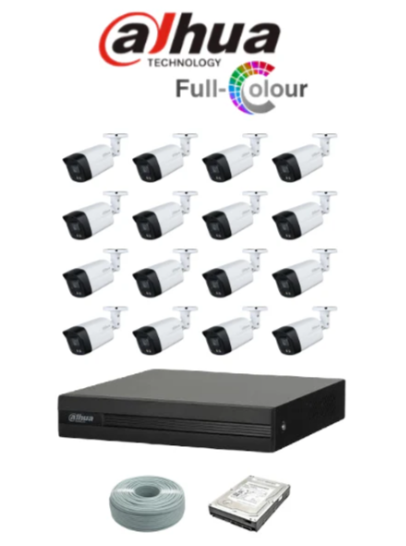

Kit Components:

• 1 × Dahua 16-Channel Penta-brid DVR (Model: DH-XVR1B16 or equivalent)
  • Supports up to 16 analog camera inputs with automatic multi-format detection (HDCVI/AHD/TVI/CVBS) and optional IP expansion
  • Efficient H.265/H.264 compression to maximize storage efficiency and recording duration
  • HDMI and VGA outputs for simple connection to a monitor or TV
  • One SATA interface with pre-installed 1TB hard drive for immediate continuous recording
  • User-friendly interface with easy menu navigation for quick setup
• 16 × Dahua 2MP Full-Color Starlight HDCVI Bullet Cameras
  • High-quality 2-megapixel sensor for sharp Full HD (1080P) imaging at up to 30 fps
  • Full-color starlight with F1.6 (or similar) aperture for excellent low-light performance and 24/7 vibrant color
  • Built-in warm white LEDs (effective range up to 40 meters in optimal conditions; commonly rated 20–40 m) for bright, natural nighttime illumination (smart/auto control to avoid overexposure)
  • Fixed lens options: 2.8 mm (wide-angle broad coverage) or 3.6 mm (as supplied or selected)
  • Switchable output (CVI/CVBS/AHD/TVI) via OSD for compatibility
  • IP67-rated weatherproof housing with ±30% voltage tolerance for stable, durable outdoor performance
• 1 × 1TB SATA Hard Drive — Pre-installed in the DVR for plug-and-play, reliable video storage
• 1 × 100m RG59 Coaxial Cable — High-quality cable for video transmission (suitable for initial runs; additional cabling may be needed for full 16-camera setup)
• 1 × 20A PSU Box — High-capacity power supply unit to reliably power all 16 cameras
• 16 × DC Plugs — Power connectors for secure camera attachments
• 32 × BNC Connections — Extra BNC connectors for custom terminations, extensions, or repairs

This comprehensive analog HDCVI kit prioritizes affordability, ease of setup, and standout 24/7 color performance—ideal for users who want enhanced nighttime visibility and evidence quality without switching to a full IP system. Mount the bullet cameras, run the coaxial cables, connect power, and enjoy wide-area, full-color monitoring with remote access on your devices. A practical, high-value choice for large-scale everyday security.
