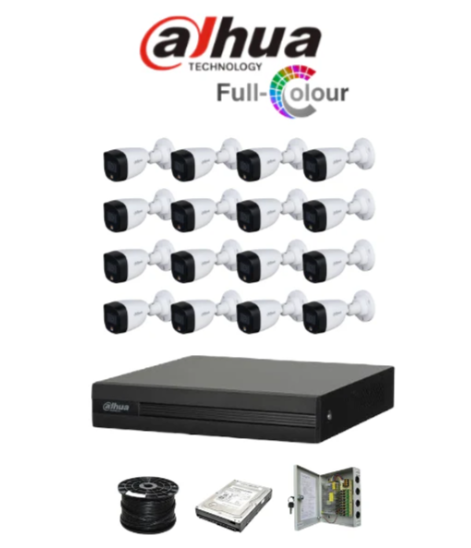

Dahua 16ch Full-Color HD Kit - HD DVR _ 16 x 1080p Full-Color cameras - 20m Full colour night vision - 1TB HDD - 100m Cable

The Dahua 16-Channel Full-Color HD DIY CCTV Kit is a powerful, cost-effective analog surveillance package featuring Dahua's Full-Color Starlight technology for vivid, detailed 24/7 color imaging—even in low-light or nighttime conditions. This kit uses warm white LED illumination to capture natural colors, clothing details, vehicle hues, and other key elements without switching to black-and-white mode, making it ideal for large homes, retail stores, warehouses, offices, or commercial properties requiring extensive coverage. It supports simple coaxial cabling for plug-and-play installation, long-distance transmission, and efficient compression—no monitor included.

Key Benefits:

• Crisp 2MP Full HD (1920 × 1080) resolution across all 16 channels for clear, identifiable footage
• Full-Color Starlight technology delivers true 24/7 colorful imaging with high low-light sensitivity (typically 0.01 Lux/F1.6 or better), backed by white light LEDs for bright, even nighttime color (effective range up to 20 meters)
• Fixed wide-angle lenses (2.8mm for broad FOV ~106° horizontal or 3.6mm for balanced view) to monitor large areas like perimeters, parking lots, shop floors, or entrances efficiently
• Multi-format support (HDCVI/CVBS/AHD/TVI switchable) for flexible compatibility and easy integration
• H.265+/H.265 compression in the DVR optimizes storage on the included 1TB drive, reducing bandwidth and extending recording times
• Motion detection, scheduled recording, and remote viewing via Dahua mobile apps, web browsers, or PC software for convenient access from anywhere
• Rugged IP67-rated weatherproof and dust-resistant bullet cameras for reliable outdoor or indoor use

Kit Components:

• 1 × Dahua 16-Channel DVR (Model: DH-XVR1B16 or equivalent)
  • Supports up to 16 analog camera inputs with adaptive multi-format detection (HDCVI/AHD/TVI/CVBS) and optional IP camera expansion
  • Efficient H.265+/H.265/H.264+/H.264 compression for reduced storage needs and longer recording
  • HDMI and VGA outputs (up to 1920 × 1080 resolution) for easy local monitor connection
  • One SATA interface with pre-installed 1TB hard drive for immediate continuous or motion-based recording
  • Compact 1U design with user-friendly interface for quick setup; supports long-distance coaxial transmission
• 16 × Dahua 2MP Full-Color Starlight HDCVI Bullet Cameras (Model: HAC-HFW1209CP-LED or equivalent)
  • High-quality 2-megapixel sensor for sharp Full HD (1080P) imaging at up to 30 fps
  • Full-color starlight with F1.6 aperture for excellent low-light performance and 24/7 vibrant color
  • Built-in white light LEDs (up to 20 meters) for bright, natural nighttime illumination (smart/auto control to avoid overexposure)
  • Fixed lens options: 2.8mm (wide-angle broad coverage) or 3.6mm (as supplied or selected)
  • 2D/3D noise reduction and DWDR for clean images in challenging lighting
  • Switchable output (CVI/CVBS/AHD/TVI) via OSD for versatile compatibility
  • IP67-rated weatherproof housing with ±30% voltage tolerance for durable, stable outdoor performance
• 1 × 1TB SATA Hard Drive — Pre-installed in the DVR for plug-and-play, reliable video storage
• 1 × 100m RG59 Coaxial Cable — High-quality cable for video transmission (suitable for initial runs; additional cabling may be needed for full 16-camera setup)
• 1 × 20A PSU Box — High-capacity power supply unit to reliably power all 16 cameras
• 16 × DC Plugs — Power connectors for secure camera attachments
• 32 × BNC Connections — Extra BNC connectors for custom terminations, extensions, or repairs

This complete analog HDCVI kit combines extensive coverage, standout nighttime color performance, and straightforward installation—perfect for users seeking professional-grade visibility and evidence quality without a full IP system. Mount the bullet cameras, run the coaxial cables, connect power, and benefit from detailed 24/7 colorful monitoring with remote access on your devices. A robust, value-driven solution for large-scale, no-fuss security.
