Dahua 16 Channel 5MP CCTV system | Audio | 100m RG59 | 1TB

The Dahua 16-Channel 5MP WizSense HDCVI DIY CCTV Kit is a high-performance, intelligent analog surveillance package offering sharp 5-megapixel resolution, advanced AI features for reduced false alarms, and built-in audio recording. This kit leverages Dahua's WizSense technology—including SMD Plus for accurate human/vehicle detection, perimeter protection with tripwire/intrusion alerts, and QuickPick 2.0 for efficient target search—making it ideal for medium to large setups like homes, businesses, warehouses, retail spaces, or perimeters. With 16 audio-enabled Starlight cameras, efficient H.265+ compression, and simple coaxial installation, it delivers reliable Full HD+ coverage with sound evidence—no monitor included.

Key Benefits:

• Crisp 5MP (2880 × 1620 or 16:9 aspect) resolution on all 16 analog channels for detailed, high-clarity footage (supports up to 25 fps@5MP in compatible modes)
• Starlight technology provides excellent low-light color performance (typically 0.005 Lux/F1.6 or better), enhanced by Smart IR for clear black-and-white nighttime visibility up to 30 meters without overexposure
• Built-in microphone (-A variant) on each camera enables high-quality audio recording over coaxial cable—no extra wiring required—for added context like conversations or ambient sounds
• WizSense AI features: 16-channel SMD Plus (human/vehicle detection to trigger accurate alarms), 4-channel perimeter protection (tripwire/intrusion with AI-powered accuracy), 2-channel face recognition (for face comparison), and 2-channel QuickPick 2.0 for fast target retrieval during playback
• Full-channel AI Coding optimizes storage and bandwidth while preserving target details; supports Smart H.265+/H.265 dual-stream compression
• Multi-format input (HDCVI/AHD/TVI/CVBS/IP) with up to 24-ch IP expansion (each up to 6MP, 128 Mbps incoming bandwidth) for hybrid flexibility
• Wide-angle fixed lens (3.6mm standard for ~80-90° horizontal FOV; 2.8mm optional for broader ~100-110° coverage) to monitor expansive areas efficiently
• Motion detection, scheduled recording, IoT/POS integration, and remote viewing via Dahua mobile apps, browsers, or PC software for convenient access
• Rugged IP67-rated weatherproof and dust-resistant bullet cameras for dependable outdoor or indoor use

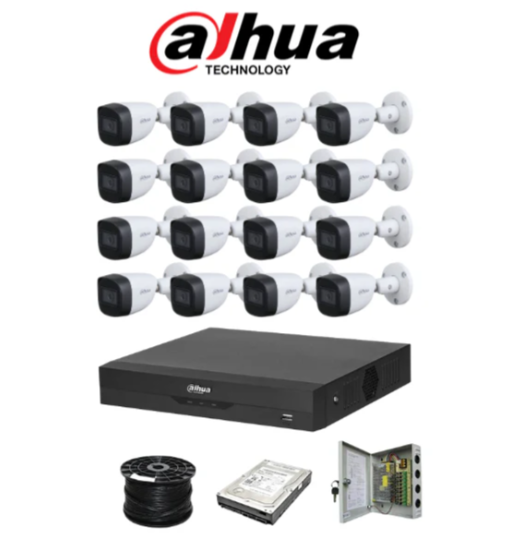

Kit Components:

• 1 × Dahua 16-Channel WizSense Penta-brid DVR (Model: XVR5116HS-I3 or equivalent)
  • Supports up to 16 analog inputs (HDCVI/AHD/TVI/CVBS) plus up to 24 IP channels (up to 6MP each)
  • Advanced AI: 16-ch SMD Plus, 4-ch perimeter protection, 2-ch face recognition, 2-ch QuickPick 2.0, full-channel AI Coding
  • Efficient H.265+/H.265/H.264 compression for reduced storage/bandwidth needs
  • HDMI/VGA outputs for local display
  • One SATA interface with pre-installed 1TB hard drive for immediate recording
  • Compact 1U design with intuitive interface for quick setup
• 16 × Dahua 5MP Starlight HDCVI IR Bullet Cameras (Model: HAC-HFW1500CM(-A) or equivalent, S2 series)
  • High-quality 5-megapixel (2880 × 1620) sensor for sharp imaging at up to 25 fps@5MP (16:9)
  • Starlight low-light performance with Smart IR up to 30 meters for clear nighttime footage
  • Built-in microphone (-A) for audio over coaxial
  • Fixed lens: 3.6mm standard (broad ~80-90° horizontal FOV; 2.8mm optional for wider view)
  • Switchable output (CVI/CVBS/AHD/TVI) via OSD for compatibility
  • 2D/3D noise reduction, DWDR for balanced images in varying lighting
  • IP67-rated weatherproof metal housing with DC12V power
• 1 × 1TB SATA Hard Drive — Pre-installed in the DVR for plug-and-play, reliable storage
• 1 × 20A PSU Box — High-capacity power supply unit to reliably power all 16 cameras
• 1 × 100m RG59 Coaxial Cable — Quality cable for video/audio transmission (suitable for initial runs; additional cabling may be needed for full setup)
• 32 × BNC Connections — Extra BNC connectors for custom terminations or repairs
• 16 × DC Plugs — Power connectors for secure camera attachments

This complete HDCVI kit combines 5MP clarity, smart AI detection to minimize false alarms, built-in audio, and easy analog installation—perfect for users seeking enhanced evidence quality, intelligent alerts, and scalable coverage without a full IP network. Mount the bullet cameras, run the coaxial cables, connect power, and enjoy detailed video with sound plus remote access on your devices. A professional, value-packed solution for comprehensive security.
