Dahua 1080P 8 Channel DVR & 8 Bullet Cameras DIY CCTV KIT

The Dahua 1080P 8-Channel DVR & 8-Bullet Cameras DIY CCTV Kit is a practical, budget-friendly analog surveillance package designed for easy self-installation and reliable performance in homes, small shops, offices, or light commercial settings. Utilizing Dahua's proven HDCVI (High Definition Composite Video Interface) technology, this kit delivers crisp Full HD 1080P video over standard coaxial cabling with plug-and-play simplicity—no complex networking required. The system includes an 8-channel Digital Video Recorder (DVR) and eight 2-megapixel outdoor bullet cameras, typically featuring wide-angle lenses for broad coverage of areas like driveways, yards, entrances, or retail spaces.

Key Benefits:

• True 1080P (1920 × 1080) high-definition resolution on all channels for clear, detailed footage suitable for identification
• Wide-angle fixed lens (commonly 2.8mm) on cameras provides expansive field of view (often around 100°+ horizontal) to monitor large areas efficiently
• Built-in infrared (IR) night vision for effective low-light monitoring, typically up to 20-30 meters in darkness with Smart IR to avoid overexposure
• Multi-format support (HDCVI, AHD, TVI, CVBS) for flexible compatibility and future upgrades
• Motion detection, scheduled recording, and remote viewing via mobile apps, web browsers, or PC software for convenient access from anywhere
• Weather-resistant outdoor cameras built for reliable year-round use

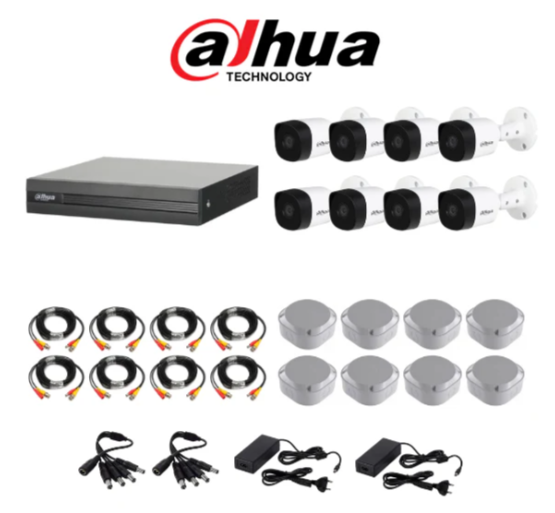

Kit Components:

• 1 × Dahua 8-Channel DVR
  • Supports up to 8 analog camera inputs with auto-detection for HDCVI/AHD/TVI/CVBS signals
  • Efficient H.265/H.264 compression to maximize storage efficiency and reduce bandwidth needs
  • HDMI and VGA outputs for straightforward connection to a monitor or TV
  • One SATA interface for adding a hard drive (HDD not included in this base kit; supports capacities up to 6-10 TB depending on model)
  • User-friendly interface with easy menu navigation for quick setup and configuration
• 8 × Dahua 2MP 1080P Bullet Cameras
  • High-quality 2-megapixel CMOS sensor for sharp Full HD (1080P) imaging
  • Fixed wide-angle lens (typically 2.8mm) offering broad coverage with minimal distortion
  • Infrared illumination for clear black-and-white nighttime footage in low-light or zero-light conditions (effective range commonly 20-30 meters with Smart IR)
  • IP67-rated weatherproof and dust-resistant housing for dependable outdoor installation
  • Digital Wide Dynamic Range (DWDR) to handle backlit or high-contrast scenes effectively
  • Coaxial video output with power integration for simple, long-distance cabling
• 8 × 20-Meter Pre-Made Connection Cables — Ready-to-use coaxial cables (usually RG59 with BNC connectors) that combine video and power for hassle-free runs
• 8 × Junction Boxes — Protective enclosures for secure cable connections, weatherproofing, and neat camera mounting
• 2 × 1-to-4 DC Power Leads — Power splitters to efficiently distribute supply to multiple cameras
• 2 × 5-Amp Power Supply Adapters — Reliable adapters providing stable power for the complete system

This DIY analog CCTV kit emphasizes simplicity and affordability, making it an excellent entry-level choice for users wanting wide-area protection without professional installation. Add a compatible hard drive for recording, mount the cameras, connect the cables, and enjoy straightforward, effective security with remote monitoring capabilities—ideal for basic yet dependable surveillance needs.
