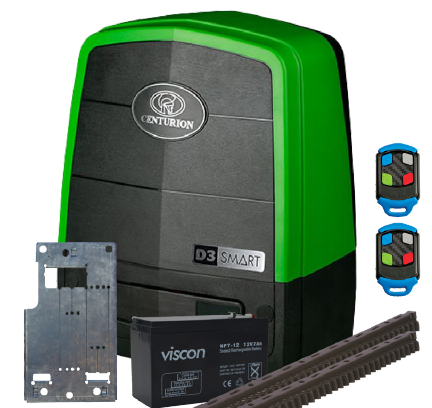

Centurion D3 SMART Sliding Gate Motor Kit (2 x Tx4, Rack, Battery, Base Plate)

The Centurion D3 SMART is a compact, intelligent sliding gate motor ideal for residential or light commercial gates up to 300kg and 4m wide. This complete kit includes everything needed for a reliable, secure installation with smart features, fast operation, and backup power.

Kit Contents:

• 1 × D3 SMART Sliding Gate Motor (24V DC)
• 2 × Tx4 4-Button Remotes (433MHz rolling code)
• 2m Galvanized Rack (modular, extendable)
• 1 × 7Ah 12V Battery (backup power)
• 1 × Base Plate (mounting foundation for motor)
• Mounting hardware, brackets, and manual

Key Features:

• Rapid Operation — Opens/closes at up to 250mm/sec (adjustable); full open/close in ~12–18 seconds for 4m gate
• SMART Controller — Intelligent speed control, smooth acceleration/deceleration, collision sensing via electronic limits
• Battery Backup — Built-in charger + 7Ah battery included; maintains operation during power failures (up to several cycles)
• Secure Rolling Code — Tx4 remotes with multi-user support (up to 64 buttons); anti-cloning protection
• Advanced Safety — Built-in obstacle detection (via current sensing), optional infrared beams/photocells (not included)
• Multiple Inputs — Free-exit loop, intercom, keypad, timer, holiday lockout, auto-close (adjustable)
• Durable Build — IP55 weather-resistant enclosure; heavy-duty gearbox and motor for 100% duty cycle
• Easy Setup — Menu-driven LCD display on controller for programming; quick limits setup with auto-learn
• Integration — Compatible with Centurion remotes, keypads, proximity readers, GSM modules, or third-party access control

Quick Specs:

• Model: D3 SMART (D3-4)
• Gate Mass: Up to 300kg
• Gate Length: Up to 4m (recommended)
• Power Supply: 220–240V AC + 12V 7Ah battery backup
• Motor Voltage: 24V DC
• Duty Cycle: 100% (continuous use)
• Operating Temp: -20°C to +50°C
• Enclosure: Weather-resistant steel
• Extras: 2m rack (extendable), 2 × Tx4 remotes, base plate for secure mounting

This popular D3 SMART kit offers fast, secure, and smart sliding gate automation—widely trusted in South African homes and complexes for reliability and ease of use.
